Which of the following is the most important limitation of direct shear test?

Which of the following is a disadvantage of the shear box test? Explanation: The stress condition across the soil sample is very complex. The distribution of normal stresses and shearing stresses over the potential surface of sliding is not uniform. The entire strength of the soil is not mobilized simultaneously.

What are the advantages and disadvantages of direct shear test?

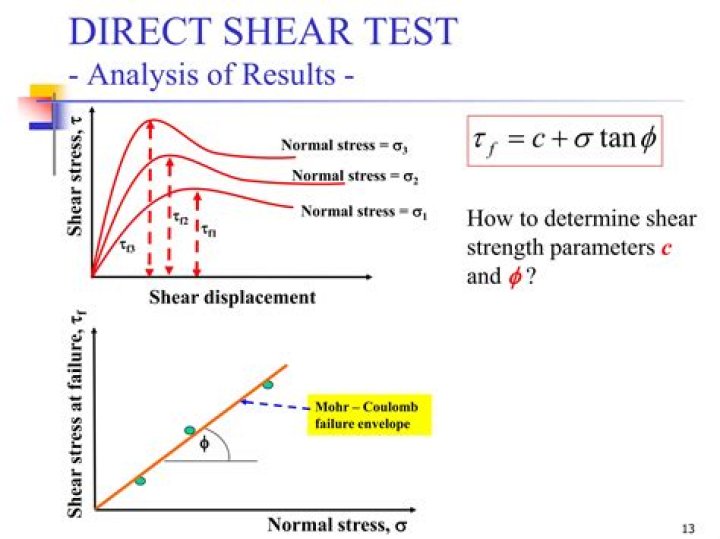

3. Advantages and Disadvantages of Direct Shear Tests. The continual decrease in the contact surface of the two halves during the test produces a small error on the shear and normal stress and affects the Mohr-Coulomb failure envelope. This error is generally ignored.

What are the disadvantages of the direct shear test as compared to triaxial test?

Direct test is simple but triaxial is comparatively complicated. is difficult to control drainage conditions in direct test but it can be done in triaxial. 3. pore water pressure can not be measured in direct test but it can be done in triaxial.

What is the use of direct shear test?

The purpose of a direct shear test is to determine the shear strength of a soil; this is done by forcing the soil to shear along an induced horizontal plane of weakness at a constant rate.

Which of the following is disadvantage of direct shear test?

Question: The direct shear test suffers from the following disadvantage: 1 Drain condition cannot be controlled. 2 Pore water pressure cannot be measured. 3 Shear stress on the failure plane is not uniform.

Which is the failure plane in direct shear test?

In the shear box test, the specimen is not failing along its weakest plane but along a predetermined or induced failure plane i.e. horizontal plane separating the two halves of the shear box. This is the main draw back of this test.

What are the advantages of the triaxial comp test over the direct shear test?

The triaxial test has many advantages over the direct shear test: The soil samples are subjected to uniform stresses and strains. Different combinations of confining and axial stresses can be applied. Drained and undrained tests can be carried out.

What is the difference between direct shear test and triaxial shear test?

These two devices have apparent differences in the stress condition that is developed in the specimen during the test. The main differences are failure plane and principal stress. In direct shear device the failure plane has pre-assigned location, whereas in triaxial device the failure plane is uncertain.

What are the factors affecting shear strength of soil?

The shear strength of soil depends on the effective stress, the drainage conditions, the density of the particles, the rate of strain, and the direction of the strain.

How is triaxial test more effective for the analysis of shear strength of soil sample than direct shear test?

In direct shear test, we can’t control drainage conditions and can’t measure pore water pressure. However, in triaxial test, the failure plane is not forced, soil can fail on any weak plane or it simply bulge.

What is the difference between direct shear test and simple shear test for soil testing?

In these two tests, different shearing conditions are applied to soil samples. For the direct shear test, shearing occurs at a predetermined center of the specimen which may not be the weakest plane of the soil while indirect simple shear, the entire specimen distorts without the formation of single shearing surface.

What is the major point that the direct shear test differs from the other two shear test?

This means the shear strength determined from this test should be more representative of the material and soil conditions. The other main difference between the two test types is the direct shear test will maintain a constant vertical stress on the sample during shearing allowing the sample to change height and volume.

What is the importance of shearing testing in process design and quality control?

Shear is the force that causes two touching parts of the same body to slide parallel to their plane of contact. Testing a material’s shear strength is important, as it determines your choice of tooling, ease of processing and product quality.

Is a direct shear test drained or undrained?

The Direct Shear Test is used for determination of the consolidated drained (or undrained) shear strength of soils. The test is performed by deforming a specimen at a controlled rate on or near a single shear plane.

Which type of soil is used for direct shear test?

This test can be performed in three different drainage conditions namely unconsolidated-undrained, consolidated-undrained and consolidated-drained conditions. In general, cohesionless soils are tested for direct shear in consolidated drained condition.

Which of the following Cannot be obtained by using UN drained test?

4. Which of the following cannot be obtained by using un-drained test? Explanation: Since only one Mohr circle in terms of effective stresses, is obtained from all un-drained tests, effective stress failure envelope cannot be obtained from this test.

In which of the test failure plane is predetermined?

Assertion (A): In the box shear test, the failure plane is predetermined and horizontal.

How does pore pressure effect shear strength Why?

The reduction in the shear strength will increase gradually as the shaking continues due to the gradual increase in the buildup of the excess pore water pressure. At a certain level of shaking, the soil mass will liquefy and could be considered as a viscous fluid.
