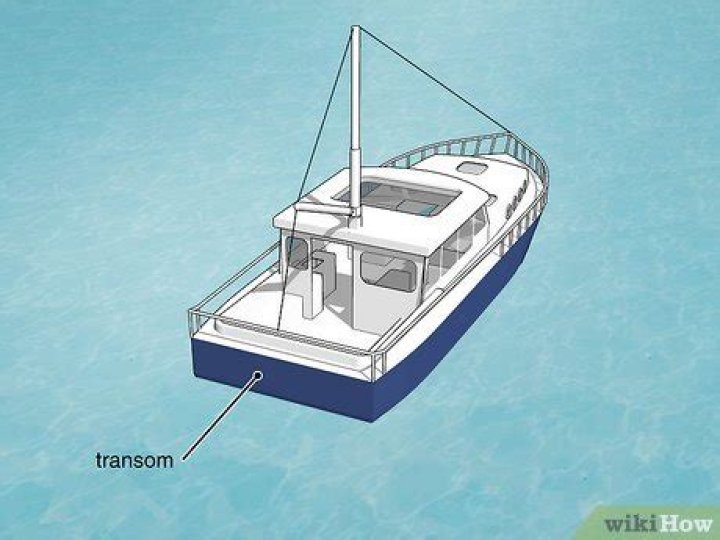

Where on board a boat is the transom located?

Transom. The transom is the area of the boat where the motor is attached. The transom is located on the stern of the boat and is typically made of metal on pontoon boats.

What is a transom mount on a boat?

In short, a transom mount is a trolling motor which mounts to the transom of a boat. These motors thrust the boat from the rear. In contrast, a bow mount which pulls the boat through the water. These motors are typically affordable, easy to install, and simple to operate.

Where is the transom on an outboard motor?

The transom is the flat vertical section at the rear of the boat. It is where the outboard is mounted, and some boat owners place the name of the boat. The height of the transom is calculated by measuring from the bottom of the hull to the top of the transom, using the center line.

What side of the boat is port side?

When looking forward, toward the bow of a ship, port and starboard refer to the left and right sides, respectively. In the early days of boating, before ships had rudders on their centerlines, boats were controlled using a steering oar.

Do all boats have a transom?

Virtually every kind of modern vessel has a transom. Watercraft that utilize this design feature include speedboats, houseboats, fishing vessels, cargo ships, warships, and (of course) sailboats. Transoms are common because they simplify the construction process of boats and ships.

What is the difference between bow mount and transom mount?

While bow mounts require that a plate be drilled on the bow of the boat, transom mounts easily attach to the boat’s stern with a simple clamp. Transom mounts are also much easier to operate from the back of the boat, and don’t clutter up the deck with foot pedals or cords as bow mount motors often do.

What is the transom of an outboard motor?

A transom is a vertical reinforcement used to strengthen the stern of a boat. When you look at the rear of modern boats, you will see a thick, flat surface at the back, just before the motor (if present).

What happens when outboard is mounted too high?

Too high usually results in low water pressure, prop letting go in turns, or lack of bow lift are usually the telltale signs. Sometimes porpoising is caused by too much bow lift and dropping the motor will give it more bite and make it worse.

What happens if outboard is mounted too low?

If the outboard is too low, it creates excessive drag, which cuts into speed and fuel efficiency. If it’s too high, the propeller tends to ventilate, losing its bite on the water and blowing out while turning and in steep seas.

Are transom savers needed?

the correct answer is,yes,you need a transom saver. even though boats are designed to flex and move in the water,they are not designed to be rigidly mounted to a trailer with a motor bouncing on the back that is flexing and stressing the transom with every bounce.

Are transom savers worth it?

If you can trim your engine all the way down when towing, you very well might not need a transom saver or motor support. However, if the lower unit of your outboard engine is too close to the ground when trimmed down, your engine is at high risk of damage during trailering.

What’s a transom saver?

The transom saver is a device that protects your boat’s transom from stress or eventual damage from forces exerted on it by the weight of the outboard while you are trailering it. It is a bar that extends from the outboard to your trailer.

Why is port red and starboard green?

Red is the international convention for the port side, while green is the colour for the starboard side. Also, this colour code systems aids in preventing collisions when there is a lack of light. Without clear visibility, it can be difficult to judge whether a vessel is approaching or heading away from your ship.

Why is port left?

The left side is called ‘port’ because ships with steerboards or star boards would dock at ports on the opposite side of the steerboard or star. As the right side was the steerboard side or star board side, the left side was the port side. Namely, the old English name for the port side sounded like ‘backboard’.

What are the 4 sides of a boat?

Now let’s learn the words for the front, rear, left and right sides of the boat.
The front of a boat is called the bow, while the rear of a boat is called the stern.When looking towards the bow, the left-hand side of the boat is the port side.And starboard is the corresponding word for the right side of a boat.
