Where is the OBD port on a 2009 Honda Accord?

OBD connector location for Honda Accord 8 (2007 – 2015)

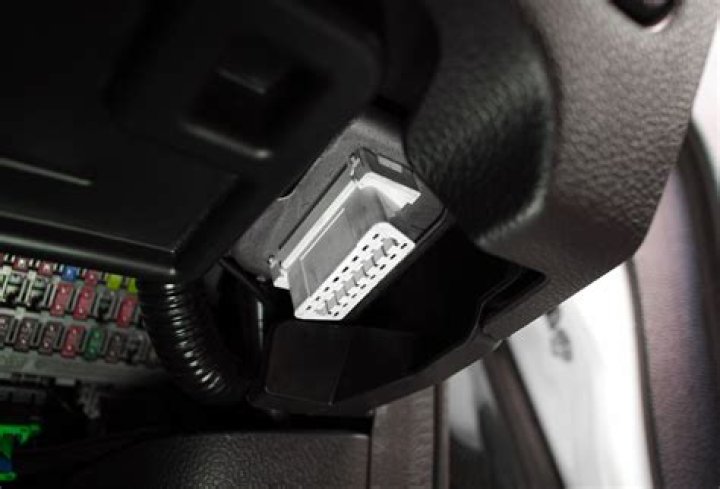

The OBD2 socket is located under the steering wheel in the fuses box.OBD socket is near the hood lever.You can see the diagnostics port near the fuses.

Where is the OBD connector located?

The most common place to find your car’s OBD2 port is under the dashboard on the driver’s side. Most vehicles have the connector under the instrument panel (aka, the dashboard) on the driver’s side, but some can be found near the center console area or even on the passenger’s side of the car.

Where is the DLC located?

The OBD II DLC is usually located under the instrument panel on the driver side, though there are several exceptions. The OBD-II connector is required to be within 2 feet of the steering wheel (unless an exemption is applied for by the manufacturer, in which case it is still somewhere within reach of the driver).

What is code ISO 9141?

ISO 9141. The ISO 9141 standard refers to the communication protocol used by DaimlerChrysler, Honda, and Toyota. This protocol has been used since 1996. With the ISO 9141 protocol, each bit of information is 96 us long and has two voltage levels to represent a logic 0 or 1.

Is a 95 civic obd2?

The 95 has the OBD1 system. There is a two-wire plug used only to activate the blinking CEL codes (and set timing) and a 3 wire plug with a proprietary Honda serial data format.

Where is the obd2 on a 2006 Honda Civic?

The 2006 Honda Civic OBD port location can be found under the pedals to the right in the driver’s side footwell. The OBD port will allow You to connect a diagnostic tool to the vehicle and get fault errors. This will allow You to pinpoint the problems with Your vehicle if You have any issues with the vehicle.

How can I get my Honda Pilot code without a scanner?

How To Check Engine Light Codes Without A Scanner (Step-By-Step)
Step 1: Turn The Ignition Key. Step 2: Check Your Dashboard. Step 3: Note And Interpret The Check Engine Codes. Step 1: Odometer Reset. Step 2 (Optional): Odometer Reset And Multiple Ignition Key Flips. Step 3 (Alternative): Use A Paper Clip Or Jumper Wire.

How many obd2 ports does a car have?

The OBD-II on-board computer features a 16-pin port located under the driver’s side dash. It allows a mechanic or anyone else to read the error code using a special scan tool.

What is OBD1?

The acronym refers to On-Board Diagnostics. Basically, it defines a vehicle’s capability to diagnose, or report itself. With OBD1, the goal was to develop a diagnostics system which focuses on the emission control systems of a vehicle.

What is a OBD-II port?

The On-Board Diagnostics II (OBD-II) port is used to access the vehicle’s computer for various tasks, such as emissions tests and diagnostics. The OBD-II port is where the Hum System is installed so that the network can communicate with the vehicle directly.

Are all OBD2 ports the same?

All OBD-II pinouts use the same connector, but different pins are used with the exception of pin 4 (battery ground) and pin 16 (battery positive).

What type of connectors are the DLC on all HD OBD?

OBD-II Connector: Modern OBD systems use standardized DLCs called Type 2 Connectors. This allows technicians to use the same cable, a Type 2 Cable, to access the digital communications stored in the OBD system through a port.

How many pins does an OBD2 connector have?

Each protocol uses different pins to communicate with external scan tools. Some pins are mandatory, and some are optional, depending on the vehicle’s protocol. The connector may have other pins populated that are unimportant. The OBD II connector has 16 pin locations which are numbered as shown below.
