Where are overhanging beams used?

Overhanging beams are those with two supports, but unlike simply supported beams, one of the supports is not at the end of the member. A typical example of this is a balcony which is being extended from a frame structure.

Where are overhanging beams used?

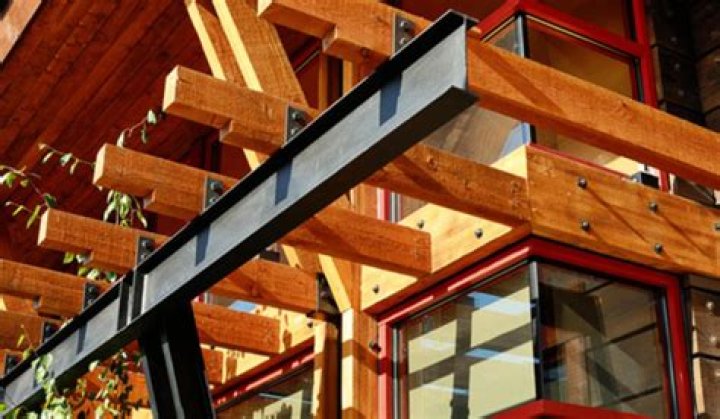

An overhanging beam is used where it is not practical to provide a support to the beam at one end. You will frequently encounter overhanging beams in a floor beam which extends beyond the exterior wall of a building to support a balcony. It is also used to support roof extensions as in the picture below.

What is an overhanging beam?

Overhanging: A simple beam extending beyond its support on one end. • Double overhanging: A simple beam with both ends extending beyond its supports. • Continuous: A beam extending over more than two supports.

What is overhanging support?

An overhanging beam is defined as a beam, which is freely supported at two points and having one or both ends extending beyond these supports. Mostly in the overhanging beam one support is hinge support while is roller support having one end as free like as cantilever.

What is the use of cantilever beam?

Cantilevers provide a clear space underneath the beam without any supporting columns or bracing. Cantilevers became a popular structural form with the introduction of steel and reinforced concrete. They are used extensively in building construction, notably in: Cantilever bridges.

How many supports are there in overhanging beam?

The beam which has two different support and extended up to some distance at one of the end or both ends of the beam is known as an overhanging beam. The end of extended side of beam does not have any support.

What is the difference between a cantilever and a beam?

As nouns the difference between beam and cantilever

is that beam is any large piece of timber or iron long in proportion to its thickness, and prepared for use while cantilever is (architecture) a beam anchored at one end and projecting into space, such as a long bracket projecting from a wall to support a balcony.

What is the example of fixed beam?

Anything that is more or less horizontal and is not supported at both extremes in order to avoid falling, could be considered a fixed beam. If you mean fixed at both ends, then we can find more examples: A walking bridge between two buildings. The section of any bridge that is located between two contiguos supports.

What is a point load example?

A point load is a force that is applied to a concentrated point on the support. An example would be a person standing at the free end of a diving board.

How do you calculate cantilever beams?

If more than one point load and/or uniform load are acting on a cantilever beam – the resulting maximum moment at the fixed end A and the resulting maximum deflection at end B can be calculated by summarizing the maximum moment in A and maximum deflection in B for each point and/or uniform load.

What is uniformly distributed load?

A uniformly distributed load (UDL) is a load that is distributed or spread across the whole region of an element such as a beam or slab. In other words, the magnitude of the load remains uniform throughout the whole element.

What are the types of support?

Different types of external supports are as follows:
Fixed support.Pinned support or hinged support.Roller support.Rocker support.Link support.Simple support.

What do you mean by bending moment?

In solid mechanics, a bending moment is the reaction induced in a structural element when an external force or moment is applied to the element, causing the element to bend. The most common or simplest structural element subjected to bending moments is the beam.

Which of the following is an example of cantilever beam?

Cantilevers are widely found in construction, notably in cantilever bridges and balconies (see corbel). In cantilever bridges, the cantilevers are usually built as pairs, with each cantilever used to support one end of a central section. The Forth Bridge in Scotland is an example of a cantilever truss bridge.

Where are cantilever slabs used?

Cantilever slabs are common features in buildings due to the need to have bigger spaces at upper floors. To achieve this, architects normally extend the slab beyond the ground floor building line, thereby forming a cantilever.

What is cantilever principle?

cantilever, beam supported at one end and carrying a load at the other end or distributed along the unsupported portion. The upper half of the thickness of such a beam is subjected to tensile stress, tending to elongate the fibres, the lower half to compressive stress, tending to crush them.
