What thickness is 19 32 plywood?

Sheathing Plywood (Common: 19/32 in. x 4 ft. x 8 ft.; Actual: 0.563 in.

What is a 15 32 plywood?

The reason un-sanded plywood, such as sheathing, is described as 15/32-in. thick is to reflect the manufacturer’s tolerance of 1/32 inch, even though in layman’s terms the sheet is equivalent to a 1/2-in. sheet of plywood.

What thickness is 11 32 plywood?

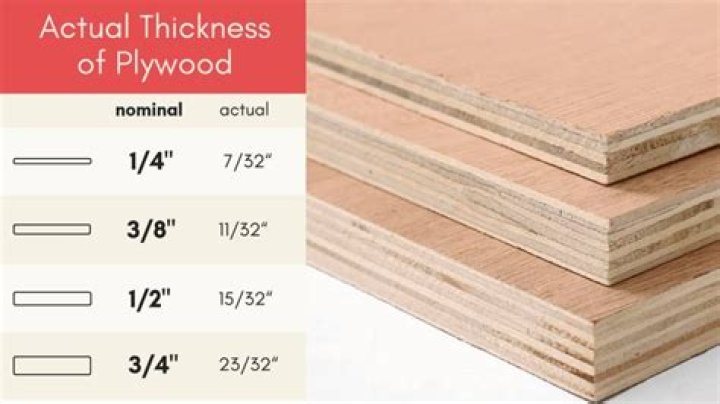

Thus, a plywood sheet with a nominal thickness of 3/8 inch is actually 11/32 inch thick.

Osb is stronger than plywood in shear. Shear values, through its thickness, are about 2 times greater than plywood. This is one of the reasons osb is used for webs of wooden I-joists.

What are the thicknesses of plywood?

The most common thickness of plywood is 1/2-inch, but plywood thickness can range from 1/8-inch to 3/4-inches.

BC Plywood is a top quality product with a smooth surface. The BC simply means there’s one B-grade side sanded and smooth, backed by a C-grade side. BC Plywood is ideal for jobs that require a finished sanded product.

What is RTD plywood used for?

Exterior panels sometimes referred to as RTD sheathing, are designed to hold up to constant moisture. They are completely waterproof and are great for installing in places where you expect consistent exposure to moisture. This RTD sheathing is great for roofs and other outdoor applications.

What is CDX plywood?

CDX Plywood is used primarily by contractors to build exterior walls and roofs. CDX plywood has one side veneer grade “C” and one side veneer grade “D”. The two are bonded together with glue which can withstand a little moisture. The APA would recognize CDX Grade Plywood as C-D Exposure 1 plywood.

Widths and Lengths

As described, the most common size for a sheet of plywood is 4 x 8 feet. Hardwood plywood is also available in sizes 2 x 2 feet, 2 x 4 feet, and 4 x 4 feet. Utility plywood is available in sheets that are longer, measuring 4 x 10 feet.

How thick should plywood subfloor be?

The minimum thickness of plywood for subflooring is about 5/8 inch. Since it does not hold fasteners as well as plywood, OSB must be a little thicker, or at least 23/32 inch.

What are the different grades of plywood?

There are four main grades of plywood veneer or ‘sheets’: A, B, C, and D. Each veneer contains two grades, with the corresponding compounds labeled as ‘AB’ or ‘BC,’ for example. The first letter refers to the ‘face’ veneer,’ while the second one is for the ‘back’ sheet.

What holds screws better plywood or OSB?

Group 1 plywood, made from the strongest species of wood such as Southern Yellow Pine, holds screws better than OSB.

Longer lengths – OSB panels can be factory-manufactured in lengths up to 24 feet, while plywood is limited by tree size to the 8- to 10-foot range. Superior shear strength – Due to OSB’s thickness, its shear values are about twice those of plywood, which explains why it’s increasingly used for webs of I-joists.

Which is cheaper plywood or OSB?

OSB is less expensive than plywood. To build a typical 2,400-square foot home, OSB may cost $700 less than plywood. OSB is considered by many to be a “green” building material because it can be made from smaller-diameter trees, such as poplars, that are often farmed.
