What opcode means?

In computing, an opcode (abbreviated from operation code, also known as instruction machine code, instruction code, instruction syllable, instruction parcel or opstring) is the portion of a machine language instruction that specifies the operation to be performed.

What are the types of opcode?

There are two types of opcode:
an opcode that tells the circuitry which operation to carry out.an opcode along with some data to be processed.

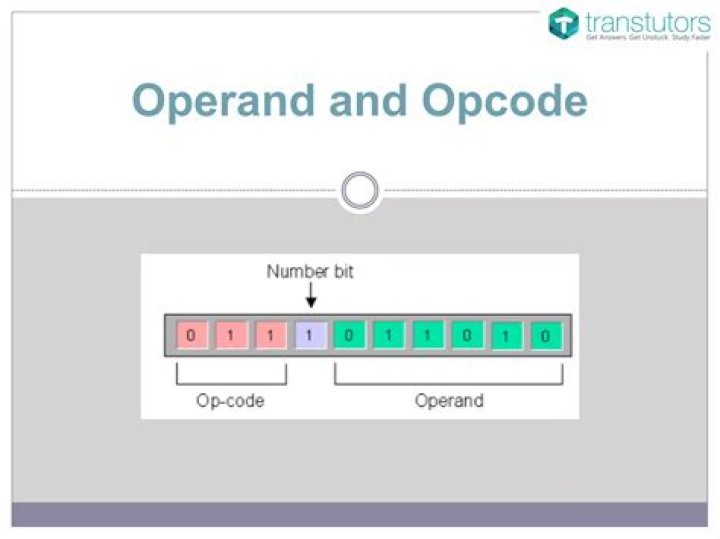

What is the purpose of an opcode and an operand?

Opcodes and operands

The opcode is the instruction that is executed by the CPU and the operand is the data or memory location used to execute that instruction.

How do I find my opcode?

Solution: It can be approached as:
As the processor has 40 instructions, number of bits for opcode = 6 (2^6 = 64)As the processor has 24 register, number of bits for one register = 5 (2^5 = 32)Total bits occupied by 2 registers and opcode = 6 + 5 + 5 =16.

What is an example of opcode?

Opcode definition

A complete machine language instruction consists of an opcode and zero or more operands with which the specified operation is performed. Examples are “add memory location A to memory location B,” or “store the number five in memory location C.” “Add” and “Store” are the opcodes in these examples.

Which of the following produces opcode?

ADD and MOV are the mnemonics which produce opcodes; “A,B” and “A,#67” are the operands. Instead of a mnemonic and operand, these two fields could contain assembler pseudo-instructions, or directives.

What does add R1 R2 R3 mean?

ADD: This instruction adds 2 values (from 2 registers or from a register and an immediate value) and puts them into a register. Similar format is used for SUB, MULT, DIV, MOD. For eg. “ADD R1 R2 R3;” will move the value R2+R3 into R1. “ADD R1 R2 #3;” will move the value R2 + 3 into R1.

What is opcode and mnemonic?

As nouns the difference between mnemonic and opcode

is that mnemonic is anything (especially something in verbal form) used to help remember something while opcode is (computing) a mnemonic used to refer to a microprocessor instruction in assembly language.

What is an opcode and mention the types of opcode?

An opcode is a single instruction that can be executed by the CPU. In machine language it is a binary or hexadecimal value such as ‘B6’ loaded into the instruction register. In assembly language mnemonic form an opcode is a command such as MOV or ADD or JMP. For example. MOV AL, 34h.

What is Bun instruction?

The BUN instruction allows the programmer to specify an instruction out of sequence and we say that the program branches (or jumps) unconditionally. The instruction is executed with one microoperation: D4T4: PC ← AR, SC ← 0. The effective address from AR is transferred through the common bus to PC .

What is operand explain with example?

In computer programming, an operand is a term used to describe any object that is capable of being manipulated. For example, in “1 + 2” the “1” and “2” are the operands and the plus symbol is the operator.

What is opcode and operand in 8085?

The Opcode is operation codes in the microprocessor which is done addition, multiplication, etc operation. The operand contains the data or memory location in the register.

What is opcode register?

The opcode uniquely specifies the operation to be performed, while each EA field specifies the register or memory location that contains an operand to be manipulated by the instruction.

What is RT Rd?

— rs and rt are the first and second source registers. — rd is the destination register. — shamt is “shift amount” and is only used for shift instructions. — func is used together with op to select an arithmetic. instruction.

What is RT MIPS?

rt stands for “register target”.
