What is the difference between the pipe and plates?

Plate Earthing: A copper plate or galvanized plate is buried in an earth pit below ground level. The plate electrode connects the electrical conductors to the earth. Pipe Earthing: A galvanized steel perforated pipe inside the ground connects the electrical conductors to the earth.

Which type of earthing is best?

Plate earthing is the best earthing.

Where is plate earthing and pipe earthing?

pipe is left open for maintenance when needed, and water is poured into the galvanized steel pipe to maintain earth resistance within certain limits. For all domestic purposes, pipe earthing is commonly used, and it is less expensive. The plate is made up of copper or galvanized iron used in this type of earthing.

Where do we use pipe earthing?

Pipe Earthing: For earthing house wiring, factory wiring (specially electrical installations of big factories), neutral wire of the supply line etc., galvanized iron pipe is generally used as earth electrode. The size of the pipe depends upon fault current and the condition of the soil.

What is the main difference between pipe and tube?

The inside diameter (ID) is theoretical. Tubes can come in different shapes such as square, rectangular and cylindrical, whereas piping is always round. The circular shape of the pipe makes the pressure force evenly distributed. Pipes accommodate larger applications with sizes that range from a 陆 inch to several feet.

Whats the difference between pipe and tube?

Many people think that the word has the exact same meaning and use the word “pipe” and “tube” interchangeably. A pipe is a vessel – a tube is structural. A pipe is measured in terms of its ID (inside diameter) A tube is measured in terms of its OD (outside diameter).

Which is better pipe or plate earthing?

Advantages of Pipe Earthing over Plate Earthing

In plate earthing, we use copper which is of the high cost. So, the Galvanised Iron pipe which is of less cost is preferred than plate earthing. It requires less maintenance.

What is plate earthing?

PLATE EARTHING: A plate made up of galvanized copper or iron is buried vertically at a depth of not less than 3m from ground level. The plate here connects all the conductors to the earth.

What are the 5 earthing systems?

There are five types of neutral earthing:
Solid-earthed neutral.Unearthed neutral.Resistance-earthed neutral. Low-resistance earthing. High-resistance earthing.Reactance-earthed neutral.Using earthing transformers (such as the Zigzag transformer)

How is pipe earthing done?

A layer of sand, salt and coal of 15 cm each is laid around the electrode. Such layer is laid up to 90 cm. After the rest of the pit is filled with black soil, usually after 2.5 meters, the Pipe with earth conductor gets out, where the connection of Earthing is to be done. The Pipe which has a funnel on the top end.

What are the advantages of plate earthing?

Plate Earthing System:

In these types of earthing a plate is made up of copper or galvanized iron which is placed vertically in the ground pit less than 3 meters from the ground and one should maintain the earth moisture condition around the plate earthing system for a better electrical grounding system.

What is the different types of earthing?

There are three types of earthing, they are: Pipe earthing. Plate earthing. Strip earthing.

Which pipe is used in pipe earthing?

Hollow GI rod electrode is used for pipe earthing.

In pipe earthing method the galvanized steel and perforated pipe of approved length and diameter in place upright in permanently wet soil. The size of the pipe depends upon the current to be carried and the type of soil.

What is the size of pipe and plate used as electrode for earthing?

Usually, the pipe used for this purpose is of diameter 38 mm and 2.5 meters in length for ordinary soil or of greater length in case of dry and rocky soil.

What is PN and DN?

Indeed, only elements having the same DN and the same nominal pressure (PN) can be coupled. A pipe’s nominal pressure describes the maximum internal pressure that the pipe and its joints are capable of withstanding and it is expressed in bars.

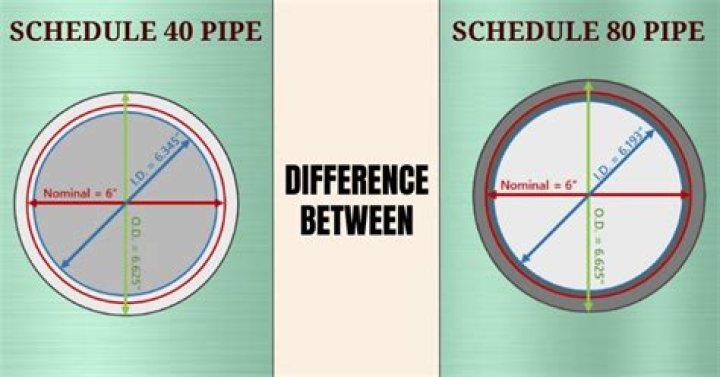

What is OD and ID of pipe?

When it comes to measurement of pipe, it is measure by the inside diameter, often called the nominal diameter. The outside of the pipe is always larger than the inside. The difference between the inside diameter (ID) and the outside diameter (OD) is due to the thickness of the wall.

Which is stronger pipe or rod?

Strength to weight ratio is better for a hollow pipe than a solid rod. This means a hollow cylinder is stronger than a rod of equal mass and the same material. A hollow cylinder with a bigger inside diameter is better.
