what is inline pump, check these out | What is an inline pump used for?

In-line pumps are centrifugal pumps, whose pump discharge and pump suction nozzles lie in a straight line of piping. It is often used in building services applications (e.g. heating and air conditioning) and is driven by means of a. Canned motor Fig.

What is an inline pump used for?

In-line pumps are not self-priming type pumps. They pump fluids with less or no solid particles mixed in them. They are used in the boiler, cooling tower, air conditioning systems, and as booster pumps in the water supply system. Due to their inline flow, they are easier to install.

What are the 4 types of pumps?

Types of Pumps
Types of Pumps.Centrifugal Pumps.Vertical Centrifugal Pumps.Horizontal Centrifugal Pumps.Submersible Pumps.Fire Hydrant Systems.Diaphragm Pumps.Gear Pumps.

What is the difference between inline pump and rotary pump?

An inline pump has multiple high-pressure pumps; one for each cylinder. This one has six pumps, one under each outlet port. A distributor pump has ONE high-pressure pump and uses a rotary valve to distribute high-pressure fuel to each cylinder.

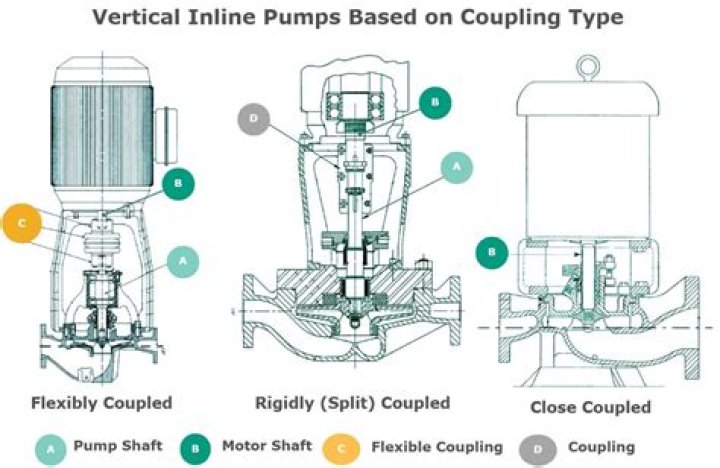

What are vertical inline pumps?

Vertical inline centrifugal pumps, as their name implies, are single stage centrifugal pumps that are specifically designed for vertical installation. Their suction and delivery are inline to provide a smooth flow of liquid through the system.

What is horizontal pump?

Horizontal pumps are centrifugal pumps with horizontal shaft axis.

What are the 2 main classification of pumps?

Pumps are divided into 2 major categories: Dynamic and Positive Displacement (aka Displacement).

What are the 3 types of centrifugal pumps?

Single-stage, Two-stage, or Multi-stage.

Which pump is used for high pressure?

Multi-stage centrifugal pumps tend to be used for applications that require higher pressure or pressure head. Diaphragm type pumps are generally deployed within the following ranges: Flow rate ranges between 20 to 750,000 lpm.

What is the difference between inline injection pump and distributor injection pump?

The inline type uses one plunger for one injector, but the distributor type uses a single plunger for all injectors. When the pump shaft rotates, the plunger will press the fuel in the fuel barrel alternately according to the ignition timing.

How many types of fuel pumps are there?

Types of Fuel Pumps: Mechanical, Electric & High Pressure Fuel Pump :- Fuel pump is fluid handling pump which transfers the fuel from fuel tank to the engine. It is generally used in the internal combustion engines.

What are the two most commonly used types of diesel injection systems?

The main types of injection systems include pump-line-nozzle, unit injector, and common rail.

Why vertical pumps are used?

When you have a restricted surface area and need a pump that takes up a much smaller footprint, vertical centrifugal pumps will definitely take up less floor space. They are well-suited for liquids with high temperatures and pressures, and the NPSH can be altered to handle a wider range of applications.

What is a cantilever pump?

What is a cantilever pump? A specialized types of vertical sump pump designed to be installed in a tank or sump but with no bearing located in the lower part of the pump. Thus, the impeller is cantilevered from the motor, rather than supported by the lower bearings.

Which is positive displacement pump?

A Positive Displacement pump (PD pump) is a mechanical device which displaces a known quantity of liquid for every revolution or cycle that the pump completes. The flow rate through a positive displacement pump is directly proportional to its speed and number of cycles over a given time.

What is vertical and horizontal?

Anything parallel to the horizon is called horizontal. As vertical is the opposite of horizontal, anything that makes a 90-degree angle (right angle) with the horizontal or the horizon is called vertical.

What is the advantage of vertical centrifugal pump?

Pros of Vertical Centrifugal Pumps

Smaller footprint when compared with horizontal pumps. Suitable for applications that have restricted surface area. The NPSH can be altered thereby making it suitable for a wide range of applications. Suitable for liquids with high pressures and high temperatures.
