What is forward break over voltage?

Forward break over voltage of SCR is the minimum forward voltage at which SCR starts conducting. It blocks the current up to this particular voltage. During this period the leakage current only flows through the device which is very less (negligible current). This region is called as forward blocking region.

What is forward break over voltage of thyristor?

Forward break over voltage of SCR is the base forward voltage at which SCR begins leading. Think about the VI attributes of SCR in Figure 1. SCR won’t lead up to the specific benefit of sending voltage when it is in the sending inclination condition.

What is forward break over voltage and reverse break over voltage?

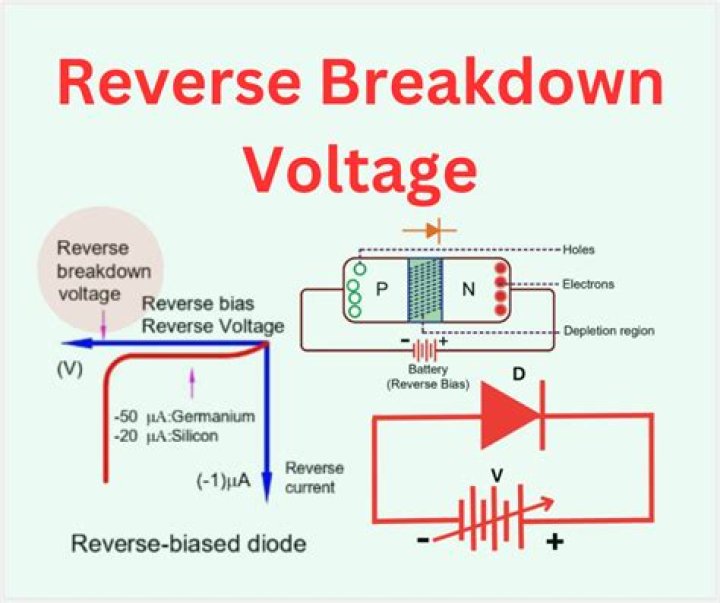

This happened when the PN junction is in a forward bias or positive potential is applied to the p layer and negative is applied to the n layer. Break down or sometime called inverse voltage is the maximum voltage that can be applied in reverse bias (reversed polarity) before the PN device gets damaged.

What is the relationship between the gate signal and forward break over voltage?

If gate is supplied by a positive current then forward break over voltage occurs earlier than no gate current condition. By increasing the gate current, the forward break over voltage occurs for lower values of forward voltage.

What is voltage breakdown?

The breakdown voltage of an insulator is the minimum voltage that causes a portion of an insulator to experience electrical breakdown and become electrically conductive. For diodes, the breakdown voltage is the minimum reverse voltage that makes the diode conduct appreciably in reverse.

What is break over current?

[′brā‚kō·vər ‚vȯl·tij] (electronics) The positive anode voltage at which a silicon controlled rectifier switches into the conductive state with gate circuit open.

What is reverse break over voltage in SCR?

The amount of reverse bias that will cause a p-n junction (diode) to break down and conduct in the reverse direction.

What is forward blocking region?

∎ the region at which the current IA is very little (can be neglected) is called the forward blocking region → the device has very high resistance → it is in its off state and act as an open switch.

What are DIACs and triacs?

DIAC stands for Diode AC switch. TRIAC stands for Triode AC switch. DIAC is a bidirectional device that lets current pass through it in both directions when the voltage across the terminals reaches break-over voltage.

Why is reverse breakdown voltage greater than forward breakdown voltage in SCR?

When the anode is made positive with respect to the cathode, junctions J1 and J3 are forward biased and junction J2 is reverse-biased and only the leakage current will flow through the device. If a positive gate current is supplied, the SCR can become conducting at a voltage much lesser than forward break-over voltage.

What is turn over voltage?

When the voltage in a circuit or part of it is raised above its upper design limit, this is known as overvoltage. The conditions may be hazardous. Depending on its duration, the overvoltage event can be transient—a voltage spike—or permanent, leading to a power surge.

What is break over diode?

A Break Over Diode (“BOD”) device is a gate-less two terminal high power semiconductor switch in which transitions from a blocking state to a conducting state are triggered by a dV/dt pulse to the anode.

Is the value of break over voltage depends on the magnitude of gate current?

…to switching is called the forward-breakover voltage VBF. The magnitude of VBF depends on the gate current. Higher gate currents cause the current IA to increase faster, enhance the regeneration process, and switch at lower breakover voltages.

Why the increased gate current reduces the forward breakover voltage to make an SCR triggered?

This is because the cathode n layer is heavily doped as compared to gate p layer. Since junction J1 and J3 are already forward biased, the injected electrons in gate p layer may reach junction J2 and hence reduces the width of depletion region. This result is reduction of forward breakover voltage.

What will happen if applied voltage exceeds forward break over voltage?

If we increase the voltage further to this breakdown voltage,the diode gets overheated and gets shorted because of the avalanche breakdown around the junction. Even though, the voltage remains the same almost, the current increases tremendously which may result in the failure of the diode.

Why is breakdown voltage?

Breakdown voltage is the threshold voltage at which the initiation of breakdown occurs. However, before current can flow, the open gap voltage increases until it has created an ionization path through the dielectric. Once the current starts to flow, voltage drops and stabilizes at the working gap level.

What is breakdown voltage in Mosfet?

Breakdown voltage, BVDSS, is the voltage at which the reverse-biased body-drift diode breaks down and significant current starts to flow between the source and drain by the avalanche multiplication process, while the gate and source are shorted together.

What is breakdown and its types?

The types of break down diodes include Schottky diode, Zener diode and Avalanche diode.
