what is esfr sprinkler system, check these out | How does ESFR sprinkler work?

Early Suppression Fast Response (ESFR) systems are quick responding, high volume sprinkler systems that provide exception protection for high piled storage occupancies.

How does ESFR sprinkler work?

How do they work? ESFR sprinklers are designed to release 2-3 times the amount of water of conventional sprinkler heads and to emit larger droplets of water, which in turn have a greater momentum than droplets emitted from conventional heads.

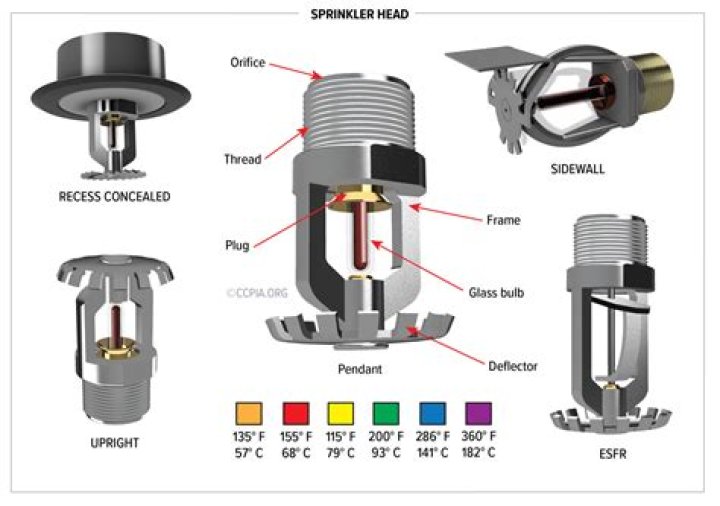

What is a ESFR sprinkler?

ESFR (Early Suppression, Fast Response) ceiling mounted sprinklers can be used in warehouses in place of in-rack fire sprinkler systems. ESFR provides protection that exceeds that of in-rack systems. ESFR high output, high volume systems are located in ceiling spaces as with conventional fire sprinkler systems.

What are the four types of sprinkler systems?

Today, there are four main types of sprinkler systems:
Wet pipe.Dry pipe.Preaction.Deluge.

Are ESFR sprinklers wet or dry?

Early Suppression, Fast Response (ESFR) The Model ESFR-17 Dry Type Sprinklers are primarily used for ceiling only sprinkler protection and used to protect solid piled, palletized, and rack storage that is subject to freezing temperatures.

How big can an ESFR sprinkler system be?

ESFR fire suppression systems can be used in warehouses with ceilings as high as 45 feet and storage heights of 40 feet.

How close can ESFR heads be together?

New ESFR Installations:

The designer is constrained by a maximum spacing of 10 feet between sprinklers, a minimum spacing of 8 feet between sprinklers, and a 12-inch horizontal clearance required from every steel member.

What is large drop sprinkler?

The large-drop sprinkler, which was a standard-response K11. 2 (K160) upright sprinkler, allowed for larger droplets at lower operating pressures, thus improving the water penetration into the fire area and reducing the number of operating sprinklers activated during full-scale fire testing.

What is K-factor for spray nozzle?

From Wikipedia, the free encyclopedia. In fire protection engineering, the K-factor formula is used to calculate the discharge rate from a nozzle. Spray Nozzles can be fire sprinklers or water mist nozzles, hose reel nozzles, water monitors and deluge fire system nozzles.

What are the 3 types of conventional sprinkler system?

3 Types of Fire Sprinkler Systems
Wet Fire Sprinkler System. A wet fire sprinkler system is one of the most common options on the market. Dry Fire Sprinkler System. A dry fire sprinkler system is filled with pressurized air, rather than water. Preaction Fire Sprinkler System.

What is the most common type of sprinkler system?

Wet pipe sprinkler systems are the most common. In this system the sprinkler piping is constantly filled with water.

What are different types of sprinklers?

7 Types of Sprinklers
Pop-up Sprinklers. They are sometimes called in-ground sprinklers and are a common type of sprinkler. Traveling Sprinklers. Rotary Sprinklers for Lawn or Garden. Oscillating Lawn Sprinkler. Stationary Lawn Sprinklers. Misting sprinklers. Sprinkler Hose.

Can ESFR sprinklers be used in a dry system?

It is worth noting that gridded piping is not permitted for dry pipe systems, which limits the hydraulic efficiency of the system. Likewise, Early Suppression Fast Response (ESFR) sprinklers are not permitted.

What is the most common type of residential fire safety alarm system?

The two most commonly recognized smoke detection technologies are ionization smoke detection and photoelectric smoke detection. Ionization smoke alarms are generally more responsive to flaming fires.

How far does a sprinkler head need to be from a wall?

Four-inch minimum spacing from walls and maximums vary with room shape and size, which is why standard spray sprinklers have four-inch minimum spacing from walls and maximums. The minimum sprinkler distance from walls is four inches for all standard sprinkler heads. The distance from an end wall is 10.

How much water does a fire sprinkler use per minute?

Quick response sprinklers release 8-24 gallons of water per minute compared to 80-125 gallons per minute discharged by a fire hose.
