What is base address and offset address?

In computer engineering and low-level programming (such as assembly language), an offset usually denotes the number of address locations added to a base address in order to get to a specific absolute address.

What is base address and offset address?

The base address register is a pointer to a byte in memory, and the offset specifies a number of bytes. Immediate means the address is calculated using the base address register and a 12-bit offset encoded in the instruction.

How do I find the offset address?

To compute the physical address:
look up the page number in the page table and obtain the frame number.to create the physical address, frame = 17 bits; offset = 12 bits; then 512 = 29. 1m = 220 => 0 – ( 229-1 ) if main memory is 512 k, then the physical address is 29 bits.

What is offset address in microprocessor?

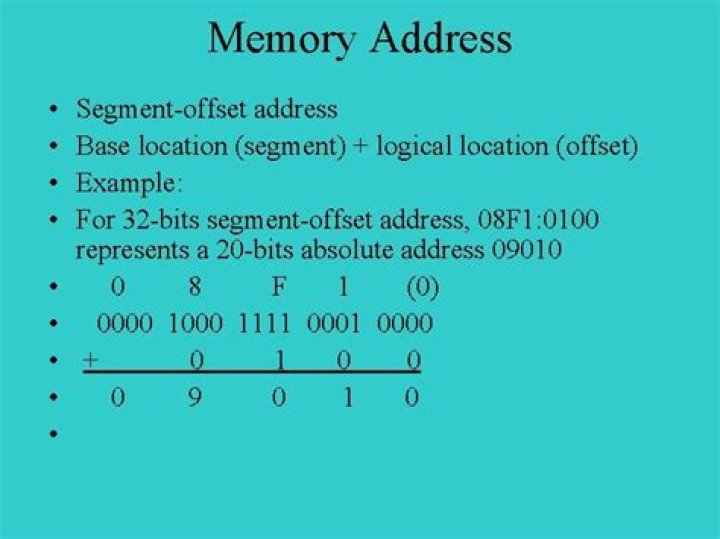

The offset address, which is a part of the address, is added to the start of the segment to address a memory location within the memory segment. For example, if the segment address is 1000H and the offset address is 2000H, the microprocessor addresses memory location 12000H.

What is offset in register?

Offset is basically the distance from the segment point(also called datum point). for example segment address is 0000 and the offset or logical address is 0100 then the physical address can be counted by adding the two pairs. Physical Address = 0000+0100=0100 Means that our required location is on the address of 0100.

What is offset in logical address?

Offset. The last bits of the virtual address are called the offset which is the location difference between the byte address you want and the start of the page. You require enough bits in the offset to be able to get to any byte in the page.

What is offset in addressing mode?

Indexed addressing mode: The operand’s offset is the sum of the content of an index register SI or DI and an 8 bit or 16 bit displacement. Based Indexed Addressing: The operand’s offset is sum of the content of a base register BX or BP and an index register SI or DI.

What is offset in paging?

Recall that virtual memory and physical memory are divided into pages. The most significant bits of the virtual or physical address specify the virtual or physical page number. The least significant bits specify the word within the page and are called the page offset.

How is offset value calculated?

Find a value that, when subtracted from your augmented X value, leaves zero; this is the offset value for X coordinates. Db2 Spatial Extender subtracts this number from all X coordinates to produce only positive values. For example, if the augmented X value is -105, you need to subtract -105 from it to get 0.

What is offset in engineering?

Science and engineering

Offset (botany), a separable part of a plant that can develop into a new, independent plant. Offset (computer science), the distance to (displacement of) an element within a data object. Offset (gears), the perpendicular distance between the axes of hypoid or offset-facing gears.

What is offset in Python?

Simply said, offset is the position of the read/write pointer within the file. offset is used later on to perform operations within the text file depending on the permissions given, like read, write, etc. seek(): In Python, seek() function is used to change the position of the File Handle to a given specific position.

What is bit offset?

An offset is a relative address in some stream and/or storage medium. A 16bit offset is an offset that’s stored in a 16 bit variable/slot. So if some file format specification says that “the next field is the 16 bit offset” that means you must read the next 2 byte and treat it as a relative address.

What is offset assembler?

“Offset” is an assembler directive in x86 assembly language. It actually means “address” and is a way of handling the overloading of the “mov” instruction.

Which register holds the offset address?

Stack pointer (SP) holds the offset address of the stack segment. 4. Base pointer (BP) can be used general register and also used to hold offset address in few instructions.

What is the offset address and segment address in C?

So, in the other words we can say memory address of any variable in c has two parts segment number and offset address. In turbo c 3.0 a particular segment number offset address varies from 0x0000 to 0xFFFF. Suppose physical address of any variable in c is 0x500F1. Then its segment number is 5 and offset address is 00F1

How many bits are there in the offset?

The offset field requires 14 bits to address 16 KB. That leaves 24 bits for the page fields. Since each entry is 4 bytes, one page can hold 16KB / 4 byte = 2^12 page table entries and therefore requires 12 bits to index one page.

What thrashing means?

Thrashing is a state in which the CPU performs ‘productive’ work less, and ‘swapping’ more. Thrashing occurs when there are too many pages in memory, and each page refers to another page. The real memory shortens in capacity to have all the pages in it, so it uses ‘virtual memory’.

What is offset in segmentation?

In a computer system using segmentation, a reference to a memory location includes a value that identifies a segment and an offset (memory location) within that segment. Segmentation was originally invented as a method by which system software could isolate different software processes (tasks) and data they are using.
