What is a standard door size?

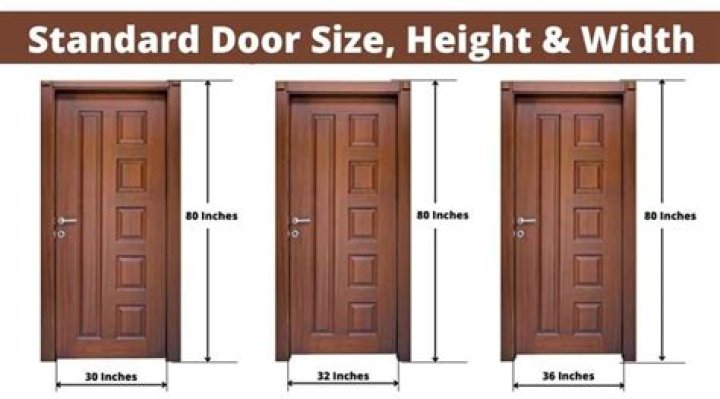

Standard Door Sizes

Typically, main entry doors measure 36 inches wide by around 80 inches high. Depth can vary depending on material. However, you can have doors that are much taller. These might be visually appealing in home designs with a tall or large entryway or a cathedral ceiling.

What are the dimensions of a 3080 door?

The standard size door is 3’0″ (36″) wide by 6’8″ (80″) tall and is the main component of the door unit. In the industry it is known as a 3068 door. The door unit, though, consists of the door, the frame around the door, and the sill underneath the door.

What size is a 2880 interior door?

The door would be called a 2880 [28 = 32″ wide / 80 = 96″ tall].

What size is a 4080 door?

Actual unit size: 74″ x 81-1/2″ (with 36″ doors) Fits rough opening: 74-1/2″ x 82″ (with 36″ doors)

How big is a 2480 door?

So a 2480 is 24″ wide by 80″ high.

What sizes do interior doors come in?

Standard widths include 18, 20, 24, 28, 30, 32 and 36 inches. Standard heights include 80, 84 and 96 inches. Customized sizes are available in a wide range of different designs. To measure a prehung door, remove the interior casing and measure the opening.

How wide is a 32 inch door?

2’8″ (32 Inch) Door Width (Actual Size 31-3/4″) by Door Closers USA.

How wide is a 36 inch door?

3’0″ (36 Inch) Door Width (Actual Size 35-3/4″) by Door Closers USA.

How big is a 3068 door?

Did you know that a door that measures 36 inches wide and 80 inches tall is sized by door professionals as a 3068 door? 3068 is a professional door nomenclature that goes with the width size first and height size next. It stands for three feet and no inches wide by six feet and eight inches tall.

What size is a 3070 door?

Keep in mind that on a 3070 door, the nominal measurements are 3’0″ x 7’0″ while the actual measurements are 2′ 11 3/4″ x 6′ 11 1/8″. Using a 3070 door as an example, the rough opening size for a KD cased open frame would be 38″ x 85″.

How big is a 9080 door?

7′ 11-3/4″ wide units are used above 8068, 80610 or 8080 Gliding Patio Doors. 9′ 1-3/4″ wide units are used above 9068, 90610 or 9080 Gliding Patio Doors. See notes on page 3 for more information.

How wide is a 32 inch Prehung door?

Rough Opening for 32 Inch Door

For example a two-foot, eight inch (32”) by six feet, eight inch high (80”) prehung door, would require a rough opening width of 34 inches and a height of 82 inches.

What is the actual size of a 32 inch Prehung door?

Actual unit size is 33-7/16 in. x 81-3/4 in.
