What is a parallelogram steering system?

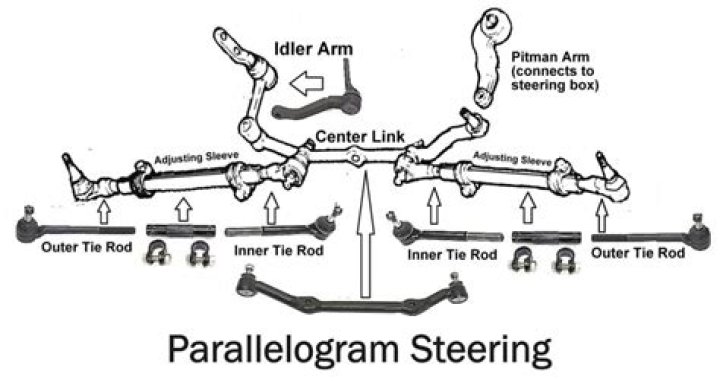

The typical steering system used on passenger cars and light trucks is called a parallelogram system because all the pivot points are paralleled. This allows each wheel to be flexible and to travel independently. The conventional parallelogram system consists of the following: pitman arm. idler arm.

What are the differences between rack and pinion and parallelogram steering systems?

The only difference between most rack and pinion problems and parallelogram problems is in the way inner tie sockets are diagnosed. The outer tie rod ends are diagnosed the same way, by squeezing and feeling for movement or clicking in the joint. Examples of rack and pinion inner tie sockets and outer tie rod ends.

Where does parallelogram steering get its name?

The parallelogram steering system gets its name because the center link and axle, along with the pitman arm and idler arm, always move parallel to each other. The outer tie-rod is attached to the end of the rack and allows for syspension movement and slight changes in steering angles.

What are the types of steering system?

There are two basic types of power steering systems used on vehicles. The rack and pinion steering system and the conventional/integral steering gear system, which is also known as a recirculating ball steering system.

What component of the parallelogram steering system is subject to excessive wear?

The symptom of a worn Pitman arm or steering gear is excessive play in the steering wheel. In contrast, the idler arm’s job is to simply suspend the passenger side steering linkage from the frame. The primary symptom of a worn idler arm is wear on the outer edge of the passenger side front tire.

Do parallelogram steering arrangements typically use a rack and pinion mechanism?

Parallelogram steering arrangements typically use a rack-and-pinion mechanism. The worm gear and the pitman gear are components within a recirculating ball steering gearbox. The rack and pinion steering system is more complex than the recirculating ball type.

What is the advantage of a parallelogram steering system over a steering rack?

The rack and pinion style has less moving parts and, therefore, less causes of failure. The rack and pinion system is also lighter in general which helps the vehicle’s weight. The pitman arm style steering system is normally referred to as parallelogram steering.

What is the best type of steering?

Electric power steering provides better fuel economy

This method reduces the amount of weight in the vehicle. Also, the EPS system doesn’t use power from the engine as the hydraulic systems do. Overall, the electric power steering system is more efficient.

Do modern cars use rack and pinion steering?

Many modern cars use rack and pinion steering mechanisms, where the steering wheel turns the pinion gear; the pinion moves the rack, which is a linear gear that meshes with the pinion, converting circular motion into linear motion along the transverse axis of the car (side to side motion).

Is power steering fluid universal?

There is also a universal power steering fluid option that can be used in many modern vehicles. To find the appropriate power steering fluid for a vehicle, you want to look at the power steering reservoir cap. The information should also be listed in the car owner’s manual.

Who provides flexible movement for trackrod?

The tip of the rod comprises a flexible element, called ball joint, which allows movement of the wheel suspension and steering torsion relative to stationary mounted in a vehicle steering gear.

How much endplay is usually acceptable in tie rod ends?

A vehicle has an excessive amount of free play in the steering wheel and it is difficult to keep it traveling straight on a level road. Which is the LEAST likely cause? How much end play is usually acceptable in tie rod ends during a dry park test? 0.030 to 0.050 in.

What are the 3 types of steering?

How do the Three Power Steering Systems Differ?
Hydraulic Power Steering.Electro-Hydraulic Power Steering.Electric Power Steering or Motor-Driven Power Steering.

What are the 6 types of steering system?

6 Types of Steering Wheel
Telescope Steering Wheel.Tilt Steering Wheel.Adjustable Steering Wheel.Swing-away Steering Wheel.Steering Wheel With Recirculating Balls.Rack-and-Pinion Steering Wheels.

How many types of steering are there?

There are two main types of steering gears used for most modern vehicles: the rack and pinion steering gear and the recirculating ball steering gear.

What does it mean when there is excessive play on your steering wheels when you have power steering quizlet?

A power recirculating ball steering gear has excessive kickback on the steering wheel. The most likely cause of this problem is: A defective poppet valve in the steering gear.

What do pivoting tie rods connect the parallelogram to?

A device that converts the rotary motion of the steering wheel to the linear motion needed to steer the vehicle. An arm that extends from the steering knuckle. The tie-rods connect to these arms in order to steer the wheels.
