What is a good SNR?

Generally, a signal with an SNR value of 20 dB or more is recommended for data networks where as an SNR value of 25 dB or more is recommended for networks that use voice applications.

What is a good WIFI signal to noise ratio?

The signal-to-noise ratio (SNR) compares the level of the Wi-FI signal to the level of background noise. A ratio of 10-15dB is the accepted minimum to establish an unreliable connection; 16-24dB (decibels) is usually considered poor; 25-40dB is good and a ratio of 41dB or higher is considered excellent.

What is a good signal to interference ratio?

The general consensus is that wireless devices will work reliably with the SIR ratio of 0dB (decibels) or less.

It is OK to have 100% and high SNR as long as the AGC is compensating for changes.]

What is a good 5g SNR?

An SNR greater than 40 dB is considered excellent, whereas a SNR below 15 dB may result in a slow, unreliable connection.

Noise can be caused by any electronic device, including microwave ovens, cordless phones, Bluetooth devices, wireless video cameras, wireless game controllers and fluorescent lights. Note that other Wi-Fi networks are not included when measuring noise, but they are included in the Signal-to-Interference Ratio.

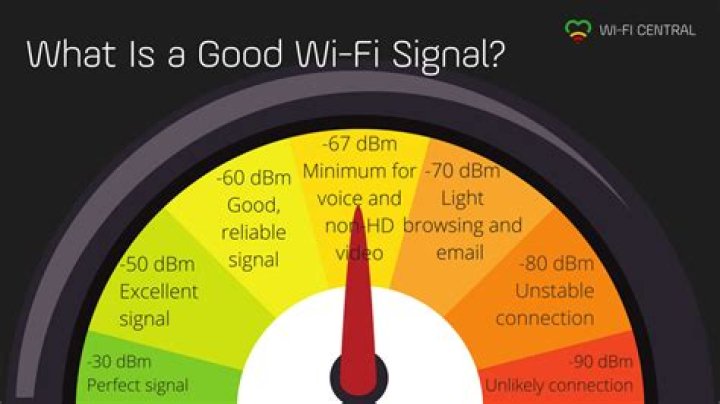

What is good signal strength dBm?

Signal strengths can range from approximately -30 dBm to -110 dBm. The closer that number is to 0, the stronger the cell signal. In general, anything better than -85 decibels is considered a usable signal. These signal boosters typically improve signal strengths to a level of -70 dBm or better.

Should dBm be high or low?

Measured in dBm, a signal of greater than -70 dBm is considered an excellent signal in all networks. A poor signal will be -100 dBm or worse in 3G networks and -110 dBm or worse in 4G networks.

Tips to Fix WiFi Interference
Relocate your wireless router away from nearby routers, appliances and dense building materials.Unplug the appliances and devices when not in use.Avoid using too many wireless gadgets at the same time within close proximity of each other.Try using different wireless frequency (5GHz vs.

What is good SNR margin?

Signal-to-noise ratio (SNR)

Typical values are: 10dB and lower is bad. 11db – 20dB is OK. 20dB – 28dB is excellent.

What is the C I ratio?

1.2.

The carrier-to-Interference (C/I) ratio is the ratio, expressed in dB, between a desired carrier (C) and an interfering carrier (1) received by the same receiver, which is called the “victim” receiver. The desired carrier level and the interfering carrier level are calculated and measured in dBm.

What are good SNR values for cable modem?

SNR is best over 30, (the higher the better, might work well with as low as 25 at times). Anything less than 25 will cause dropped connections, packet loss, slow transfers, etc. This is true for both the “Downstream SNR” and the “Upstream SNR”, which may be different values.

On the mobile app is stands for “Streaks and Recents.” If two people are snapping each other back and forth, they might want to keep up with “SNR,” or streak.

What is a good downstream SNR?

In the Downstream section, identify the Modulation and Power to find verify SNR levels are within the acceptable range for each downstream channel. Acceptable SNR Levels (dB): If QAM64, SNR should be 23.5 dB or greater. If QAM256 and DPL( -6 dBmV to +15 dBmV) SNR should be 30 dB or greater.

What is a good dBmV?

For all modems DOCSIS 3.0 / 3.1: -7 dBmV to +7 dBmV are “Recommended” values. Lower than -15 dBmV & Higher than +15 dBmV are out of DOCSIS 3.0 specifications and modems may not work at all or cause lot of problems.
