What are the limitations of Kelvin double bridge and what is the condition to achieve a high sensiti

Limitations of Kelvins Bridge
The sensitive galvanometer is used for detecting the balance condition.The high measurement current is required for obtaining the good sensitivity.

What are the limitations of Kelvin double bridge and what is the condition to achieve a high sensitivity in Kelvin bridge?

Explanation: The condition to achieve a high sensitivity in a Kelvin bridge is that the measuring current should be high enough so as to sensitize the null detector.

What are the limitations of Wheatstone bridge?

The disadvantage of the Wheatstone Bridge is that it is not so precise when it is used to measure large resistances. When the large resistances are to be measured, the results are mostly non-linear. Sometimes the value of the resistance degrades depending on the temperature and the EMF applied.

Why Kelvin double bridge Cannot measure medium or high resistance?

Explanation: A Kelvin bridge can be used for the measurement of high Quality factor values. Due to bridge imbalance problem, Kelvin bridge can’t be used for measuring low Quality factor values.

Why is the Kelvin double bridge used?

A Kelvin bridge, also called a Kelvin double bridge and in some countries a Thomson bridge, is a measuring instrument used to measure unknown electrical resistors below 1 ohm. It is specifically designed to measure resistors that are constructed as four terminal resistors.

What are the advantages and disadvantages of Kelvin double bridge?

From the above equation, we can say that by connecting the galvanometer at point 鈥渄鈥 there will be no effect in the measurement of the actual resistance value, but the only disadvantage of this process is that it is difficult to implement, hence we use a Kelvin double bridge for getting accurate low resistance value.

What are the advantages of Kelvin double bridge over potentiometer?

Because by using Kelvin’s Double Bridge, your end result i.e. the value of unknown resistance will not be influenced by resistances of connecting lead.

What is the limitation of this bridge?

Following are the disadvantages of Bridges: 鉃↖t is slower compare to repeaters due to filtering. 鉃↖t does not filter broadcasts. 鉃↖t is more expensive compare to repeaters.

What are the limitations of Ohm’s law?

Limitations of Ohm’s Law of Current Electricity

The law is not applicable to unilateral networks. Unilateral networks allow the current to flow in one direction. Such types of network consist of elements like a diode, transistor, etc. Ohm’s law is also not applicable to non 鈥 linear elements.

What are limitations of Wheatstone bridge for resistance measurement how these can be overcome by using Kelvin’s Double bridge?

A dial may have a contact resistance of about 0.003惟 and thus a four dial resistance box has a contact resistance of about 0.012惟. This value is high, especially in the measurement of low resistances. This can be overcome by using Kelvin’s bridge for precision resistance measurements.

What is the disadvantage of Maxwell Bridge Mcq?

What is the disadvantage of Maxwell Bridge? Explanation: Maxwell Bridge cannot be used for the measurement of high Q values. 鈭 Inductance cannot be measured over a wide range.

Why Kelvin double bridge is superior to Wheatstone bridge?

Kelvin bridge is a modification of Wheatstone bridge. It is used for measurement of low resistance ( less than 1 ohm upto micro ohms ) with good accuracy. Kelvin bridge is not a practical circuit. Four wire method is used to measure low resistance with sufficient accuracy.

Which of the following is are the advantages of the Kelvin bridge?

The advantages of the Kelvin double bridge are that the effects of contact a lead resistances are eliminated and that variations in the current through the unknown have no effect on the balance of the bridge.

What are the criteria for balance of a Kelvin bridge?

Under balance conditions there is no current through the galvanometer which means that the voltage drop between a and b, Eab is equal to voltage drops Eamd between a and c. Eq (2) is the usual working equation for the kelvin bridge.

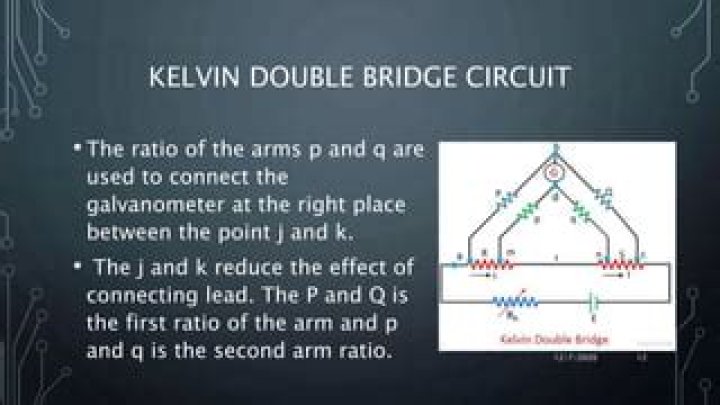

How many four terminal resistance are there in a Kelvin double bridge?

The kelvin double bridge has four terminal resistors for the low resistance arms and the second set of ratio arms (thus the name “double bridge”).

What is the main problem in measuring low resistances?

The major problem in measurement of low resistance values is the contact resistance or lead resistance of the measuring instruments, though being small in value is comparable to the resistance being measured and hence causes serious error.

What are the sources of error and precautions of DC bridges?

1. Stray conductance effects, due to imperfect insulation. 2. Mutual inductance effects due to magnetic coupling between various components of the bridge.
