How do you indicate a weld on a drawing?

Any symbol that is used to show a joint or weld type feature on the other side of the arrow line is always placed on a dotted line. BS 499 and AWS require symbols to be placed above the reference line (which indicate the other side) or below the reference line (indicating the arrow side of the joint).

How do you Annotate a weld?

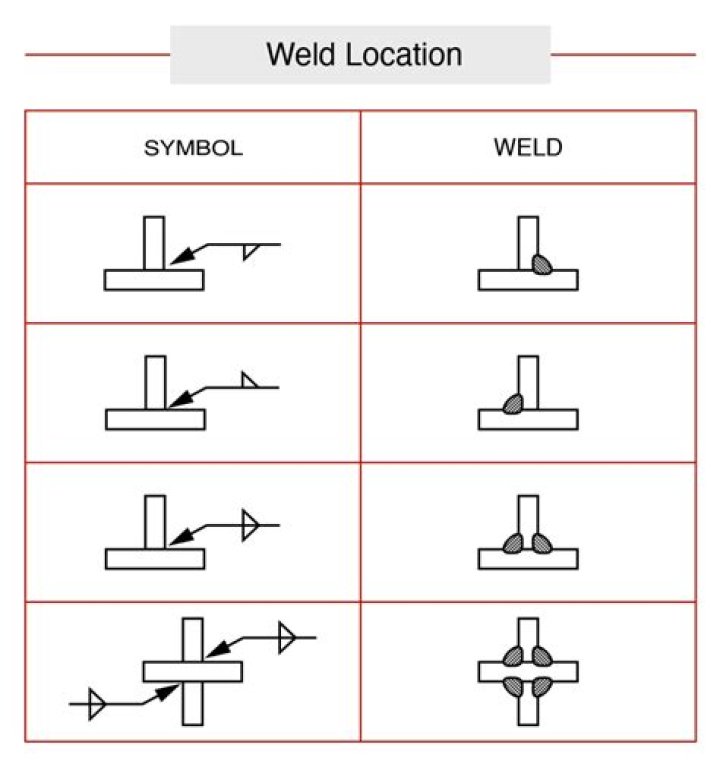

The weld symbol distinguishes between the two sides of a joint by using the arrow and the spaces above and below the reference line. The side of the joint to which the arrow points is known (rather prosaically) as the arrow side, and its weld is made according to the instructions given below the reference line.

What is welding in engineering drawing?

Welding symbols are used on blueprints and drawings to show where the weld is to be placed and may also show the size, type of weld, number of welds, details about the weld and even details about the joint.

How do you show tack weld on drawings?

There is no official tack weld symbol, but the spot weld symbol (a circle) can be used instead and placed above, below, or on the reference line to show tack welds.

What are the 3 main components of a weld symbol?

Elements of a Welding Symbol
Reference line.Arrow.Basic weld symbols.Dimensions and other data.Supplementary symbols.Finish symbols,Tail,Specification.

What are the basic weld symbols?

The skeleton of a welding symbol has an arrow, a leader line (attached to the arrow), a horizontal reference line, a tail, and a weld symbol (not to be confused with welding symbol, which refers to the whole thing. See symbol 1). Hold on, if you’re already lost, don’t panic. It’ll all start making sense soon.

What is bevel weld?

Bevelling is the process of preparing metal to be welded, usually by cutting an angled slope on the edge of the metal. Two pipe ends due to be welded together have their shapes altered by removing some of the metal from each end.

What are the four types of welding?

There are four main types of welding. MIG – Gas Metal Arc Welding (GMAW), TIG – Gas Tungsten Arc Welding (GTAW), Stick – Shielded Metal Arc Welding (SMAW) and Flux-cored – Flux-cored Arc Welding (FCAW). We dive deeper into each type of welding here.

What is FW in welding?

A resistance welding process that produces a weld at the interface of a butt joint by the heat produced during the flashing action and by the sudden application of high pressure after heating is substantially completed.

What is this welding?

Welding is a fabrication process whereby two or more parts are fused together by means of heat, pressure or both forming a join as the parts cool. Welding is usually used on metals and thermoplastics but can also be used on wood. The completed welded joint may be referred to as a weldment.

Why are welding symbols used?

Weld symbols are how the designer of a custom metal form communicates how objects should be welded to welders working the manufacturing line. Without clearly-marked weld symbols, the welder won’t know where to place a weld, what type of weld should be made, and the weld size.

What is 2X welding symbol?

The weld has a “2X” indicator in the tail of the callout, indicating that the entire weld callout is used in 2 places that have typical joints.

What is full weld?

A full or complete penetration weld can be a thick weld that has been beveled and then penetrated by being filled with multiple welds passes, or it could be a sheet metal joint that is . 020″ thick and is penetrated without any need for a groove bevel. The strength of the base metal is the same across the joints.

What is arc length in welding?

describes ‘arc length’ as the “distance from the tip of the welding electrode to the adjacent surface of the weld pool”.

What is RSW welding?

A resistance welding process that produces a spot weld at the faying surfaces of overlapped parts.

What are the 8 weld types of classifications?

Shielded Metal Arc Welding or Stick Welding. Oxy-Fuel Welding or Gas Welding. Gas Tungsten Arc Welding or TIG and, Gas Metal Arc Welding or MIG Welding.

Resistance Welding.Energy-Beam Welding.Underwater-Welding.Robotic-Welding.

What are the 10 forms of weld?

What are the types of welding?
MIG Welding – Gas Metal Arc Welding (GMAW)TIG Welding – Gas Tungsten Arc Welding (GTAW)Stick Welding – Shielded Metal Arc Welding (SMAW)Flux Welding – Cored Arc Welding (FCAW)Energy Beam Welding (EBW)Atomic Hydrogen Welding (AHW)Gas Tungsten-Arc Welding.Plasma Arc Welding.

What are the 4 things you need before welding?

You should always have the proper safety equipment before you even begin — the most important things that you should have include safety glasses, welding gloves, an auto-darkening helmet (to protect your eyes from the flash), and a fire-resistant jacket.
