virtual overlay network, check these out | What are overlay networks used for?

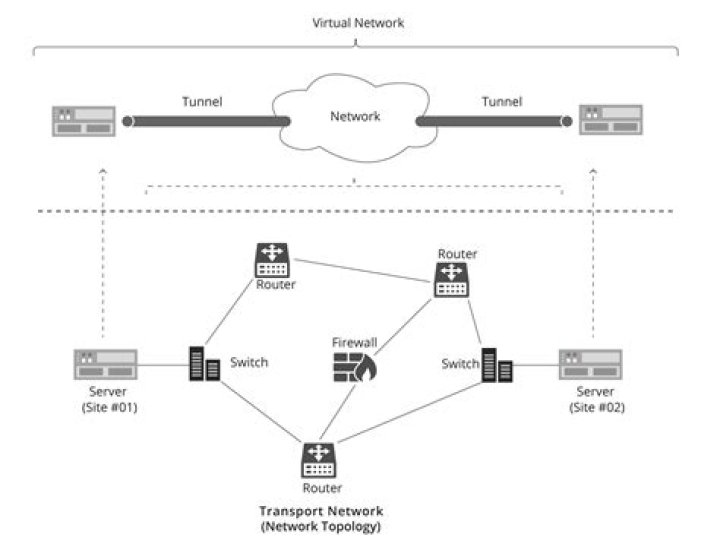

An overlay network is a telecommunications network that is built on top of another network and is supported by its infrastructure. An overlay network decouples network services from the underlying infrastructure by encapsulating one packet inside of another packet.

What are overlay networks used for?

Overlay networking (aka SDN overlay) is a method of using software to create layers of network abstraction that can be used to run multiple separate, discrete virtualized network layers on top of the physical network, often providing new applications or security benefits.

Is a VPN an overlay network?

Once connected the private networks resources are shared with the remote connection. VPN is considered an overlay network, as the tunnels used to connect are very distinct, separate and external to the private network and used to extend the functionality and accessibility of the primary physical network.

What is overlay network in distributed system?

Definition. An overlay network is a communication network constructed on top of an another communication network. The nodes of the overlay network are interconnected with logical connections, which form an overlay topology.

Is a VLAN an overlay network?

Many Forms of Network Overlays and Protocols

Overlay networks can take on many forms, including peer-to-peer networks, IP networks, and virtual Local Area Networks (vLANs). The Internet itself, which uses layer-3 IP addressing, is an overlay network itself, as endpoints are designated by their IP addresses.

Why Skype is called an overlay network?

Skype uses its overlay network to circumvent problems arising from Network Address Translation traversal and bypass firewalls. 5. Routing and relaying are very flexible; protocols allow peers to autonomously set up links with the best nodes available. 6.

Why use an overlay network in a data center?

Overlays are an attractive option to data center operators because they reduce the need for frequent modifications to the physical network while providing more agile deployment of networking resources.

Which types of VPNs does overlay network have?

Overlay VPN networks can be implemented with a number of switched WAN Layer 2 technologies, including X. 25, Frame Relay, ATM, or SMDS. In the last years, overlay VPN networks also have been implemented with IP-over-IP tunneling, both in private IP backbones and over the public Internet.

What is WIFI overlay?

Simply put, an overlay network is a virtual network of nodes and logical links, which are built on top of an existing network. Other examples of overlay networks include virtual private networks, peer-to-peer networks and voice over IP services like Skype.

Is Mpls a overlay network?

Contrary to optical networks though, MPLS VPNs rely in a relatively tight coupling of overlays and L1 paths. (Prefer to not use the term physical paths, since as described in most cases the link between two routers is actually an overlay path).

Which three are examples of an overlay network?

Other examples of overlay network deployments include virtual private networks (VPNs), peer-to-peer (P2P) networks, content delivery networks (CDNs), voice over IP (VoIP) services such as Skype and non-native software-defined networks.

What is overlay and underlay network?

Underlay Network is physical infrastructure above which overlay network is built. An Overlay network is a virtual network that is built on top of an underlying Network infrastructure/Network layer (the underlay). Transmits packets which traverse over network devices like Switches and Routers.

What is overlay routing?

1. The concept of using an overlay network to route packets, as a result packets will follow a different route than when the normal direct Internet route is followed.

Is VoIP underlay or overlay?

Overlay networks have been around for a while; in fact, the Internet is an overlay network that, originally, ran across the underlay Public Switched Telephone Network (PSTN). In fact, in 2018 most overlay networks, such as VoIP and VPNs, run atop the Internet.

Is BGP underlay or overlay?

Defining Underlay and Overlay Networking

The Internet is an example of a Layer 3 underlay network, where Autonomous Systems run control planes based on interior gateway protocols (IGPs) such as OSPF and IS-IS, and BGP serves as the Internet-wide routing protocol.

What is Layer 3 overlay?

An EVPN VXLAN Layer 3 overlay network allows host devices in different Layer 2 networks to send Layer 3 or routed traffic to each other. The network forwards the routed traffic using a Layer 3 virtual network instance (VNI) and an IP VRF.

Is Skype an overlay network?

Skype is a peer-to-peer application which is based on overlay network where additional functionalities can be inducted without much change to the existing architecture.

What is WAN overlay?

SD-WANs are virtual overlay networks based on tunnels that carry traffic over multiple underlay networks, typically a hybrid of existing carrier services and unmanaged connections via the public Internet. However, SD-WAN overlays are inherently blind to the inner workings of underlay networks.

What is Skype architecture?

The current architecture of Skype is primarily server-based. Obviously, we do peer-to-peer media, as it’s usually best for audio & video to go directly between the two callers. Of course, if that isn’t supported, we can also relay through servers. But call signaling and chat messages are relayed through servers.
