What is a two-phase separator?

1. n. [Production Facilities] A vessel that separates the well fluids into gas and total liquid. A two-phase separator can be horizontal, vertical or spherical. The liquid (oil, emulsion) leaves the vessel at the bottom through a level-control or dump valve.

What is a phase separator used for?

Two-phase separators are used to separate well fluids into the liquid and gaseous fractions. A three-phase separator, on the other hand, separates well fluids into the water, oil, and gaseous components.

What is a three-phase separator?

The 3-phase separator is an instrumented vessel that separates well effluent into three phases—oil, gas, and water—for well testing. It was developed for land fracturing flowback and well test operations.

How do you size a two-phase separator?

Let’s start sizing of two-phase separator.
Step 1: Collect the Data.Step 2: Find Other Properties (Z factor, gas viscosity)Step 3: Calculate K (Constant used in gas capacity equation)S P/T = 1.154.Step 4: Calculate Gas Capacity Constraint (d Leff)

What is a 4 phase separator?

The Four Phase Separtor is designed to separate gas, water, oil, and solids. Our separators allow you to stay on line during well test, flowbacks, and pigging operations with accurate measurement of water, gas, and oil rates.

How do you use a 3 phase separator?

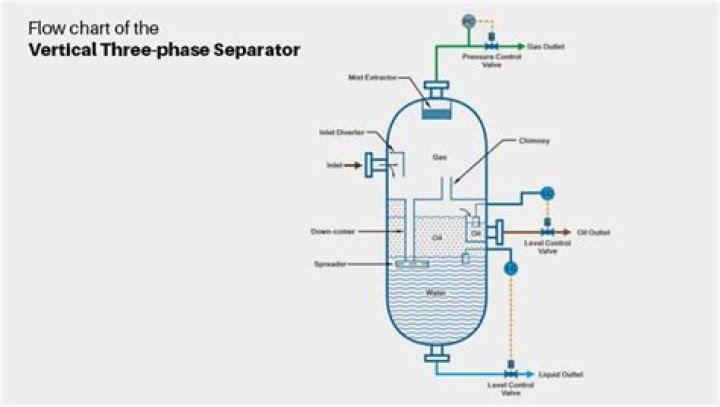

In a vertical three-phase separator, flow enters the vessel thru a side inlet as well, and is immediately met by an inlet diverter. This impact begins the separation process. A downcomer transmits the liquid through the oil-gas interface. A chimney equalizes gas pressure between the lower section and the gas section.

What are the types of separators?

Separators can be classified into two-phase and three-phase separators (commonly called free-water knockout). The two-phase type deals only with oil and gas, while the three-phase type handles oil, water and gas. Additionally, separators can be categorized according to their operating pressure.

What is a 3 phase separator in oil and gas?

A vessel that separates the well fluids into gas and two types of liquids: oil and water. A three-phase separator can be horizontal, vertical or spherical. A free-water knockout is commonly called a three-phase separator because it can separate gas, oil and free water.

What is a horizontal separator?

1. n. [Production Facilities] A vessel, with its cylindrical axes parallel to the ground, that is used to separate oil, gas and water from the produced stream. The horizontal separator can be a two-phase or three-phase separator.

What is a vertical separator?

1. n. [Production Facilities] A vessel with its cylindrical axes perpendicular to the ground that is used to separate oil, gas and water from the production stream. The vessel can be a two-phase or three-phase separator.

What is a weir in a separator?

The weir plate is designed to run the full width of the separator. This helps to minimize unwanted surges within the unit that are deleterious to efficient functioning of the separator. This is important when skim pipes are utilized or if flow rates may change in the future.

What is HP separator?

High Pressure separators are primary separation devices used for segregation of the three phases i.e. Oil, Water and Gas from the initial inlet stream coming outside the Oil Wells and moving to medium and low pressure separators before ending up in the stock tank.

How do you create a separator?

As a rule of thumb, select a vertical type if the gas to liquid ratio (V/L) is high.

Some other design tips of a vertical separator
If vessel inside diameter is less than 1 meter, flange heads are acceptable.For vessel inside diameter more than 3 meters, use vent and drain connections with a minimum size of 4 inches.

What is retention time in separator?

The retention time assures that equilibrium between the liquid and gas has been reached at separator pressure. The retention time in a separator is determined by dividing the liquid volume inside the vessel by the liquid flow rate. The retention time usually varies between 30 seconds and 3 minutes.

How does a liquid nitrogen phase separator work?

Phase Separators are used in specialized applications requiring extremely high quality, low pressure liquid nitrogen on demand. The level of liquid nitrogen inside is controlled electronically via a pressure differential system. This results in a volume of pure unsaturated liquid nitrogen.

What is a test separator?

A vessel used to separate and meter relatively small quantities of oil and gas. Test separators sometimes are equipped with different meters to determine oil, water and gas rates, which are important to diagnose well problems, evaluate production performance of individual wells and manage reserves properly.
