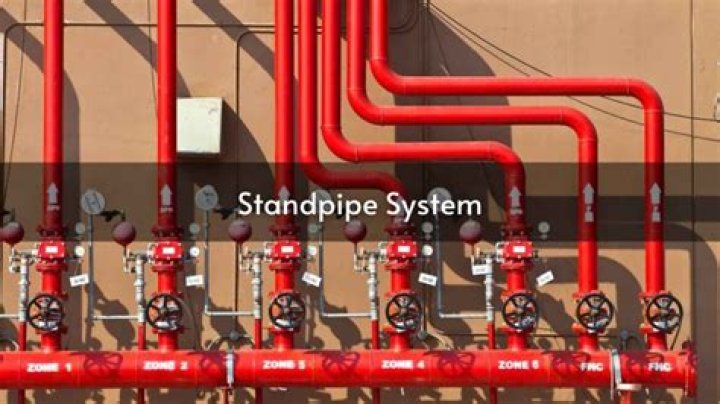

What is a standpipe sprinkler system?

Standpipe systems are a series of pipes which connect a water supply to hose connections, basically an extension of the fire hydrant system. Standpipe systems are designed to provide fire protection water for hose lines in strategically placed locations inside a building or structure.

What is the difference between standpipe and sprinkler?

The term “automatic” simply means that the system will automatically provide required pressure and flow while, in contrast, the “manual” system water supply is only required to meet sprinkler demand. The manual standpipe side of the system will require supplemental pressure and flow to be supplied by the fire service.

What is standpipe system used for?

Standpipe systems consist of piping and hose connections installed throughout a building to provide reliable water for the manual suppression of a fire by either the fire department or trained personnel.

What is difference between hydrant and standpipe?

Within the context of a building or bridge, a standpipe serves the same purpose as a fire hydrant. In many other countries, hydrants in streets are below ground level. Fire trucks carry standpipes and key, and there are bars on the truck. The bar is used to lift a cover in the road, exposing the hydrant.

What is the most common standpipe system?

A “Class I” standpipe is the most common type of fire protection standpipe system today.

How do you install a standpipe?

Need to Install a Standpipe? Here’s how:
Choose a seamless PVC or steel pipe with the appropriate threaded NPT fitting to mount the ultrasonic sensor. Cut the end of the standpipe at a 45° angle. Place the pipe as vertical as possible with an unobstructed path to the target. Mounting the pipe is the toughest part.

What is a Class 3 standpipe system?

Class III – A Class III standpipe system shall provide 1 1/2 inch hose stations to supply water for use by trained person- nel and a 2 1/2 inch hose connection to supply a larger volume of water for use by fire departments and those trained in heavy fire streams.

What do you pump a standpipe with?

The minimum pressure while flowing the required standpipe flow (500 GPM from the hydraulically most remote standpipe and 250 GPM from each additional standpipe, up to a maximum of 1000 GPM for a fully sprinklered building) shall be 100 psi at any valve outlet while flowing 250 GPM through each valve.

What is the diameter of a standpipe?

The standpipe minimum size for Class I and III is 4 inches, with a combined system minimum of 6 inches. The size of the branch lines for a hydraulically calculated system is based on the flow, pipe size and length, with the minimum dimension of 2-1/2 inches.

How many standpipes are required?

(2) Every building six (6) stories or more in height shall be provided with not less than one operable standpipe. Such standpipes shall be installed when the progress of construction is not more than 50 feet in height above grade.

How many basic types of standpipe systems are there?

There are three classes of standpipes found within buildings: Class 1, 2, and 3. A Class 1 standpipe is designed for firefighting personnel only as it is equipped with just a 2½-inch outlet (see photo 1).

What is a standpipe reservoir?

A standpipe is a ground-supported storage tank with a height that is greater than its diameter. Its design helps generate storage and pressure with a low upfront cost compared to elevated tank geometries.

What is dry stand pipe?

A dry standpipe is a network of in-place piping allowing connection of a water supply (usually a fire department mobile apparatus known as a pumper) to a dedicated inlet at street level, with hose outlet valves on each floor.

Which pipe is used in fire fighting?

Fire fighting pipe is a type of normal carbon steel pipe used to convey fire suppression agent such as water or gas. Usually it is red in color. But light-wall pipes have a galvanized exterior of a silvery appearance. Installation of red steel pipe is limited to wet pipe sprinkler systems only.

What are the components of a standpipe system?

What are the components of a standpipe system? Hose stations,water supply,water-flow control valves,risers,pressure-regulating devices,fire dept connection.

What are the three main considerations that determine the required standpipe system installation?

What are the three main considerations that determine the required standpipe system installation? The building height above or below the level of fire department access, whether a fire sprinkler system is installed, the use and occupancy of the building.

How much does a standpipe cost?

Standpipe Systems. Costs are roughly $5,000 per floor per standpipe required. Pipe routing might be an issue because the piping generally will be 4 inches or larger in diameter.

What is an automatic sprinkler system?

An Automatic Fire Sprinkler System is a network of water-filled pipes which starts at your domestic water service line and ends with strategically spaced fire sprink- ler heads located throughout your home. A sprinkler system activates based upon the amount of heat produced by a fire, not the amount of smoke.
