Can sprinkler heads be above a drop ceiling?

NFPA-13 states that sprinkler protection is NOT required above hung ceilings if the area above has non-combustibles even with small openings in the ceiling.

What kind of sprinkler is suspended from the ceiling?

A pendent (sometimes spelled “pendant”) fire sprinkler hangs from above-ceiling pipes and distributes water in a domed or conical pattern using a convex deflector.

Are sprinklers required in ceiling voids?

A minimum ceiling void of 150mm is required when concealed sprinkler heads are installed.

What is the minimum clearance required below ceiling mounted sprinklers?

The minimum vertical clearance between sprinklers and material below shall be 18 inches (45.7cm).

Are missing ceiling tiles a fire hazard?

Missing ceiling tiles

A missing ceiling tile can easily allow hot products of combustion from a fire to rise through the ceiling opening and collect in the space above the ceiling. This effect can severely delay the activation time of automatic fire sprinklers that have been installed at the ceiling level.

What are drop out ceilings?

Approved drop-out ceiling panels can be installed beneath fire sprinklers. When exposed to heat from a developing fire, drop-out ceiling panels soften, distort, and fall from the ceiling grid. Heat from the growing fire activates the sprinkler which, unimpeded by the panels, controls or extinguishes the fire.

How are sprinkler systems suspended?

Originally developed to hide the underside of the floor above and to provide sound attenuation within a room, they generally consist of grids suspended from concrete ceilings by wires and holding a variety of tiles and light fittings.

What are the four types of sprinkler systems?

Today, there are four main types of sprinkler systems:
Wet pipe.Dry pipe.Preaction.Deluge.

What is recessed pendent sprinkler?

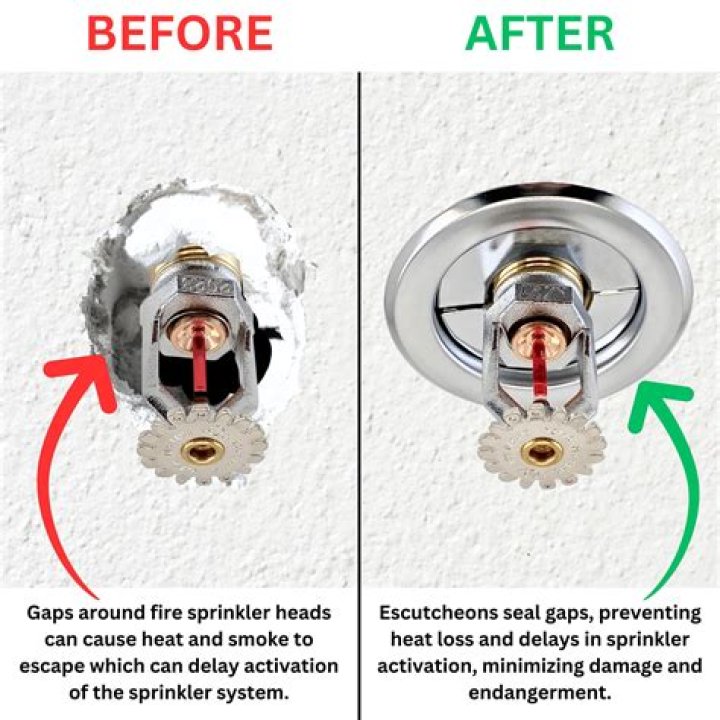

Pendent and/or Recessed – Unlike the concealed sprinklers, these heads are protruding and hanging out of the ceiling. Although these types of sprinkler head do not need a concealed cover plate, it still requires the use of an escutcheon to cover the sheet rock surrounding it.

What is a combustible concealed space?

Combustible concealed spaces formed where ceilings are attached directly to the underside of composite wood joists or onto metal channels no deeper than 1 inch (2.5 centimeters) do not require sprinkler protection where the joist channels are fire stopped at intervals of not more than 160 cubic feet (4.5 cubic meters)

What are the different types of fire sprinkler heads?

There are 4 common varieties of fire sprinkler heads: pendent, upright, sidewall & concealed – each with their own particular use.

What is the 18 inch rule?

The purpose of the “18-inch rule” is to prevent storage or any other obstruction from interfering with the spray of water from a sprinkler head during a fire. It is intended to prevent a situation in which the obstruction is within 18-inches of the ceiling and might be between the sprinkler head and the fire.

How far does a sprinkler head need to be from a wall?

Four-inch minimum spacing from walls and maximums vary with room shape and size, which is why standard spray sprinklers have four-inch minimum spacing from walls and maximums. The minimum sprinkler distance from walls is four inches for all standard sprinkler heads. The distance from an end wall is 10.

How close can a sprinkler head be?

Current fire safety codes require sprinkler heads always to be a minimum of 6 feet apart from one another to avoid cold soldering.

Are acoustic ceiling tiles flammable?

All of Ceilume’s ceiling tiles and panels in all colors and finishes are UL 94 V-0 for flammability.

How many inches away from the ceiling should materials be stored?

All storage, regardless of the type, shall be kept at least 24 inches below a ceiling in non-‐sprinklered areas and at least 18 inches below the ceiling in sprinklered areas of the building.

Why are ceiling tiles important?

Well, properly installed ceiling systems allow smoke detectors, heat detectors and fire sprinklers to operate correctly in the event of a fire. Breaking, displacing or removing ceiling tiles enables hot gases and smoke to rise and accumulate above detectors and sprinklers.
