What do you put behind a retaining wall?

In order to provide proper drainage, at least 12 inches of granular backfill (gravel or a similar aggregate) should be installed directly behind the wall. Compacted native soil can be used to backfill the rest of the space behind the wall.

Do I need fabric behind my retaining wall?

Whether the wall is made from stones, bricks or wood, it is important to provide a barrier between the building blocks and the soil. Landscape fabric is thin and sturdy and is a simple way to preserve a retaining wall’s construction.

What do you use for drainage behind a retaining wall?

Gravel Backfill

For proper drainage, the first 12 inches of space behind a retaining wall should be filled with crushed stone or gravel. This is so that when water gets into the space, it does not become bogged down in soil but instead can flow down the wall to the drains or weep holes.

What is the best backfill material?

The best material for the backfilling of a retaining wall is gravel, and it should be well graded. The main reason for using gravel is because it does not retain water (small void ratio); hence lateral loads experienced will be minimal. You should also have weep holes for draining excess water that may be retained.

Does a 2 foot retaining wall need drainage?

These walls need a drainage system regardless of the wall height. If there are poor draining soils such as clay behind the wall, there needs to be drainage incorporated the wall system. Clay when wet is very weak, so it is essential to provide a way for water to escape from behind the wall.

How do you stop a retaining wall from moving?

DO start with a good foundation. Your retaining wall will only be as strong its support system. For a stacked-block retaining wall that’s no higher than four feet, a trench filled with three inches of crushed rock will help keep the wall from shifting and settling.

How do you waterproof a timber retaining wall?

More videos on YouTube
YOU WILL NEED. 1 litre of Water Based Bitumen Paint will cover approximately 0.75m(2) of wall area.EQUIPMENT. Water Based Bitumen Paint is best applied by brush.NUMBER OF COATS. 2 coats are required and should be applied at 90° to each other.DRYING TIME. Allow 30 minutes between coats. CLEAN UP. TIPS.

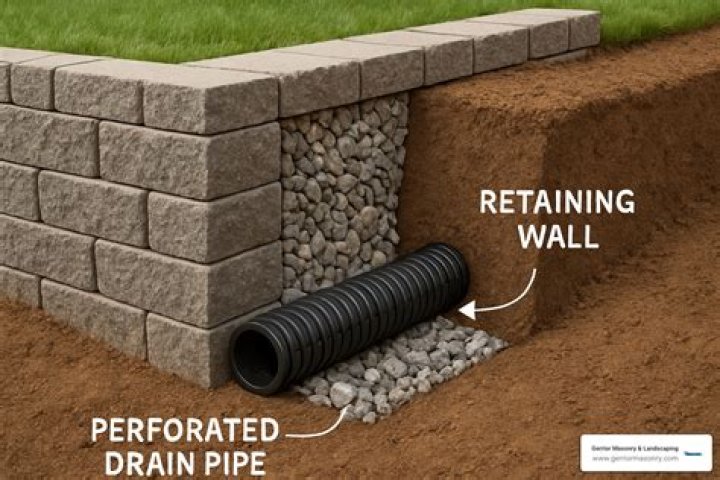

How do you put a G pipe behind a retaining wall?

After laying the first course of blocks, lay an agricultural drainage pipe with a geotextile sock (ag-pipe) behind the wall on a bed of 10-20mm clean, free drainage material. Ensure that the drainage pipe: Has at least a 1 in 100 fall away (1cm drop over 1m length of wall)

Can you use pea gravel behind retaining wall?

Do not use smooth river rock, pea gravel, or uniform sand for the base material. Round material like this does not hold its shape, is difficult to compact, and will make it difficult to level the blocks.

Are weep holes required on retaining wall?

Weep holes allow water to escape from behind the wall. These holes should be regularly spaced in the horizontal direction. Retaining walls with a height greater than a few feet should also have weep holes that are regularly spaced in the vertical direction, forming a grid pattern.

What is the best material to backfill a retaining wall?

What Should You Use to Backfill a Retaining Wall? The best materials for backfill are native soil for the base and top, with gravel or aggregate forming the body of the backfill between the native soil.

What are backfill materials?

What Is Backfill? Backfill is the material used to refill an excavated hole or trench in your yard. This material can be the excavated soil, a mixture of sand and gravel, or commercial products. The process of backfilling usually takes place in layers.
