What does open limit device on furnace mean?

An open high limit error on a furnace means the heating system turns off the fuel to prevent overheating. Ultimately, it is a key safety component of your furnace. A high limit error could be caused by Poor Airflow from the furnace. Start with the easiest thing, check your furnace filter.

How do you reset an open limit switch on a furnace?

How to Reset Furnace Limit Switch. Once the problem affecting your furnace has been identified and corrected, you should reset your furnace to continue enjoying the warmth on your home. In most gas furnace, this is done by simply shutting off the power supply and turning it back on after 20 or so seconds.

How do I know if my limit switch is bad on my furnace?

Check Your Limit Switch

“If the high limit switch was bad, the furnace should not fire. When the high limit switch trips, the flame/heating element will be shut off and the blower will continue to run to clear the heat. The blower will continue to run until either the system is reset, or the limit switch closes.”

Should a furnace limit switch be open or closed?

The high limit switch should be closed when the furnace is cold, so you should get a zero reading; if you get the opposite, replace the switch. To continue testing the fan switch, replace the wires and turn on the furnace. Wait for it to warm up and for the blower to start circulating warm air.

What causes high limit opening?

The limit might trip after start-up due to a restrictive or dirty air filter. Some high performance air filters do not allow very much airflow through them and will cause a furnace to overheat due to a lack of air going across the heat exchanger. Another reason could be a bypass humidifier.

How much does a limit switch cost?

You’ll need to get a limit switch from the same company that makes your furnace. This component could cost anywhere from $4 to $25, depending on your original equipment manufacturer.

Can you bypass furnace limit switch?

Yes, you can bypass the high limit switch for testing.

How do you manually reset a limit switch?

The contacts open (limit) at a factory set point. Once that limit is reached, a human must manually press the red reset button for the switch to return back to the normally closed state.

How does a furnace limit switch work?

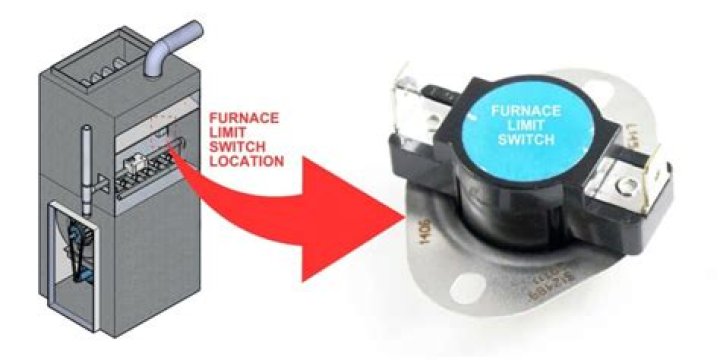

A limit switch is a device that’s located under your furnace’s supply plenum. It reads the temperature of the plenum and waits until it gets appropriately warm. If the temperature inside of the plenum gets too hot, it shuts off the gas supply to your burners to prevent your furnace and heat exchanger from overheating.

What happens when a limit switch goes bad?

Limit Switch Malfunctions

A bad switch also can prevent a furnace from operating at all. If the switch has completely failed and is stuck in the open circuit (off) position, the furnace won’t run. The same effect can result from repeated overheating.

Why would a furnace trip on high limit?

A high limit switch will keep tripping due to a dirty flame sensor, short cycling, obstructed airflow, or a defective switch. These lead to overheating within the gas furnace that triggers tripping as a safety measure to prevent fires. Clean and replace dirty and worn-out parts to fix the problem.

Why is my furnace going off on high limit?

Dirty air filters are a common cause of furnace cycling problems. Air filters trap dust, dirt and debris. With time, the filter becomes clogged and restricts airflow to the equipment’s heat exchanger. When this happens, the heat exchanger overheats, forcing the high-limit switch to trip and the furnace to cycle off.
