lvl framing, check these out | Can you use LVL for framing?

Product Overview. Versa-Stud® laminated veneer lumber (LVL) framing is engineered to deliver strong, stiff, straight walls, resulting in a solid feel, smooth surface, and high-quality finish.

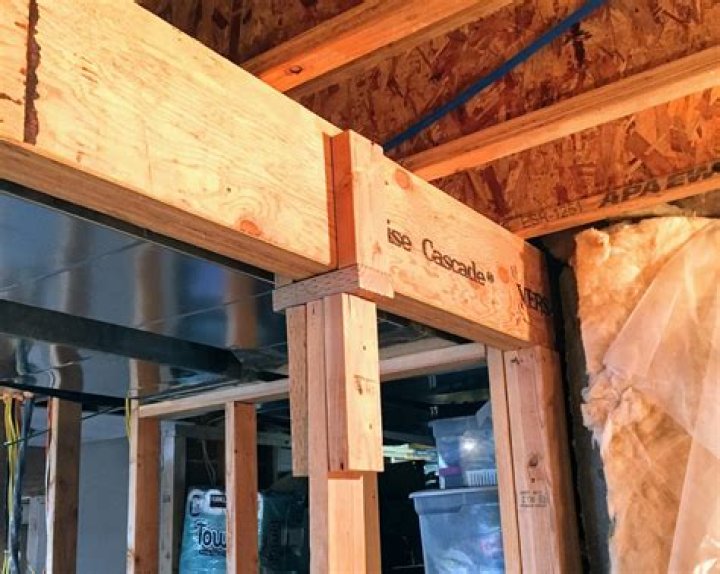

Can you use LVL for framing?

MT-LVL E12 is now available in cross sectional sizes of 90×35 and 90×45 for wall and general framing applications. With all the stability and dimensional benefits of LVL it means you can spend less time straightening walls… and more time relaxing.

Is LVL stronger than wood?

Laminated veneer lumber (LVL) studs can provide ultimate strength against wind and shear-loads and can be up to two and a half times stronger than standard framing lumber of the same dimension in compression and tension, which means a wood-framed house can be designed and constructed to withstand 100 mph or more .

What is a LVL joist?

Laminated veneer lumber (LVL) is one of the most widely used engineered wood products for constructional applications. It is a composite product manufactured from multiple thin layers of veneer that are aligned with the length of the finished lumber.

How far can a 2×4 LVL span?

Due to its strength, an LVL beam can span up to 60 feet and is much stronger than traditional lumber. Generally, you can find LVL beams in 4-foot increments starting at 24 feet and going up to 44 feet long, with special orders up to 60 feet. LVL beam thickness is usually between 1 ¾ and 7 inches.

Is glulam the same as LVL?

A glulam beam looks like a stack of 2 x 4s (or larger lumber) glued together on their broadsides. This is in contrast to other engineered members, such as LVL (laminated veneer lumber) and Microlam beams, which look like very thick plywood, with very thin layers of wood glued together to form a thicker mass.

How much do LVL beams cost?

LVL beams cost on average $3 to $12 per linear foot for the material or $50 to $200 per foot installed. LVL beams are more cost-effective and durable than regular wood beams. LVL beams are fire-resistant, shrink-proof, and easy to install, especially in long spans.

Can you drill through a LVL?

Whenever possible, avoid drilling vertical holes through LVL beams unless the beam width is at least 3-1/2 inches. Prior to drilling any vertical holes, an engineer or architect qualified in wood design should be consulted.

What size LVL do I need for a 20 foot span?

What size lvl beam for a 20 foot span:- as per general thumb rule, for a 20 foot span, size of LVL beam or GLULAM should be 10 to 12 inches deep and 3-1/2 inches or 2ply wide, thus you need something like a 10-12″ GLULAM or LVL to span upto 20 feet and can use simple 2×14 dimensional lumber at 16″ apart from centre as

Can you nail into a LVL beam?

The wall you are adding is a non bearing wall that will not hinder the bearing capacity of the beam. Nail it in place using standard nailing practice. In other words, don’t load it up with no more nails than you need, one nail staggered every 16″, 2 on the ends.

What is the difference between an LVL and I joist?

The I-joists are made from lumber flanges, OSB webs and cured adhesive. LVL (laminated veneer lumber) beams are manufactured with multiple layers of thin wood assembled with adhesive. Stark Truss engineered LVL beams are strong, consistent and straight.

What is the purpose of a LVL?

LVL is suitable for use as beams, trusses, planks and rafters. When cross-bonded for increased stiffness it can be used to form wall and floor panels with load-bearing capacity. While frequently used solely as a concealed structural component of a building, finished appearance grades are also used.

Are LVL beams treated?

The beauty of LVL is it is built to engineered specifications in a factory. With LVL now being offered with pressure treatment, it is approved for outdoor decks. This offers the professional deck builder the ability to eliminate the waviness that can occur in traditional lumber framed decks.

What size LVL Do I need to span 18 feet?

What size lvl beam for a 18 foot span:- as per general thumb rule, for a 18 foot span, size of LVL beam or GLULAM should be 9 to 10 inches deep and 3 inches wide, thus you need something like a 9-10″ GLULAM or LVL to span upto 18 feet and can use simple 2×12 dimensional lumber at 16″ apart from centre as floor joists

What size LVL Do I need to span 24 feet?

LVL beam size for a 24 foot span:- as per general thumb rule, for a 24 foot span, size of LVL beam or GLULAM should be 12-14 inches deep and 4 inches wide, thus you need something like a 12-14″ GLULAM or LVL to span upto 24 feet used for residential building or projects.

What size LVL Do I need to span 16 feet?

What size lvl beam for a 16 foot span:- as per general thumb rule, for a 16 foot span, size of LVL beam or GLULAM should be 7 to 8 inches deep and 3 inches wide, thus you need something like a 7-8″ GLULAM or LVL to span upto 16 feet and can use simple 2×10 dimensional lumber at 16″ apart from centre as floor joists

Is LVL cheaper than steel?

LVL beams are cheaper than steel beams; however, steel beams take up less space and are easier to install inside a ceiling.

Which is better LVL or glulam?

It has been likened to laminated veneer lumber (LVL) as they are both similar in strength, although glulam offers wider design possibilities because of its aesthetics and a higher level of finish quality.

What is the strongest engineered wood beam?

Power Beam® – 3000Fb – 2.1E – 300F

Power Beam® is the strongest engineered wood product (EWP) on the market with design values of 3000Fb – 2.1E – 300Fv.
