jconsole thread dump, check these out | How do I get jconsole thread dump?

How do I get jconsole thread dump?

Right-click the ePO Application Server service (Tomcat) and click Restart. Double-click jconsole.

Navigate to the Thread Dumps tab and do the following:
Click Request a Thread Dump. Click the Logfile tree icon.Right-click in the bottom pane and click Select All.

How do you get a heap dump from jconsole?

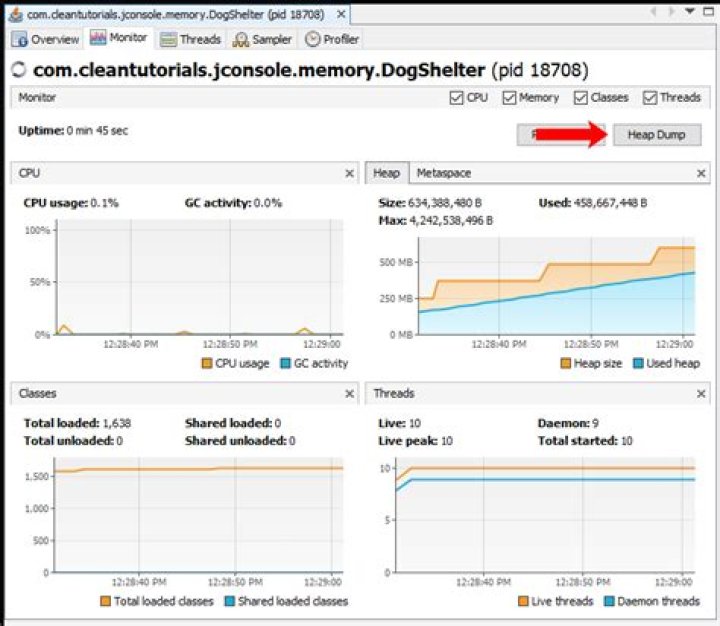

Create a Java heap dump using JConsole
Use JConsole/JMX to connect to the running Wowza Streaming Engine.On the MBeans tab, in the com. sun. In dumpHeap parameters, enter the following information: p0: [heap-output-path] p1: true – do a garbage collection before dump heap. Click the dumpHeap button.

How do I read a thread dump file?

To find the long running threads, highlight all the thread dumps you want to check, and then click on the binoculars: In the pop up dialogue, click start detection, and you’ll get your long running threads just below the dumps themselves: In my example, each thread dump has 157 threads.

How do you take a thread dump in Kubernetes pod?

Installation Steps
Install the Coherence cluster. Install a Coherence cluster if you don’t have one running: Ensure the pods are running: Open a terminal window in one of the storage nodes: Use the jcmd command to extract the heap dump: Copy the heap dump to local machine: Single command usage.

Where can I find JConsole?

The jconsole executable can be found in JDK_HOME/bin, where JDK_HOME is the directory in which the Java Development Kit (JDK) is installed. If this directory is in your system path, you can start JConsole by simply typing jconsole in a command (shell) prompt.

How do I access JConsole remotely?

To connect JConsole to server process, in the Remote Process section, specify the URL service:jmx:rmi:///jndi/rmi://localhost:2047/fmq and credentials pertaining to the server. Default user name and password are admin and passwd respectively.

When should I take heap dump and thread dump?

A thread dump is a dump of the stacks of all live threads. Thus useful for analysing what an app is up to at some point in time, and if done at intervals handy in diagnosing some kinds of ‘execution’ problems (e.g. thread deadlock). A heap dump is a dump of the state of the Java heap memory.

How do I get a heap dump?

Steps:
Start administrative console.In the navigation pane, click Troubleshooting > Java dumps and cores.Select the server_name for which you want to generate the heap dump.Click Heap dump to generate the heap dump for your specified server.

What is heap dump and thread dump?

Thread dump: thread dump is the snapshot of threads, we can use thread dump identify is there any struc threads or blocking threads, or if there are any dead locks heapdump:heap dump is the dump of heap it is based on new ,old generation objects of JVM useful for analysing some memory issues, heapdump used to identify

How do I analyze a heap dump file?

Open the heap dump in Eclipse Memory Analyzer using the option File –> Open Heap Dump. First, it will prompt you to create a leak suspect report. The user can create it or skip it. The “overview” tab of the memory analyzer will show the total size of the heap and a pie chart of object size.

What is NID in thread dump?

nid is Native Thread ID : Crucial information as this native Thread Id allows you to correlate for example which Threads from an OS perspective are using the most CPU within your JVM etc.

How does VisualVM analyze thread dump?

Right-click the application node in the Applications window and choose Thread Dump. Click the Thread Dump button in the Threads tab of the application tab.

Java VisualVM – Working with Local Applications
Open. Thread Dump. Heap Dump. Profile. Profiler Snapshot. Application Snapshot. Enable Heap Dump on OOME.

How use JCMD heap dump?

Taking A Heap Dump With jcmd (Java 7 / 8)
Execute jcmd without any parameters to list all JVM processes, starting with a PID. The command jps also does the job.Execute: jcmd [PID] GC. heap_dump [PATH] to create a heap dump.Enjoy the memory leak analysis 🙂

What is heap dump?

A heap dump is a snapshot of all the objects in the Java Virtual Machine (JVM) heap at a certain point in time. The JVM software allocates memory for objects from the heap for all class instances and arrays.

How do you take a thread dump and heap dump in Linux?

Step 1: Find the PID of the java process. Java JDK ships with the jps command which lists all java process ids running on the machine including the PID of the process.Step 2: Request a Thread Dump from the JVM. Step 3: Request a Heap Dump from the JVM.

What is the purpose of JConsole?

Introduction. The jconsole tool is a JMX-compliant graphical tool for monitoring a Java virtual machine. It can monitor both local and remote JVMs. It can also monitor and manage an application.

How do I monitor with JConsole?

So to use jconsole for monitoring your application, you would need to compile and execute your code first and while your code is executing
Start -> Run -> jconsole.exe and hit/press Enter.Select the application which you want to monitor and then click Connect .

What is the use of JConsole?

You can use JConsole to connect to a running Java virtual machine, and then monitor the memory usage and thread activity. You can obtain class-loading information, plus information on the JVM and the operating system.
