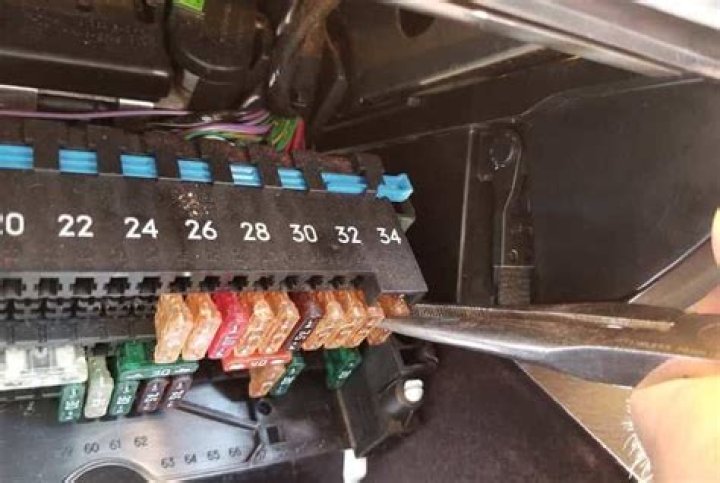

Is there a fuse for the instrument cluster?

The fuse may be labeled gauges, cluster, or something similar. This fuse should have power on both sides with the ignition in the on position. If the fuses check out okay, then check for power at the instrument cluster. If the instrument cluster has power, then check for ground.

How do I reset my instrument cluster?

Push and release the Sel/reset button button 3 times repeatedly. The instrument cluster begins its self-test. Each successive press of the Sel/reset button initiates a new cycling of all the gauges. To end, turn the ignition switch to OFF, or vehicle speed exceeds 1.5 mph.

What causes instrument cluster to stop working?

To summarize, here are the most common causes of why your instrument cluster stops working: Computer faults. Blown fuse. Loose connectors.

Where is the fuse for dash cluster on 04 Silverado?

The 2004Chevrolet Silverado has an instrument cluster fuse that can be found inside the main fuse box of the vehicle. This box is located at the front of the engine compartment. To find it, You will first need to go to the front of Your car, and open the hood. Use the prop arm to keep it secure.

Where is the fuse for the instrument cluster 2003 Silverado?

The instrument cluster fuse is located in the instrument panel on the 2003 Chevrolet Silverado.

Is there a fuse that controls the speedometer?

So, in most cases, odometers don’t have their own fuse in the fuse box. As such, because odometers and speedometers use the same fuse, the most likely outcome is that your speedometer will also stop working if the odometer stops working due to a blown fuse.

Can you drive without instrument cluster?

Can I drive my vehicle while the instrument cluster is out for repair? Yes, you can still start and run your vehicle without the instrument cluster.

What are the common problems of the instrument cluster?

Some of the more common failures include:
Erratic or non-functional gauges & inaccurate readings.LCD not Stuck or fluttering needles on gauges.Burned out indicator lights.Burned out/dark spot backlighting.Loss of LCD display or erratic operation (number 8 showing as 0)

Why won’t my cluster lights turn on?

If the dashboard isn’t lighting up at all, your car might have blown a fuse. Removing the old fuse and replacing it should get the lights working again. While the new fuse may do the trick, it could also indicate a deeper electrical problem.

How do I know if a fuse has blown?

Remove the fuse from its holder. In some cases you may need a small screwdriver to unscrew the fuse holder cap. Look at the fuse wire. If there is a visible gap in the wire or a dark or metallic smear inside the glass then the fuse is blown and needs to be replaced.

How do you replace instrument cluster lights?

Next remove the instrument cluster bezel (plastic window) to access the cluster retaining screws. Tilt the cluster forward and disconnect the electrical connectors (Photo 2). Remove the cluster, turn it over and locate the bulb sockets. Remove the old bulbs and insert the new ones (Photo 3).

Where is the speedometer sensor?

Hello, the speed sensor for the speedometer is located on the transmission at the rear extension housing. The housing is the part that the driveshaft slip yoke (front part of driveshaft) would be position at. The sensor is attached with a bolt that needs to be removed, it has a two wire connector going to it.

Why is my speedometer not working?

The most common causes of a speedometer that stopped working include are a faulty speed sensor, a broken gear on the speedometer, damaged wiring, or a faulty engine control unit.
