Is service factor the same as safety factor?

Service factors are used to account for higher torque conditions of the equipment to which the coupling is connected. … Safety factors are used in the design of a coupling.

What is service factor?

In simple terms, the service factor is the ratio of the gearbox rated horsepower (or torque) to the application’s required horsepower (or torque). Service factors are defined by the American Gear Manufacturers Association (AGMA), based on the type of gearbox, the expected service duty, and the type of application.

How do you calculate service factor?

Calculate or determine your service factor by choosing the service factor that corresponds to your hp and various RPM levels. For example, according to the table, if you have a 1HP motor and you operate it at 3600 RPM continuously, your service factor is 1.25.

The design factor is defined for an application (generally provided in advance and often set by regulatory building codes or policy) and is not an actual calculation, the safety factor is a ratio of maximum strength to intended load for the actual item that was designed.

What is called safety factor?

The definition of the safety factor is simple. It is defined as the ratio between the strength of the material and the maximum stress in the part. When the stress in a specific position becomes superior to the strength of the material, the safety factor ratio becomes inferior to 1, this when there is danger.

Motor service factor (SF) is the percentage multiplier that a motor can handle for short periods of time when operating within its normal voltage and frequency tolerance. In other words, it is a fudge factor that give extra horsepower when it’s occasionally needed. A SF is an operational margin.

What does service factor mean on gearbox?

What is a service factor exactly? It’s the ratio of horsepower your gear reducer can mechanically handle compared to the horsepower required for your application. Put simply, it is how overdesigned the gearbox is when it comes to handling the application load.

What does service factor mean on pool pumps?

The Service Factor is a measure of the capacity at which a motor can operate without overload or damage. A motor’s effective horsepower, or total horsepower, is the actual power output of the motor. You can determine this by using the nameplate to multiply the horsepower and the service factor together.

Besides accounting for severe load conditions, service factors can be used to compensate for other variables in an application such as pulley diameter, belt length, and speed. Smaller diameter pulleys cause a belt to flex more, creating higher fatigue stress in the belt and reducing life.

What is the meaning of service factor if its value is 1.0 What does it mean?

Motor “service factor” is probably the most misunderstood value on a motor nameplate. To most it seems quite simple; if it is a 1.0 you can run a motor to 100% load, if it is 1.15, then it can be loaded to 115% of its rated load.

How do you find the factor of safety?

The “safety factor” is the ratio between the force that will be applied to a component in a system and the minimum breaking strength of the component. To calculate the safety factor, divide the gear’s minimum breaking strength by the maximum force it will support.

How do you determine the safety factor?

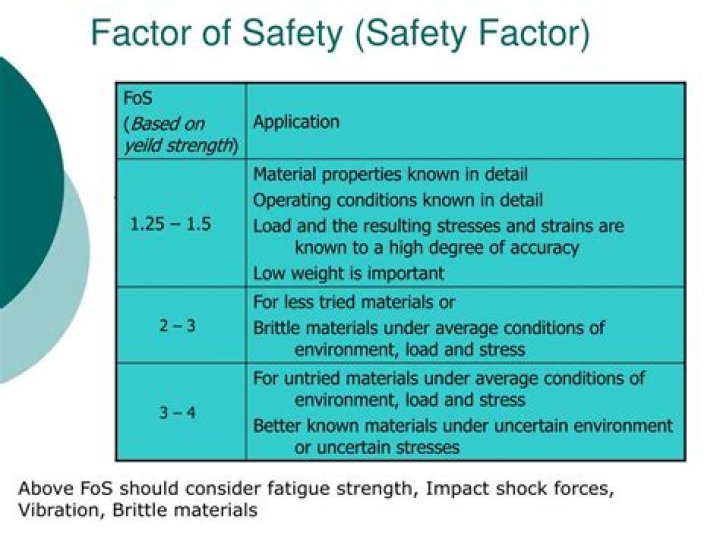

A very basic equation to calculate FoS is to divide the ultimate (or maximum) stress by the typical (or working) stress. A FoS of 1 means that a structure or component will fail exactly when it reaches the design load, and cannot support any additional load.

The factor of safety is the ratio of the allowable stress to the actual stress: A factor of safety of 1 represents that the stress is at the allowable limit. A factor of safety of less than 1 represents likely failure.

What is the purpose of a safety factor?

A factor of safety increases the safety of people and reduces the risk of failure of a product. When it comes to safety equipment and fall protection, the factor of safety is extremely important. If a structure fails there is a risk of injury and death as well as a company’s financial loss.

What is the intent of the safety factor?

The main purpose of the safety factor is to increase the strength of the structure so that it remains safe and free from all failures. It also remains ready for all immeasurable future effects on it.

Does motor Fla include service factor?

Service Factor is defined as a motor’s ability to operate under a short-term load. The higher a motor’s S.F. rating is, the more durable the motor. Full Load Amps, or F.L.A., represents the amount of current the motor is designed to draw at the rated horsepower.

If the theoretical life expectancy of this motor was 10 years, it could be expected to last 1.5 years when operated continuously at the SF load. Although many other factors may also affect motor life, this example illustrates how important temperature considerations are in the proper application of the equipment.

How do you calculate amp service factor on a motor?

For example, the FLA or full load amps of the motor above is 10.8 amps at 115 volts. The service factor or S.F. is 1.5, making the service factor amps 16.2 (rounded down to 16 on the motor tag) at 115v because 10.8 x 1.5 = 16.2.
