how to scale dimensions in autocad, check these out | How do I scale dimensions in AutoCAD 2021?

How to scale up in AutoCAD – Window select the object(s), type SCALE, and then specify a number larger than 1. Hit Enter. The size of the object(s) will SCALE UP by that scale factor. Refer to Figure 1 to see the differences in scale factors.

How do I scale dimensions in AutoCAD 2021?

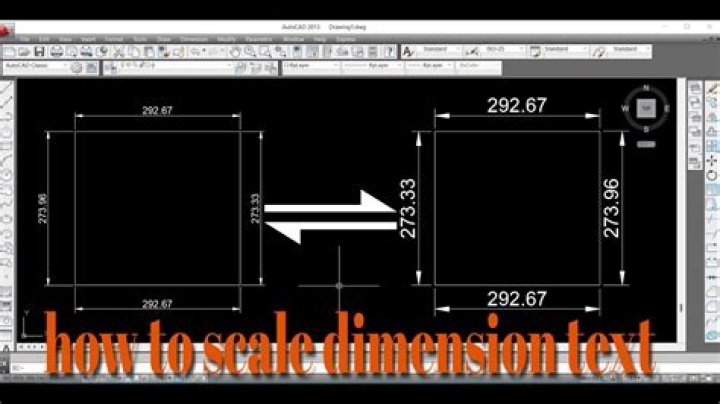

To Set the Overall Dimension Scale
Do one of the following: In the Dimension Style Manager, Styles list, select the style you want to change.Click Modify.In Modify Dimension Style dialog box, Fit tab, under Scale for Dimension Features: Click OK.Click Close to exit the Dimension Style Manager.

How do you scale down dimensions?

If you want a smaller scale, you can divide the foot to inches conversion by a larger number. Whatever number you divide it by will be the size of your scale. For example, if you divide 480 by 20, the scale is now one twentieth of the original structure.

How do I change dimension values in AutoCAD?

To Change How the Value of a Dimension Is Expressed (AutoCAD Mechanical Toolset)
In the drawing area, select the dimensions you want to edit. Click Power Dimensioning tab Dim Text panel expander.In the Primary Units drop-down, select the dimension type. Click Power Dimensioning tab Close panel Close Editor.

How do I scale a dimension space in AutoCAD?

To Set the Dimension Scale for Model Space Dimensions in Layouts
Click Home tab Annotation panel Dimension Style. In the Dimension Style Manager, select the style you want to change. In Modify Dimension Style dialog box, Fit tab, under Scale for Dimension Features, select Scale Dimension to Layout (Paper space).

How do you dimension in mm in AutoCAD?

Solution:
In the command line enter DIMSTYLE.In the Dimension Style Manager, click New.In the New Dimension Style dialog box, select a Name, Start With Style, and select Use For: All Dimensions. On the Primary Units tab, enter m in the Suffix.Choose Decimal in the “units format”Click OK.Close.

How do I manually change dimensions in AutoCAD?

To Place Dimension Text Manually
Click Home tab Annotation panel Dimension Style. In the Dimension Style Manager, select the style you want to change. In the Modify Dimension Style dialog box, Fit tab, under Fine Tuning, select Place Text Manually When Dimensioning.Click OK.

What is a scale dimension?

The scale dimension – dimension, regarded as the degree of freedom in the theory of Infinite Hierarchical Nesting of Matter, which characterizes the location of all known objects in the Universe at large-scale ladder of levels of matter.

How do you find the scale of a drawing in AutoCAD?

To Check the Scale of a Scale Area or Viewport
Click View tab Viewports panel Scale Monitor. Find. The Scale Monitor dialog box is displayed.In the drawing area, move the cursor over the scale area (or a viewport ) and check the Scale Monitor dialog box.Press ENTER to exit this command.

How do you find the scale factor in AutoCAD?

For calculating the scale factor from an engineering drawing scale, only multiply the feet by 12.

For calculating scale factor out of architectural drawing scale:
Choose your scale. For example: 1/4” = 1”Invert the fraction and multiply by 12 to get: 4/1 x 12 = 48.Your scale factor is 48.
