How do you manually install a rivet?

The correct way to set the rivets is by nesting the bottom cap in the correct sized divot in the rivet setting base, and then using a mallet to pound down on the top cap with a rivet setting shaft that has a concave end. This will keep the caps of the rivets slightly rounded rather than hammering them flat.

Can you install rivets without a rivet gun?

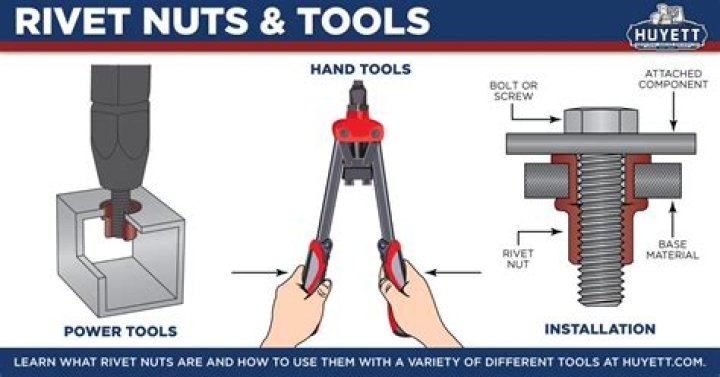

To install rivet nuts without a tool, you will still need more than just your bare hands. You will also need a bolt that 1) has its own nut, and 2) can fit into the rivet nut. You should also have a washer or larger bushing that can fit around the bolt fairly tight.

Do you have to drill a hole for a rivet?

The basic rule is that you do not drill rivet holes closer to the edge than two diameters of the rivet size used. For 1/8″ rivets this would mean that the centerline of any hole would be at least 1/4″ away from the edge of the skin (material).

Are rivets better than screws?

Compared to screws, rivets hold much better. They are impossible to open and won’t shake loose. This is because the screw only has a head on one side whereas the rivet is supporting both sides. This is also important in the transport process where the frame is subject to vibration.

Are rivets permanent?

A rivet is a permanent mechanical fastener. On installation, the rivet is placed in a punched or drilled hole, and the tail is upset, or bucked (i.e., deformed), so that it expands to about 1.5 times the original shaft diameter, holding the rivet in place.

Can you replace rivets with screws?

The need to replace rivets with screws may arise from a mechanical failure of the rivets or from a need for access behind some riveted sheet metal. It is your choice whether you utilize a simple sheet-metal screw or a short machine screw with a nut to hold the screw in place.

What happens if a rivet is too long?

Match Rivets to Material Thickness

Actual rivet length is longer that the grip range. If the rivet’s grip is too short, it creates a weak joint. If the grip is too long, the cost of the rivet will be unnecessarily high and the rivet may interfere with blind-side clearance.

Why are planes riveted and not welded?

One reason that airplanes are manufactured with riveted joints instead of welded joints is because the aluminum materials used in their construction isn’t tolerant of heat. Most commercial aircraft are designed with an aluminum body. Not only is aluminum is inexpensive and readily available; it’s also lightweight.

Are rivets waterproof?

Standard: The most common and the least expensive, these blind rivets are not watertight and aren’t as strong as other types of fasteners. Sealed: Similar to standard rivets, the mandrel on this rivet is completely enclosed, making it watertight.

Why use pop rivets instead of screws?

Screws provide convenient disassembly and reassembly while rivets provide economical and reliable fastening. The choice of using threaded fasteners, such as machine screws, or rivets depends on many factor and is complicated by the wide range of fasteners available.
