How many kw can a 6mm cable take?

do you think an 8.5kw is too big? Well 6mm tandE takes 47A IF clipped direct, and not to0 long of a run, say about 10-15meters. That means that 6mm is ok for 10.5KW showers (SOMETIMES).

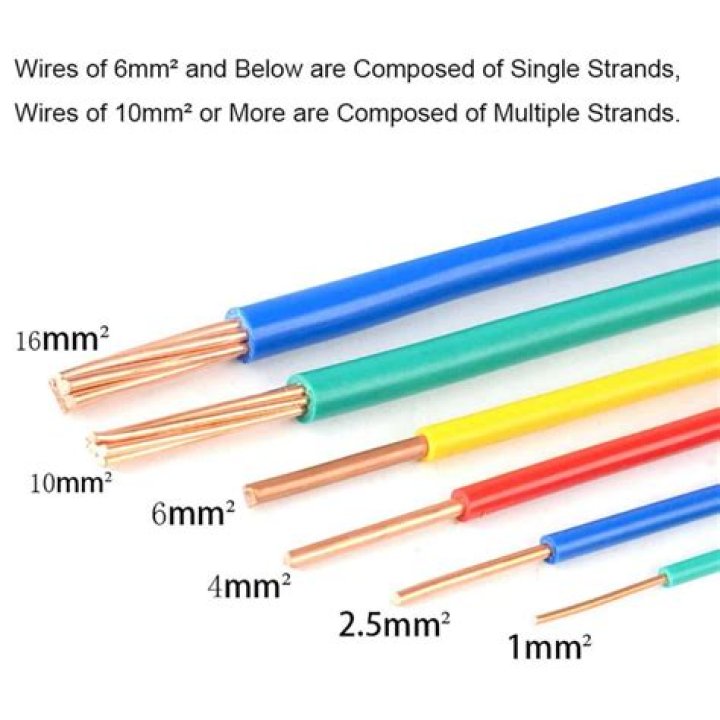

What is 6mm wire used for?

The Best Electrical Twin & Earth Grey – 6mm is a standard house wiring cable with a grey PVC outer sheath. This type of cable is mainly used for sub mains applications.

Can 6mm cable take 40 amps?

40A is too high for 6mm, should be 32A. Also the length of the cable run has a big impact on whether 6mm is a big enough cable..! Its generally ok but can struggle for long runs.

What load can 10mm cable take?

Wikipedia says: A 10mm cable can carry between 40 and 70 amps of current. Amperage is inversely related to voltage, for your 7kw load.

Is 6mm cable OK for a cooker?

The cable should be selected to cater for the Maximum load of the circuit, the MCB is selected to protect the cable. You should NEVER do it the other way round. Plain and simple you need a 10mm cable, 6mm is not correct, it may work but may also burn your house down, you take the risk.

Can I run a 10.5 KW shower on 6mm cable?

It is quite possible, that with a 45A or 50A protective device and favourable cable installation method, 6mm T&E will suffice.

Which wire is good for house wiring?

If what you need the wire for is the wiring of your home, copper wires will be most appropriate for you. Copper is more conductive than aluminum but is also heavier and more expensive.

How do you calculate cable size in a load?

Full Load Current = (KVA · 1000) / (1.732 · Voltage): Full Load Current = (100 · 1000) / (1.732 · 415) = 139 Amp.

Let’s select 3.5 core 95 Sq.mm cable for single run, short circuit capacity = 8.2 KA.
Current capacity of 95 Sq.mm cable is 200 Amp, Total derating current of 70 Sq.mm Cable = 200 · 0.93 = 187 Amp.

How do I calculate wire size?

Divide the voltage running through the cable by your target current. If, for instance, 120 volts will act on the cable, and you want 30 amps to run through it: 120 / 30 = 4. This is your target resistance, measured in ohms. 30,000 x 1.724 x 10^-8 = 0.0005172 ohm sq.

Is 6mm cable OK for a 9.5 kW shower?

You could get away with a 6mm cable for a 9.5kW shower. Rating of cable reference method 1 47A. Rating of shower 41.3A. It really would be best to ask the question before you install any cable.

What is 6mm twin and earth used for?

6mm twin and earth contains brown and blue conductor cores with a bare earth which are protected by a durable PVC sheath. Typically used for supplying internal power to appliances such as electric showers, cooker and induction hobs, 6mm twin and eath cable is flat for easier installation into plaster.

What size MCB for a 10mm cable?

One stated run a 10mm as my cooker is range model, 7.5kw and I want to accommodate any future upgrade. The manufacturer recommends 32amp mcb for cooker.
