How does TCP IP transfer data?

How does TCP handle data sequencing? TCP breaks user data into segments, numbers each segment, places them in the correct sequence , and sends each one in order, waiting for an acknowledgement before sending the next segment.

How does TCP IP transfer data?

How it works. TCP/IP is a two-layered program: the higher layer (TCP) disassembles message content into small “data packets” that are then transmitted over the Internet to be re-assembled by the receiving computer’s TCP back into the message’s original form.

What does TCP handle on the Internet?

TCP includes mechanisms to solve many of the problems that arise from packet-based messaging, such as lost packets, out of order packets, duplicate packets, and corrupted packets. Since TCP is the protocol used most commonly on top of IP, the Internet protocol stack is sometimes referred to as TCP/IP.

How transport layer in TCP IP handles flow control and error control?

The transport layer controls transmission errors and requests retransmissions of packets corrupted by transmission errors. In addition, the flow may be controlled by some mechanism to prevent one host from sending data faster than the destination host can handle.

How does TCP identify a connection?

A TCP data stream is uniquely identified by a group of four numbers. These are the two hosts addresses and the two port numbers. Destination port number. This is the “target” port number on the remote system.

What is the role of TCP IP in data transmission from source to destination?

TCP/IP specifies how data is exchanged over the internet by providing end-to-end communications that identify how it should be broken into packets, addressed, transmitted, routed and received at the destination.

What are the 4 layers of TCP IP?

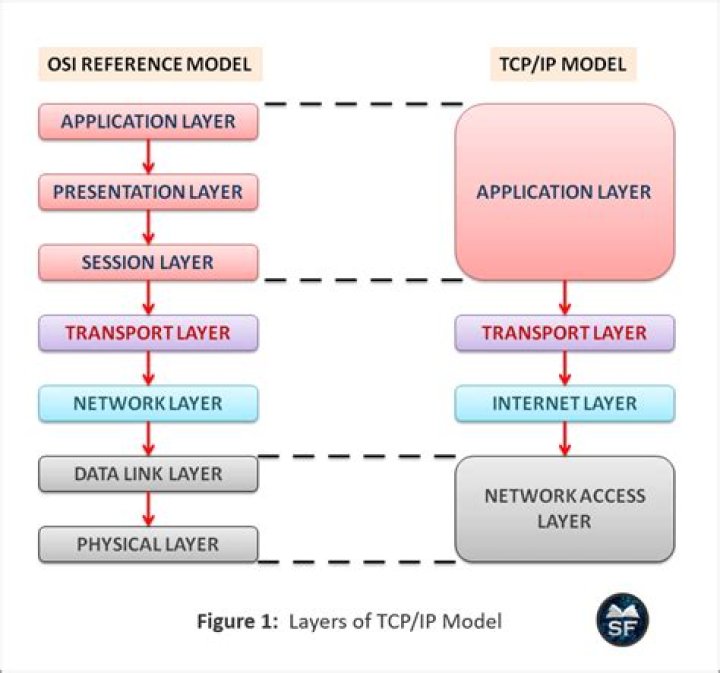

4 The TCP/IP Protocol Stack is made up of four primary layers: the Application, Transport, Network, and Link layers (Diagram 1). Each layer within the TCP/IP protocol suite has a specific function. When the layers of the model are combined and transmitted, communication between systems can occur.

How does TCP achieve reliability in data transmission?

TCP provides reliable stream delivery of data between Internet hosts. TCP achieves this reliability by assigning a sequence number to each octet it transmits and requiring a positive acknowledgment (ACK) from the receiving TCP. If the ACK is not received within the time-out interval, the data is retransmitted.

What does TCP handle on the Internet quizlet?

TCP: Transmission Control Protocol – provides reliable, ordered, and error-checked delivery of a stream of packets on the internet. TCP is tightly linked with IP and usually seen as TCP/IP in writing.

What kind of protocol is TCP?

In terms of the OSI model, TCP is a transport-layer protocol. It provides a connection-oriented data transmission service between applications, that is, a connection is established before data transmission begins. TCP has more error checking that UDP.

How does TCP reassemble out of order packets?

TCP packet reassembly is done using the simplest imaginable mechanism: a counter. Each packet is assigned a sequence number when it’s sent. On the receiving side, the packets are put in order by sequence number. Once they’re all in order, with no gaps, we know the whole file is present.

How does TCP reassemble packets at destination?

TCP is a stream protocol. You can assemble the stream to its intended order by following the sequence numbers of both sides. Every TCP Packet goes to the IP level and can be fragmented there. You can assemble each packet by collecting all of the fragments and following the fragment offset from the header.

How does TCP handle the lost Acknowledgement segment and the corrupted segment?

If the segment is corrupted, then that segment is discarded by the destination TCP and is considered lost. Acknowledgement – TCP has another mechanism called acknowledgement to affirm that the data segments have been delivered.

How does a TCP sender learn that flow control should be activated?

Flow control is accomplished by the receiver sending back a window to the sender. The size of this window, called the receive window, tells the sender how much data to send. Often, when the client is saturated, it might not be able to send back a receive window to the sender to signal it to slow down transmission.

How do you connect TCP?

If you want to test a TCP service on your local computer, use the IP address 127.0.

For Windows 9x/Me:
Click Start, and then click Run.Type telnet and click OK.Click Connect, then click Remote System.Enter the hostname/IP and port number in the appropriate fields.Click Connect.

What is protocol What are the main functions of TCP IP?

The main function of TCP/IP is that it governs how the information is sent and received in the form of packets between source and destination. So in short, we can say that TCP defines the communication in a network and how to send data in the form of packets.

Why TCP is called end-to-end protocol?

Transport Layer is the second layer of the TCP/IP model. It is an end-to-end layer used to deliver messages to a host. It is termed as an end-to-end layer because it provides a point-to-point connection rather than hop-to- hop, between the source host and destination host to deliver the services reliably.
