How address and data bus can be demultiplexed in a microprocessor?

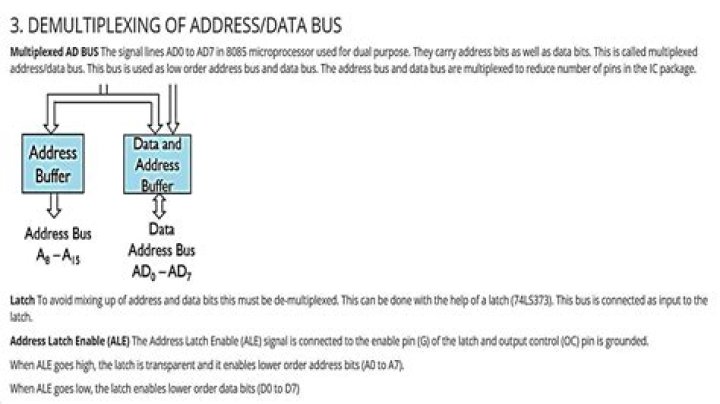

The data bus and the low order address bus on the 8085 microprocessor are multiplexed with each other. This allows 8 pins to be used where 16 would normally be required. The hardware interface is required to demultiplex the bus by latching the low order address in the first T cycle, on the falling edge of ALE.

How address and data bus can be demultiplexed in a microprocessor?

This is done by multiplexing the data and lower 8 bits of the address on AD0-AD7. It means that for some time interval, AD0-AD7 is used as an address bus, and during other time intervals, it is used as a data bus.

How many address and data buses are multiplexed in 8085?

In 8085 eight address and data buses are multiplexed.

Why address and data bus are multiplexed in 8085?

8085: The main reason of multiplexing address and data bus is to reduce the number of pins for address and data and dedicate those pins for other several functions of microprocessor. These multiplexed set of lines used to carry the lower order 8 bit address as well as data bus.

How address and data lines are demultiplexed in 8086?

Address Bus: – The 8086 CPU is has 20-bit address bus, where the AD0-AD15 and A16-A20 are used as the address bus. To demultiplex the address signals from the address/data pins (AD0-AD15) a latch must be used to grab the addresses. So only 8-bit is latched).

Why are address and data buses multiplexed explain the demultiplexing of the buses qualitatively?

The main reason of multiplexing address and data bus is to reduce the number of pins for address and data and dedicate those pins for other several functions of microprocessor. These multiplexed set of lines used to carry the lower order 8 bit address as well as data bus.

What is the need for demultiplexing the address bus with data bus?

As AD7-AD0 lines serve a dual purpose they have to be demultiplexed to get all the information. The address’s high order bits remain on the bus for 3 clock periods. The low order bits remain for only 1 clock period and may be lost if they are not saved externally.

How are data address and control buses involved in data transfer to and from memory?

The address bus carries addressing signals from the processor to memory, I/O (or peripherals), and other addressable devices around the processor. A 64-bit processor has a 64-bit data bus and can communicate 64-bits of data at a time, and whether the data is read or written is determined by the control bus.

What is multiplexed bus in 8085 microprocessor?

(1) Microprocess 8085 has 8-bit data bus and 16-bit address bus. (2) The least significant 8-bits of address bus are passed on the same eight lines as that of data bus i.e. on the signal lines AD7 – AD0. This is known as multiplexing and such bus is known as multiplexed bus.

What is multiplexing and demultiplexing in microprocessor?

Multiplexing is method or technique in which more than one signals are combined into one signal that travels on a medium. demultiplexing is the reverse of multiplexing, in which a multiplexed signal is decomposed in individual signals.

Which of the following microprocessor has a multiplexed address and data bus structure?

In 8085 microprocessor, 8 data lines are provided to transfer the data. These 8 lines are multiplexed and they serve a dual purpose of being used either for addressing or for data transfer. These 8 lines serve as the lower 8 bit of the 16-bit address.

What is the difference between dedicated and multiplexed bus?

A dedicated bus line is permanently authorized either to one function or a physical subgroup of computer components. A multiplexed bus line is assigned too many functions based on some parameters.

Which pin is used for demultiplexing of address and data bus Mcq?

Explanation: the microprocessor 8086 has total of 40 pins out of which 16 pins AD0-AD15 are used to demultiplex address and data. these are low order address bus and are multiplexed with with data.

How is address data demultiplexing done for 8088 processor?

– 8088 has 20 address pins (A0–A19), allowing it to address a maximum of one megabyte of memory (220 = 1M). To demultiplex address signals, a latch must be used to grab the addresses. AD0 to AD7 go to the 74LS373 latch, providing the 8-bit address A0–A7.

Why address and data lines are multiplexed?

The main reason of multiplexing address and data bus is to reduce the number of pins for address and data and dedicate those pins for other several functions of microprocessor. These multiplexed set of lines used to carry the lower order 8 bit address as well as data bus.

Why does we say that the data and address bus for Intel 8086 are multiplexed?

This address space is addressed by means of internal memory “segmentation”. The data bus is multiplexed with the address bus in order to fit all of the control lines into a standard 40-pin dual in-line package.

Why address bus is unidirectional and data bus is bidirectional justify your answer with proper explanation and examples?

Answer: Address bus is Unidirectional because the microprocessor is addressing a specific memory location. No outside devices can not write into Microprocessor. Data bus is Bidirectional because the Microprocessor can read data from memory or write data to the memory.
