What is gradually varying flow?

Explanation: Gradually varied flow is steady non-uniform because the velocity of water remains constant at a specified point, but it changes from one point to another point. The terms steady and uniform are used frequently in engineering, and thus it is important to have a clear understanding of their meanings.

What is gradually varied flow in hydraulics?

Nonuniform open-channel flows for which the changes in depth and velocity are slow enough in the downstream direction that the vertical distribution of fluid pressure from the free surface to the bottom is not much different from hydrostatic are called gradually varied flows.

What is gradually varied flow and rapidly varied flow?

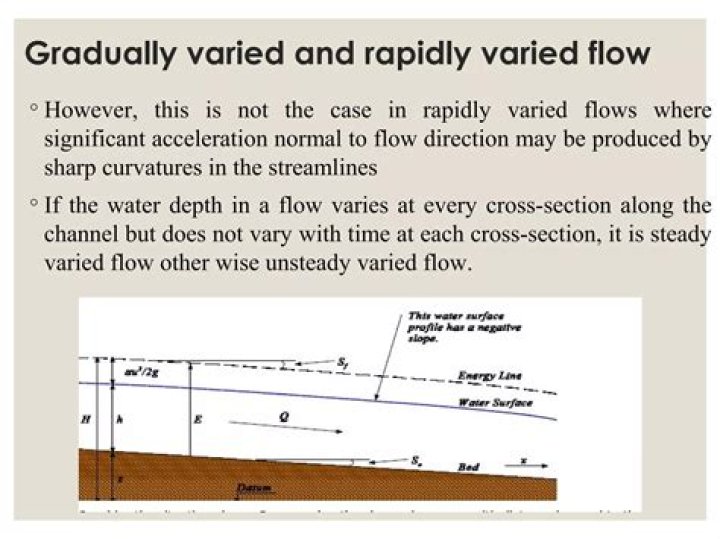

Rapidly Varied Flow (RVF) is a significant change in water depth or velocity of flow over a short distance. This distance can be a few times the water depth. Gradually Varied Flow (GVF) is the flow where the water depth changes gradually over a large distance.

What is the purpose of learning gradually varied flow?

Gradually varied flow (GVF) is a nonuniform flow in natural and man-made canals. The study of GVF is crucial to water resources management as it may not only be categorized as one of the most common flow conditions in an open channel but also play a key role in various hydraulic projects.

How classification of flow profile is done for gradually varied flow?

There are three zones that are typically used to classify gradually varied flow: Zone 1 is where actual flow depth is above both normal depth and critical depth. Zone 2 is where actual flow depth is between normal depth and critical depth. Zone 3 is where actual flow depth is below both normal depth and critical depth.

Can uniform flow be gradually varied?

In Chapter 4, we discussed uniform flowin which the flow depth remains constant with distance. As we discussed in Chapter 1, such flows are called gradually varied flows if the rate of variation of depth with respect to distance is small, and rapidly varied flows if the rate of variation is large.

What causes rapidly varied flow?

If water depth or velocity change abruptly over a short distance and the pressure distribution is not hydrostatic, the water surface profile is characterized as Rapidly Varying Flow (RVF). The occurrence of RVF is usually a local phenomenon.

What is governing equation for gradually varied flow?

General form of the Gradually Varied Flow equation is:

j = Constant equal to 1.49 for English units and 1.00 for SI units.

When the depth of flow changes gradually over a length of the channel then the flow will be termed as?

If the depth of the flow in a channel changes abruptly over a small length of channel is said to be Rapidly Varied Flow. If the Reynolds number Re is less than 500 or 600, then the flow is called laminar flow. If the Reynolds number is more than 2000, then the flow is said to be turbulent.

What are the assumptions for gradually varied flow?

Assumptions of Gradually Varied Flow

The slope of the channel/canal is very small. The vertical depth is considered from the bottom. The pressure distribution is hydrostatic because the curvature of streamlines is small. Manning’s and Chezy’s formula is valid for the computation of velocity.

What is tranquil flow?

Streaming flow or tranquil flow is the flow when depth of flow in an open channel is greater than the critical depth. Krunal said: (Feb 13, 2017) If the depth of water in an open channel is greater than the critical depth, the flow is also called subcritical flow (slow flow).

What are the features application of mild slope flow profiles?

Mild Slope is less than the critical slope and the normal depth is greater than critical depth (yn>yc). The flow is subcritical and controlled downstream. M1 profiles are common where mild slope streams enter a pool. M2 profiles can occur upstream of a sudden enlargement in a channel or where the slope becomes steeper.

What is spatially varied flow?

Flow varies with longitudinal distance. Examples: side-channel spillways, side weirs, channels with permeable boundaries, gutters for conveying storm water runoff, and drop structures in the bottom of channels. Two types of flow: • discharge increases with distance.

Why is hydraulic jump important?

The hydraulic jump is the most commonly used choice of design engineers for energy dissipation below spillways and outlets. A properly designed hydraulic jump can provide for 60-70% energy dissipation of the energy in the basin itself, limiting the damage to structures and the streambed.

Why is open channel flow important?

Open channel flow transports water by gravity with a free surface exposed to the atmosphere.

When so SC and yn YC It is called as?

The bed slope follows the manning’s equation to solve for its normal depth. Explanation: When Yo= Yc, it is called a Critical slope. Critical slopes are denoted by the letter ‘c’. Critical slopes like the other slopes have three depth zones that help to determine the water surface flow.

What are the different types of hydraulic jump?

What Is Hydraulic Jump? Types and Characteristics of Hydraulic Jump
Undular Hydraulic Jump – Froude Number (1 to 3):Weak Jump – Froude Number (3 to 6)Oscillating Hydraulic Jump – Froude Number (6-20)Steady Hydraulic Jump – Froude Number (20 to 80)Strong Hydraulic Jump – Froude Number (greater than 80)

What is channel bottom slope?

Channel-bottom slopes are classified into the following five categories: mild, steep, critical, horizontal (zero slope) and adverse (negative slope). Note that the upper line is the normal-depth line if the channel bottom slope is mild, and the upper line is the critical-depth line if the bottom slope is steep.
