What is a floating ground on a generator?

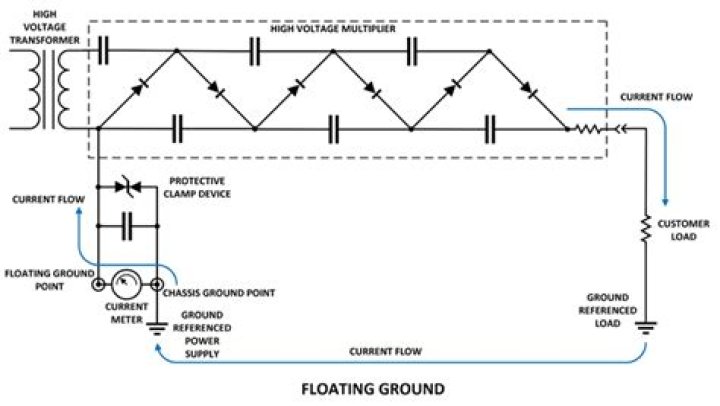

The term floating ground (FG) is used to describe an option that allows for very accurate ground referenced load current measurements to be made. Whatever current flows out of the high voltage output of a supply, must return via the ground referenced return path.

Should you ground a floating neutral generator?

When used as a stand-alone floating neutral generator, at least the frame of the generator must to be bonded to earth ground. This involves putting a rod into the earth and attaching a ground cable from the rod to the generator frame.

What happens if you don’t ground a generator?

If your generator isn’t grounded, that path of least resistance could allow electricity to flow in places it shouldn’t be – which can cause electrocution, spark a fire, or cause other dangerous situations. Grounding provides a backup path of least resistance for electricity to flow.

Do generators have an open ground?

Since nearly all inverter generators have a floating neutral, plugging in a surge protector to one of these generators will indicate “open ground.” However, what they really mean is “open bond.” You can get the same warning from a $5 outlet tester that has 2 amber and 1 red light.

Is it safe to use a floating neutral generator?

Floating Neutrals. A floating neutral is a serious electrical issue that can cause damage to electrical devices in your home and potentially pose a fire or shock hazard. Since electricity flows through a closed circuit, electricity flows to an appliance and then returns to ground via the neutral wire.

Do you need to ground a generator if you use an extension cord?

To restate that: If you plug a heavy-duty extension cord into the generator and connect that to an appliance, power tool, or device, skip the ground rod.

Do I need a ground rod for my portable generator?

If the portable generator is providing electric power to a structure by connection via a transfer switch to a structure (home, office, shop, trailer, or similar) it must be connected to a grounding electrode system, such as a driven ground rod.

Do I need to ground my generator when camping?

Since generators are portable, grounding them each time you set a camp might seem like a daunting task. But… Yes, you need to ground your generator for improved safety and mitigate the risk of electrocution and damage to the connected appliances. Some generators are pre-grounded to the metal frame.

Is a floating ground safe?

Safety. Floating grounds can be dangerous if they are caused by failure to properly ground equipment that was designed to require grounding, because the chassis can be at a very different potential from that of any nearby organisms, who then get an electric shock upon touching it.

Does my generator need a GFCI outlet?

Any new generators must incorporate GFCI protection.

Why is earthing required for a generator?

The neutral point of a generator is usually earthed to facilitate protection of the stator winding and associated system. Earthing also prevents damaging transient overvoltages in the event of an arcing earth fault or ferroresonance.

How long should a grounding rod be for a portable generator?

you need to connect your generator to a ground rod. Ground rods must be pounded into the earth, then connected to the ground lug on the generator via a ground cable. The rod must be at least 8ft into the earth.

Can I ground my generator to my house?

Do NOT separately ground your generator. It should tie in to your house’ ground the same way any appliance would. Using a separate ground at the generator can actually be dangerous if there is a nearby lightning strike or a failure of the local electrical utility’s infrastructure. DON’T downplay the transfer switch.

Do you need a surge protector for a generator?

Though they’re incredibly powerful appliances, generators themselves are not entirely immune to major power surges and spikes. For this reason, it is particularly important to install an in-house surge protector.

Is Champion generator floating neutral?

Most Champion Power Equipment generators have a “floating neutral”, meaning that the neutral circuit is not connected to the frame or to earth ground. In electrical systems where the neutral is bonded to ground, the voltage will be zero and correct polarity will be indicated.
