fire escape window size, check these out | What size should a fire escape window be?

A fire escape window’s openable area should be less than 1100mm from the floor and should open without obstruction to at least 0.33m² and at least 450mm high or 450mm wide. If one of the dimensions is at the 450mm minimum then the other dimension will need to be at least 734mm to achieve 0.33m2.

What size should a fire escape window be?

An opening that is required for means of escape should have a clear unobstructed opening area of 0.33 m² and a minimum width or height of 450mm. For example, if a width of 450 mm is proposed then the height should be at least 733 mm in order to give the area of 0.33 m².

How big is an escape window?

It must be at least 5.7 square feet, 20 inches wide by 24 inches high, with an opening no higher than 44 inches from the floor. In addition, the egress window requirements for basements specify that they be at least 36 inches in height and width, with a fully functioning opening.

What makes a window a fire escape window?

The window should have an unobstructed clear openable area that is at least 0.33m2 and have no clear dimension less than 450mm high and 450mm wide (the route through the window may be at an angle rather than straight through), appropriate escape catches and hinges must be fitted to ensure this clear opening is achieved

Is it law to have a fire escape window?

There is a requirement to provide emergency escape windows to habitable rooms on the ground and first-floor levels of up to two-storey dwellings unless a protected route is provided from those rooms to the final exit.

Can a VELUX window be used for fire escape?

The VELUX top hung window is popular due to the opening style – a top hung window can be opened out completely to offer maximum airflow and daylight, providing uninterrupted panoramic views as well as providing a potential fire escape if required.

What is the minimum width for a fire escape door?

These regulations specify that the width of escape routes and exits depending on the number of persons needing to use them must be regulated accordingly; i.e. for a maximum of 60 persons the width must be no less than 750 mm, for 110 people no less than 850 mm, for 220 people no less than 1050 mm and for more than 220

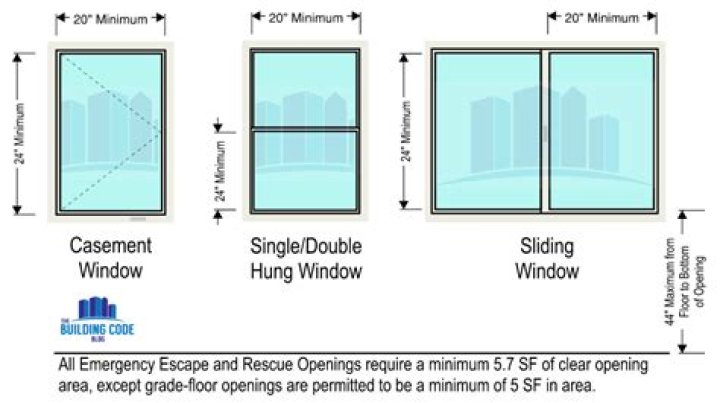

What is the smallest size egress window?

The bottom of the egress window opening can’t exceed 44″ from the finished floor. The minimum opening area of the egress window is 5.7 square feet. The minimum egress window opening height is 24″ high. The minimum egress window opening is 20″ wide.

What is the smallest egress window allowed?

In order to meet baseline requirements, egress windows must meet the following standards:
Minimum width of opening: 20 in.Minimum height of opening: 24 in.Minimum net clear opening: 5.7 sq. ft. (5.0 sq. ft. for ground floor)Recommended sill height above floor: 42 in. *

What is the legal size of a basement window in Ontario?

As a fire safety issue, every basement level that contains a bedroom shall be provided with a properly sized egress window. In addition to other requirements, the window must have a minimum, unobstructed opening of 0.35m² (3.8ft²) with no dimension being less than 380mm (15”).

When did fire escape windows become mandatory?

In July 2000 the Approved Document B (Fire safety) introduced a new concept of Emergency Egress windows to dwellings with an upper floor level of not more than 4.5m.

What is the minimum size for a bedroom window?

The minimum standard bedroom window size is 24 inches by 36 inches. Many older houses still use this dimension.

What is minimum window height to floor?

Minimum Window Sill Heights

The 2018 IRC continues to require the bottom of openings created by operable windows to be a minimum height of 24 inches above the adjacent interior floor when they are more than 6 feet above the grade outside the window.

What rooms need fire escape windows?

Fire Escape – summary of Document Part B

Ground floor windows: Fire escape windows are required on the ground floor in any habitable room (not a kitchen or bathroom) which does not open into a hall that leads directly to an exit door.

Do flats need a fire escape?

Purpose built blocks of flats usually have at least 60 mins fire resistance between the flat and the means of escape, though converted flats may only require 30 minutes of fire resistance or even less.

How low can you install a window?

Rules For Windows

While windows three feet from the floor are considered standard, this isn’t an exact measurement for every window. Individual window installation may vary some, and there’s a degree of flexibility. However, building codes do prohibit windows from being any higher than 44 inches from the floor.

Do you need a fire escape window in every room?

Every habitable room must have a fire egress window, unless there is other means of escape. ie: by direct access to another room with means of escape.

Does a loft conversion need a fire escape window?

Another means of escape is via the windows, all loft conversions require windows through which a person could escape if the stairway does not provide a safe escape route. Building regulations state that window openings must be 450mm or wider to comply with this. These windows should have non-locking fasteners.

What is a MOE window?

The RoofLITE+ MOE pine escape roof window is 3/4 top third opening pitched roof window that allows uninhibited exterior views and an easy escape in the event of an emergency.
