What is the difference between MAC address and EUI-48 address?

The distinction between EUI-48 and MAC-48 identifiers is in name and application only. MAC-48 was used to address hardware interfaces within existing 802-based networking applications; EUI-48 is now used for 802-based networking and is also used to identify other devices and software, for example Bluetooth.

What is the purpose of EUI-64?

EUI-64 (Extended Unique Identifier) is a method we can use to automatically configure IPv6 host addresses. An IPv6 device will use the MAC address of its interface to generate a unique 64-bit interface ID.

Is MAC address the same as Eui?

The distinction between EUI-48 and MAC-48 identifiers is merely nominal: MAC-48 is used for network hardware; EUI-48 is used to identify other devices and software.

How is a MAC-48 converted to a eui-64 and why?

To convert a MAC-48 into an EUI-64, copy the OUI, append the two octets FF-FF and then copy the organization-specified extension identifier. To convert an EUI-48 into an EUI-64, the same process is used, but the sequence inserted is FF-FE. In both cases, the process can be trivially reversed when necessary.

What is EUI 48 address?

EUI-48 and EUI-64 identifiers are most commonly used as globally unique network addresses (sometimes called MAC addresses), as specified in various standards. For example, an EUI- 48 is commonly used as the address of a hardware interface according to IEEE Std 802, historically using the name “MAC-48”.

What address is used for Ethernet broadcasts?

What address is used for Ethernet broadcasts? The address FF:FF:FF:FF:FF:FF is used for Ethernet broadcast traffic.

What is Duid in DHCPv6?

The Client ID in DHCPv6 consists of two parts: a DHCP Unique Identifier (DUID) and an Identity Association Identifier (IAID). The DUID identifies the client system (rather than just an interface, as in DHCPv4), and the IAID identifies the interface on that system.

What RFC 4291?

Description. This standard (RFC) defines the addressing architecture of the IP Version 6 (IPv6) protocol. It includes the IPv6 addressing model, text representations of IPv6 addresses, definition of IPv6 unicast addresses, anycast addresses, and multicast addresses, and an IPv6 node’s required addresses.

Why is the 7th bit flipped?

5 Answers. And RFC 2373 provides the ‘why’ behind flipping the 7th bit: The motivation for inverting the “u” bit when forming the interface identifier is to make it easy for system administrators to hand configure local scope identifiers when hardware tokens are not available.

What is an EUI?

Energy use intensity (EUI) is an indicator of the energy efficiency of a building’s design and/or operations. EUI can be thought of as the miles per gallon rating of the building industry.

How do you use EUI 64?

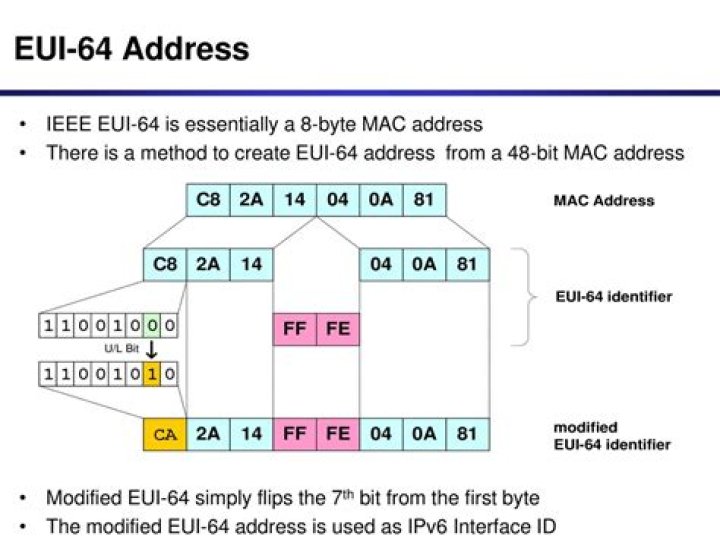

The IPv6 EUI-64 format address is obtained through the 48-bit MAC address. The MAC address is first separated into two 24-bits, with one being OUI (Organizationally Unique Identifier) and the other being NIC specific. The 16-bit 0xFFFE is then inserted between these two 24-bits for the 64-bit EUI address.

What translates IP address into MAC address?

Something called the ARP (Address Resolution Protocol) translates an IP address into a MAC address. The ARP is like a passport that takes data from an IP address through an actual piece of computer hardware.

How is EUI-64 address calculated?

IPv6 EUI-64 calculation
Split the MAC address in two halves (6 hex digits each).Insert FFFE in between the two, making the interface ID.Invert the seventh bit of the interface ID.

What is the main security concern over using EUI-64 formatting?

By encoding MAC addresses, EUI-64 addresses violate layers by exposing hardware identifiers in IPv6 addresses. The hypothetical threat of EUI-64 addresses is well-known, and the adoption of privacy extensions in operating systems (OSes) suggests this vulnerability has been mitigated.

How many bits are there in a eui 48 or MAC address?

The EUI-48 is an identifier that is formed by concatenating the 24-bit OUI with a 24-bit extension identifier that is assigned by the organization that purchased the OUI – the resulting identifier is generally represented as a set of octets separated by dashes (hexadecimal notation) or colons (bit-reversed notation) as

What is IEEE address?

Phone: +1 800 678 4333 (USA and Canada) +1 732 981 0060 (Worldwide) Fax: +1 732 562 6380. IEEE Operations Centers (NJ) 445 and 501 Hoes Lane. Piscataway, NJ 08854-4141 USA. Phone: +1 732 981 0060.

How can I get MAC address?

Where can I buy MAC address for my device? Where can I buy MAC address for my device? The user can buy pre-programmed EEPROMs containing MAC address from Microchip. Refer to
