einthoven triangle, check these out | What is einthoven triangle and law?

What is einthoven triangle and law?

[īnt´ho-venz] if electrocardiograms are taken simultaneously with the three limb leads, at any given instant the potential in lead II is equal to the sum of the potentials in leads I and III.

Why is einthoven’s triangle important?

Einthoven’s triangle can be helpful in the identification in incorrect placement of leads. Incorrect placement of leads can lead to error in the recording, which can ultimately lead to misdiagnosis. If the arm electrodes are reversed, lead I changes polarity, causing lead II and lead III to switch.

How do you calculate einthoven triangle?

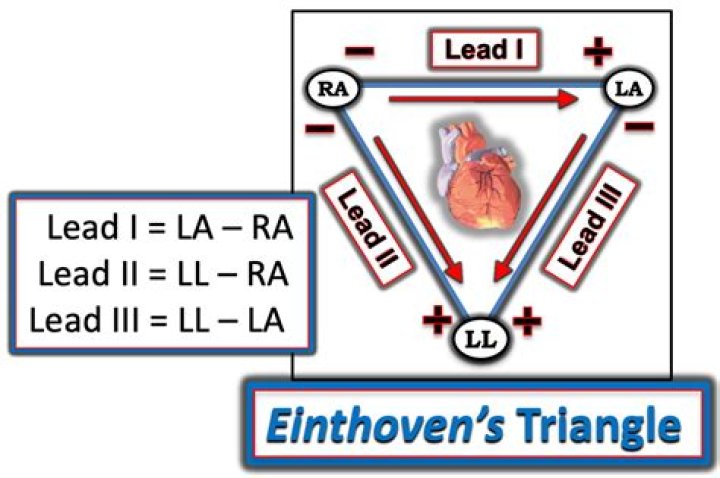

The three limb electrodes, I, II and III form a triangle (Einthoven’s Equilateral Triangle), at the right arm (RA), left arm (LA) and left leg (LL). For example, If you had an ECG in which the Lead I R wave was 7mm tall and the S wave 2mm tall, subtract the S from the R, and you would have 5mm.

What is einthoven equation?

Ein·tho·ven law. (īn’tō-vĕn), in the electrocardiogram the potential of any wave or complex in lead II is equal to the sum of its potentials in leads I and III. Synonym(s): Einthoven equation.

How are bipolar leads derived from einthoven triangle?

Einthoven described a system of three bipolar leads located at the right arm, left arm, and left leg to form a triangle. Lead I represents the potential difference between the right and left arm; an electrical impulse moving from right to left generates a positive ECG deflection in this lead.

What are the 3 bipolar leads?

The bipolar extremity leads are called I, II and III. The unipolar extremity leads are called avR, avL and avF, and the chest leads are called V1–V6.

Is lead 3 positive or negative?

Leads II, III and aVF are leads that have their positive electrode located at the left foot. They are contiguous leads that all look at the inferior wall of the left ventricle. Leads I and aVL are leads that have their positive electrode located on the left arm.

How often should you replace the electrodes?

Electrodes should be changed daily. Electrode placement is integral for accurate results. When an electrode is misplaced by as little as one intercostal space, QRS morphology may change and contribute to misdiagnosis.

Why is lead 2 ECG important?

To assess the cardiac rhythm accurately, a prolonged recording from one lead is used to provide a rhythm strip. Lead II, which usually gives a good view of the P wave, is most commonly used to record the rhythm strip.

Why is aVR negative on an ECG?

The aVR is often neglected lead. It is an unipolar lead facing the right superior surface. As all the depolarisations are going away from lead aVR, all waves are negative in aVR (P, QRS, T) in normal sinus rhythm.

What is the normal paper speed for an ECG tracing?

The ECG paper speed is ordinarily 25 mm/sec. As a result, each 1 mm (small) horizontal box corresponds to 0.04 sec (40 ms), with heavier lines forming larger boxes that include five small boxes and hence represent 0.20 sec (200 ms) intervals.

What is Wilson’s central terminal?

Wilson’s Central Terminal (WCT) is an artificially constructed virtual reference potential for surface electrocardiography (ECG). It is derived by averaging the voltage of the right arm (ΦR), left arm (ΦL), and left leg (ΦF), and is assumed to be steady and with negligible amplitude during the cardiac cycle.

Why is ECG connected to left ankle?

A standard ECG is obtained by attaching three electrodes- one to each wrist and another to the left ankle. This is done in order to minimize any noise detection by the activity of action potentials generated by the skeletal muscles.

Why do they call it a 12 lead ECG?

The 12-lead ECG displays, as the name implies, 12 leads which are derived by means of 10 electrodes. Three of these leads are easy to understand, since they are simply the result of comparing electrical potentials recorded by two electrodes; one electrode is exploring, while the other is a reference electrode.
