How do you connect a new wire to a breaker box?

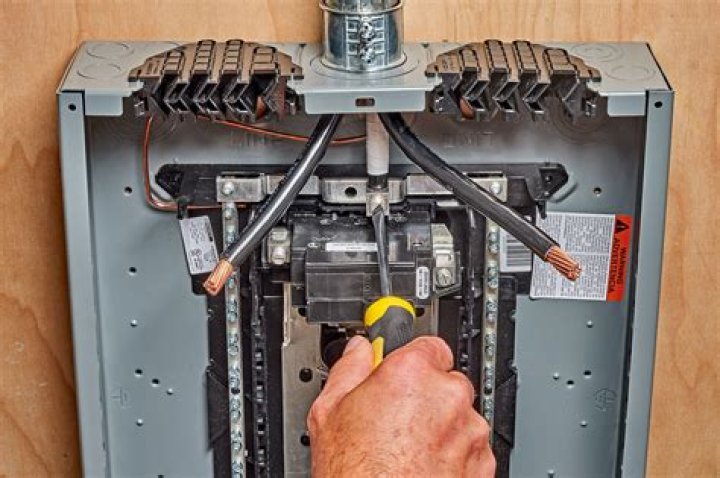

Strip and Clamp
Neatly route the black and white wires to the empty breaker space.Attach the wires to the breaker and then snap it into the box, or install the breaker first and insert the wires last. The neutral (white) from the new cable attaches to the AFCI.

Which wire goes to the breaker?

The white wire is the “neutral” wire, it takes any unused electricity and current and sends it back to the breaker panel. The green wire (or it can sometimes be uncolored) wire is the “ground” wire, it will take electricity back to the breaker panel, then outside to a rod that’s buried in the ground.

How do I run a new circuit from a breaker panel?

Plan the Circuit. To wire a new circuit, you will need an open slot in your breaker box for a new circuit breaker. Install Electrical Boxes. Run Cables to Electrical Boxes. Run Cable to the Breaker Box. Wire the New Circuit Breaker. Replace the Panel Cover and Test. Tips for Wiring Circuit Breakers.

How many breakers can I put in a 100 amp panel?

Typical 100-amp panels have 20 circuits, meaning they can handle 20 full-sized breakers. 20/24 panels can hold 16 full-sized and 4 twin breakers (24 circuits in total). The number of breakers can max out to 30-42, too, depending on the design of your 100-amp pane.

Which wire is positive when both are black?

If the multi-colored wire is black and red, the black wire is the negative wire, while the red one is positive. If both wires are black but one has a white stripe, the striped wire is negative, while the plain black wire is positive. Look in the owner manual to determine which wires are negative in a car.

Where does neutral wire go in breaker box?

The neutral comes from the new cable. You connect the ground wire from the new cable to the neutral bus on a main panel. Place the neutral and ground on separate bus bars if you are installing a breaker on a subpanel.

Does neutral wire have power?

Neutral wire carries the circuit back to the original power source. More specifically, neutral wire brings the circuit to a ground or busbar usually connected at the electrical panel. This gives currents circulation through your electrical system, which allows electricity to be fully utilized.

How many outlets can be on a breaker?

Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.

How many breakers can be in a 200 amp panel?

How many circuit breakers in a 200 amp panel? Most 200-amp breaker panels have 40 to 42 slots of single-pole breakers or 20 slots for double pole breakers. And although a 200 amp panel has many places for circuit breakers, that does not mean you can use all of it.

Can you put neutral and ground wires on same bus?

If the main service panel happens to be the same place that the grounded (neutral) conductor is bonded to the grounding electrode, then there is no problem mixing grounds and neutrals on the same bus bar (as long as there is an appropriate number of conductors terminated under each lug).

Can you double up wires on a breaker?

When it’s NOT a defect: Double tapped wiring is ok if the circuit breaker is designed for two conductors. If a circuit breaker is designed for two conductors, it will say so right on the circuit breaker, and the terminal of the circuit breaker will be designed to hold two conductors in place.

Is it OK to use tandem breakers?

The use of tandem circuit breakers is a perfectly acceptable practice, as long as the panelboard is designed for tandem circuit breakers and they’re installed in locations within the panelboard where they’re allowed.

Can you run 220 on 100 amps?

Yes, you can. As long as it 240v with a neutral and ground. The only downside is other loads. If the new load with the other loads goes over 100a, you will trip the breaker.

Can breakers add up to more than Main?

It is very common for the sum of the branch circuit breakers to add up to more than the main circuit breaker. The engineer that originally designed the building and electrical system understood that the loads were intermittent, and very unlikely to be maxed out at the same time.

How do I know if my electrical panel is overloaded?

Signs of Overloaded Circuits

The most obvious sign of an electrical circuit overload is a breaker tripping and shutting off all the power. Other signs can be less noticeable: Dimming lights, especially if lights dim when you turn on appliances or more lights. Buzzing outlets or switches.
