A check valve is the simplest type of directional control valve used in hydraulic systems. Check valves stop the flow of fluid in one direction and allow free flow in the opposite direction. They are also known as non-return valves.

What is the purpose of using a check valve?

What is a check valve? Check valves are generally installed in pipelines to prevent backflow. A check valve is basically a one-way valve, in which the flow can run freely one way, but if the flow turns the valve will close to protect the piping, other valves, pumps etc.

What are the three types of check valves used in hydraulics?

The three main types of check valves we offer are ball, piston, and stop check valves.

What are the 5 types of check valves?

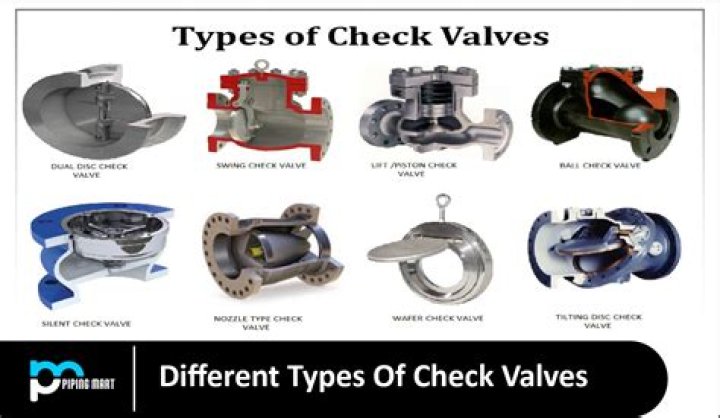

Most common types of Check valves are swing, lift (piston and ball), butterfly, stop and tilting-disk.

What is the difference between NRV and check valve?

A non-return valve lets the fluid flow in one direction. When fluid in the line reverses direction, a check valve prevents backflow by allowing flow in one direction. The check valves are usually designed for a particular pressure.

What is the purpose of a check valve in a hydraulic system?

A check valve is the simplest type of directional control valve used in hydraulic systems. Check valves stop the flow of fluid in one direction and allow free flow in the opposite direction. They are also known as non-return valves.

Is a check valve necessary?

Check valves are an important component of every submersible pump water system. Why are check valves important? First, they allow your water system to maintain pressure when the pump shuts off. They also prevent backspin, up thrust and help minimize water hammer (more on this later!).

What is the symbol for a check valve?

An arrow or the symbol for any type of check valve (a fluidic/pneumatic logic symbol) on the outside of the body indicates flow direction. In this image, flow is from top to bottom. Some check valves will have both the logic symbol and an arrow to indicate correct orientation.

What is swing type check valve?

A swing check valve is a simple device designed for the one-way flow of a liquid or gas. It has a disc that swings on a hinge, opening to allow fluid to flow in, then closing to prevent backflow. Swing check valves are designed in a variety of sizes with different features to suit specific application types.

How does a hydraulic pilot operated check valve work?

Pilot operated check valves work by allowing free flow from the inlet port through the outlet port. Supplying a pilot pressure to the pilot port allows flow in the opposite direction. When the air flow stops, the poppet check the trapped air.

What is check valve types?

Check valves are available in the following designs:

Swing Check Valves. Tilting Disk Check Valves. Wafer Check Valves. Disk Check Valves. Piston Check Valves.

What is the best type of check valve?

Lift Check Valves

They have no external moving parts and are known to be economical and reliable. Over time, these types of valves can have high energy costs because the disc remains in the flow stream during operation. Silent check valves are known for their quiet closure.

Is check valve A ball valve?

A ball check valve is a check valve in which the closing member, the movable part to block the flow, is a ball. In some ball check valves, the ball is spring-loaded to help keep it shut. For those designs without a spring, reverse flow is required to move the ball toward the seat and create a seal.

Where do you fit a check valve?

The valve must be installed to the cold supply as close to the tap as possible. Installing the device as close as possible to the risk is again essential when locating the device in fluid category 3 applications. An example is on the connection to an unvented hot water cylinder.

Is a check valve the same as a one-way valve?

A check valve is a device that only allows the flow of fluids in one direction. They have two ports, one as an inlet for the media and one as the output for the media. Since they only allow media flow in one direction, they are commonly referred to as ‘one way valves’ or ‘non return valves.

What is Wafer check valve?

Wafer check valves are in-line piping valves used to control fluid flow direction and reduce or fully prevent possible back flow within plumbing systems. Wafer check valves are also known as clack valves, reflux valves, non return valves and one way valves.

Can you adjust a check valve?

If supplied with a lever or weight, the check valve can be adjusted to counteract slamming and/ or surge. Adjustment may be accomplished by adjusting the tension on the spring, or the position, and/or amount, of weight on the valve.

How do I know if my hydraulic valve is bad?

3 Signs Of Pressure Relief Valve Failure
System Cannot Reach Pressure. If your system isn’t reaching pressure, this could be a sign of pressure relief valve failure. System is Over Maximum Pressure. Pressure Relief Valve is Leaking or Has No Pressure.
