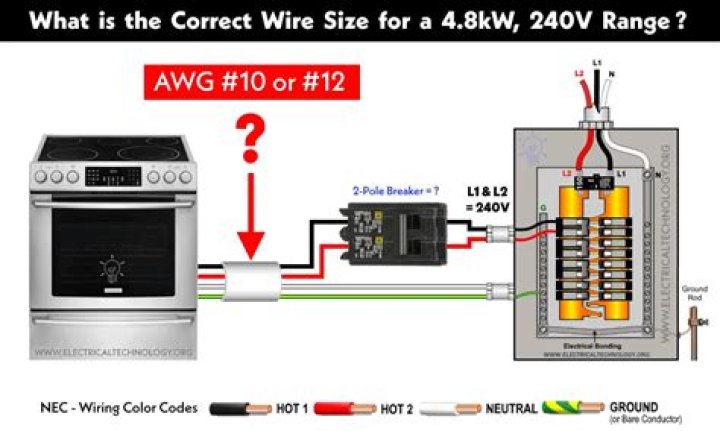

Can you use 10 gauge wire for a stove?

A 10/3 wire is the appropriate wire to use for a standard electric stove that runs on a 240-volt circuit.

Can you use 10 gauge wire for a stove?

A 30 amp breaker for a electric stove with the appropriate wire size will not cause any faulty circuit—that is, as long as the stove’s amp requirement fits in your installed circuit. The recommended wire size for a 30-amp circuit breaker is 10 gauge wire.

What can 10 3 wire be used for?

10/3 cable contains three 10-gauge conducting wires and one 10-gauge ground wire. It is most-often used to wire 220-volt outlets (four-pronged outlets in the US). Commonly, 10/3 is used to power clothes dryers, air conditioners, and small kitchen ranges. 10/3 wire can serve appliances that draw up to 30 amps.

What size wire is needed for a stove?

The power demand of ranges varies depending on the rating of the appliance, but in most cases, a 50-amp 240-volt circuit is required, wired with #6-gauge wire. Smaller ranges may require a 40-amp circuit, wired with #8-gauge wire.

Can I use 10 gauge wire on a 40 amp breaker?

“Twelve-gauge wire is good for 20 amps, 10-gauge wire is good for 30 amps, 8-gauge is good for 40 amps, and 6-gauge is good for 55 amps,” and “The circuit breaker or fuse is always sized to protect the conductor [wire].”

Is 10 3 wire heavy enough for a stove?

This chart indicates that for a common household electric stove/oven at 240V, up to 30A, a 10/3 wire is proper.

What size wire do I need for a 220 stove?

Range Electric (posted 2010) – 220 – 240 volt, 60 hertz, properly grounded circuit with 40 amp breaker or fuse protection with #8 gauge wire. With a 50 amp breaker, # 6 gauge wire is required.

Is 10 3 wire heavy enough for a dryer?

10/3 is FINE for the dryer. 12/2 for the washer. Show activity on this post. Typically a 220v/30 amp Dryer circuit would utilize 10/3 with ground.

How far can you run 10-gauge wire for 30 amps?

10-gauge wire can accommodate a 30-amp breaker until you reach 150 feet. At 150 feet or more, you should get 8AWG or 6AWG wire.

Can I use 10 3 wire for a dryer?

Absolutely. Assuming that the dryer is a standard issue, it will draw a maximum of about 23 amps. The 30 amp circuit that a 10–3 wire would feed would be sufficient for that load. bx 10–3 should be perfect.

What is a 10 3 wire?

10/3 is a 10gauge hot1/hot2/neutral (the /3 part) and a green or bare copper ground wire. This 3 wire is typically used for a dedicated 220 amp circuit, again at 30 amps, like for an electric dryer.

What type of plug is used for a stove?

When it comes to electricity usage, an electric stove is a powerhouse. Consequently, you can’t just plug them into the standard 110-volt outlets that are most common in the United States—most stoves require a special 220-volt outlet instead.

How many amps does a stove use?

Most electric ranges draw from 30 to 50 amps of current, depending on the size and the features. You can determine the current draw for your stove by checking the label on the back, which is next to the power terminals or the place where the cord exits the appliance.

Can you run 240 wire 10 gauge?

In certain situations yes. 10 gauge copper as a rule is a wire for general branch circuits rated at a maximum of 30 amps. These circuits are like clothes dryers, RV outlets, commercial lighting, ect .

How far can you run 10 gauge wire on a 20 amp circuit?

How Far Can You Run 10 Gauge Wire? You can run a 10 gauge wire up to 85 feet on a 20 amp circuit. If you opt to use this type of wire on a 15 amp circuit, it can run up to 115 feet. After these distances, the circuit will go over the recommended 3% voltage drop.

Can you put 10 gauge wire on a 50 amp breaker?

A 10 gauge wire can handle 50 amps bare copper like a power line but most insulated wire is rated by NEC at 35 amps max with a 30 amp circuit the normal use for 10 gauge. 10 AWG coper wire is rated for 30 Amps in most installations. 50 Amps calls for 6 AWG or 8 AWG high temperature cable.

What wire do I use for 40 amps?

For a maximum of 40 amps, you’ll need a wire gauge of 8. Many electric cooking appliances require 40 amps such as electric cooktops.

What size wire do I need for 100 amp service?

When it comes to the lines connecting master and secondary panels, where the line will carry as much as a full 100 amps, use a 2-gauge non-metallic sheathed electrical cable. The cable must contain one or two hot wires depending on your needs, one neutral wire, and one ground wire. Each wire should be 2-gauge in size.

What is stove wire?

Typically stoves require a dedicated 50-amp, 240-volt breaker. The wire supplying power from the breaker panel to your range outlet will usually be a 6/3 Romex cable (Blk wire- hot, Red wire – hot, White wire – neutral, Bare copper wire – ground). New stoves do not come with a power cord.
