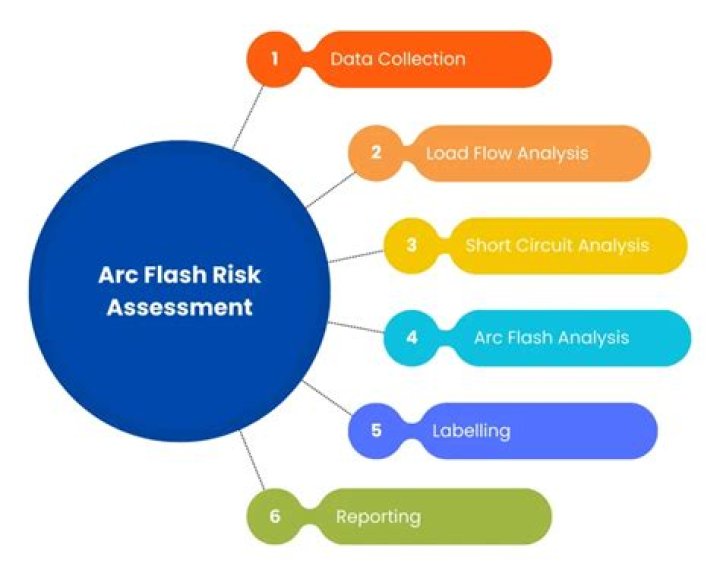

How do you perform an arc flash risk assessment?

NFPA 70E: Three Steps to Completing a Risk Assessment

NFPA 70E states that the goal of an arc flash risk assessment is a three-step process: Identify a Hazard. Estimate the Likelihood of Occurrence and the Potential Severity of Injury. Determine If Additional Protective Measures are Needed.

What are the three main factors in an arc flash risk assessment?

Three factors determine the severity of an arc flash injury: Proximity of the worker to the hazard , Temperature and Time for the circuit to break. Because of the violent nature of an arc flash exposure, when an employee is injured, the injury can be very serious and can even result in death.

What is an arc flash hazard assessment?

An Arc-Flash Hazard Assessment determines the degree to which a worker may be exposed to potential Arc-Flash Hazards and what kind of Personal Protective Equipment (PPE) is required to protect workers from the heat, light, and blast associated with an Arc-Flash accident.

How do you structure a risk assessment?

The Health and Safety Executive’s Five steps to risk assessment.Step 1: Identify the hazards.Step 2: Decide who might be harmed and how.Step 3: Evaluate the risks and decide on precautions.Step 4: Record your findings and implement them.Step 5: Review your risk assessment and update if. necessary.

Who should perform a shock and flash hazard assessment?

To determine shock hazard, a licensed electrical engineer will perform either a calculation or use Table 130.2(C) of NFPA 70E. NFPA Definition: A Flash Hazard Analysis shall be done in order to protect personnel from the possibility of being injured by an arc flash.

What injuries are associated with arc flash?

Arc Flash injuries – the blast

The risks of injury related to the blast include being injured by flying debris which could lead to concussion or even brain injuries, broken bones, and hearing loss or ruptured ear drums from the sound.

How do you choose arc flash PPE?

If there is a sticker on the equipment from an arc flash analysis, then the sticker will tell you the incident energy or the minimum level of PPE required. If there is no sticker, then you must reference NFPA 70E Table 130.7(C)(15)(A), Tables a & b.

How often is arc flash testing required?

An arc flash risk assessment should be reviewed every five years, or any time modifications are made to the facility that can effect the outcome of the study. Major or sometimes minor variations such as fuse type or breaker setting adjustments can have a huge impact on personal safety.

What are arc flash requirements?

Employees must follow the requirements of the Arc Flash Hazard label by wearing the proper personal protective equipment (PPE), use of insulated tools and other safety related precautions. This includes not working on or near the circuit unless you are a “qualified” worker.

What are the 5 types of risk assessment?

Different approaches to risk assessments can even be used within a single assessment.
Qualitative Risk Assessments.Quantitative Risk Assessments.Generic Risk Assessments.Site-Specific Risk Assessments.Dynamic Risk Assessments.Remember.

What are the 5 principles of risk assessment?

What are the five steps to risk assessment?
Step 1: Identify hazards, i.e. anything that may cause harm. Step 2: Decide who may be harmed, and how. Step 3: Assess the risks and take action. Step 4: Make a record of the findings. Step 5: Review the risk assessment.

What is risk assessment template?

What is a Risk Assessment Template? A risk assessment template is a tool used to identify and control risks in the workplace. It involves a systematic examination of a workplace to identify hazards, assess injury severity and likelihood, and implement control measures to reduce risks.

How do you find arc flash boundaries?

The arc flash boundary is calculated to 1.2 calories/cm2 of incident energy. That’s the distance where a worker without appropriate PPE would receive second-degree burns. Sometimes this boundary is the furthest one from the exposed equipment, other times the limited approach boundary is the furthest out.

What is Category 2 arc flash?

PPE Category 2: Minimum Arc Rating 8 cal/cm

In PPE CAT 2, workers need the following clothing: Required Clothing: Arc Rated Long Sleeve Shirt and Pants or Arc Rated Coverall with minimum arc rating of 8 cal/cm. 2.

How do you find arcing distance?

How do you calculate arc length without the angle?
Divide the chord length by double the radius.Find the inverse sine of the result (in radians).Double the result of the inverse sine to get the central angle in radians.Once you have the central angle in radians, multiply it by the radius to get the arc length.
