Beam design is carried out according to principles set out in Codes of Practice. Typically, the maximum deflection is limited to the beam’s span length divided by 250. Hence, a 5m span beam can deflect as much as 20mm without adverse effect.

What is an allowable deflection?

Deflection is the bending or “sag” caused by loading. Allowable deflection is generally expressed as a fraction of the span, in inches. All structural members will deflect or flex under load. For example, the allowable deflection of a 12ft span floor joist with plaster (L/360) is 0.4″ (12ft divided by 360).

What are the permissible limits for deflection?

The deflection including the effects of temperature, creep and shrinkage occurring after the erection of partitions and the application of finishes should not normally exceed span / 350 or 20 mm whichever is less.

Is 800 allowable deflection?

As per clause 3.13. 1.2 of IS 800-1984: The deflection of a member shall not be such as to impair the strength or efficiency of the structure and lead to damage to finishing. Generally, the maximum deflection for a beam shall not exceed L/325 of the span.

How do you calculate allowable deflection?

This means that to calculate the deflection in a beam which spans 6,000 mm, divide 6,000 by 300. So a span of 6,000 mm has a maximum allowable deflection of 20 mm.

What is the maximum allowable deflection for floor joists?

Maximum deflection limits are set by building codes. They are expressed as a fraction; clear span in inches (L) over a given number. For example: a floor joist appropriately selected to span 10 feet with an L/360 limit will deflect no more than 120″/360 = 1/3 inches under maximum design loads.

What is the maximum allowable deflection when handling wood trusses?

Generally, for roof trusses, the deflection in inches due to live load cannot exceed the span in inches divided by 240 (L/240) and due to total load L/180. For floor trusses, the deflection in inches due to live load cannot exceed the span in inches divided by 360 (L/360) and due to total load L/240.

Where is the maximum deflection in a beam?

Maximum deflection occurs at the farthest point from the support. In the case of two support points it will be at the midpoint between them regardless of the location of the point loads. Where there are more than two supports then it will be at a midpoint between the section which has the most load.

What is the minimum deflection criteria?

Deflection criteria are a set of deflection limits that apply to floor and roof members and are defined by building codes. These deflection limits are intended to ensure user comfort and to prevent excessive cracking of finish materials.

Is 800 the maximum deflection in beam should not exceed?

(iii) Generally, the maximum deflection for a beam shall not exceed 1/325 of the span. This limit may be exceeded in cases where greater deflection would not impair the strength or efficiency of the structure or lead to damage to finishing.

What is deflection limit L 360?

The L/360 standard means that the floor should not deflect more than the “span” divided by 360. If the span of the joists is 10 feet (between supports), then the deflection should not be more than 1/3″ between the center and the end. Frequently, there is misunderstanding regarding deflection between joists.

How is L 360 deflection calculated?

The full equation is: the maximum allowable deflection (in inches) = the unsupported span (in inches) of a beam divided by 360 inches. So as an example: if a beam is 12 feet long, the maximum allowable design deflection is simply 144/360 or . 4 inches.

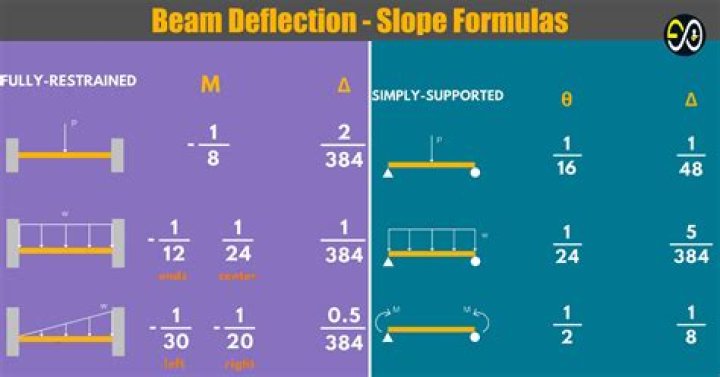

How do you calculate the maximum deflection of a cantilever beam?

Generally, deflection can be calculated by taking the double integral of the Bending Moment Equation, M(x) divided by EI (Young’s Modulus x Moment of Inertia).

Why is Max deflection important?

Deflection is a crucial consideration in the design of a structure and failure to apply due attention to it can be catastrophic. Different types of load can cause deflections. These include point loads, uniformly distributed loads, wind loads, shear loads as well as ground pressure and earthquakes, to name but a few.

What is the maximum permissible deflection limit for a cantilever beam?

The deflection limit for cantilever beams set by most design codes is L/180 for live load and L/90 for combined dead & live load. The maximum span depends on the material of the beam (wood, steel or concrete).

How much deflection in a floor is acceptable?

The code section on allowable deflection of structural members indicates that the deflection shall not be greater than L/360 for floors and plastered construction; L/180 for rafters having slopes greater than 3/12 with no finished ceiling attached to rafters; and L/240 for all other structural members.

What is the maximum allowable deflection for a 20 foot beam considering all 360?

And since it is small I will leave the source for where it is found here[1] . The L stands for length. So if you have a beam 20ft long, the allowable deflection limit is (20ftx12in/ft) /240 = 1 inch if using L/240. Or, (20ftx12in/ft)/360 = 0.67 inch if using L/360.

What is the allowable deflection per code of an 18 ft long floor joist used in residential construction?

The code requires that this deflection be limited to L/360, where L is the length of the unsupported span. This means that for a floor structure that spans 18 feet (not uncommon in newer homes with open floor plans), the maximum allowable deflection is 0.6 inches.
