How many layers of drywall do I need for 1 hour fire rating?

Typically one layer of Type X drywall promises 45 minutes to one hour of fire protection for the building constructed with this type of material.

What constitutes a 1 hour fire wall?

According to the Engineered Wood Association, a one-hour rating indicates that a wall constructed in a manner similar to the one tested will contain flames and high temperatures, and support its full load, for at least one hour after the fire begins.

How do you build a fire rated wall?

One of the most effective ways to add fire resistance to the exterior surface of a wall is to replace relatively flammable exterior wall treatments, such as vinyl or wood siding, with fire-resistant materials, such as brick, concrete or stucco.

How thick is a 1 hour fire rated wall?

The most common fire rated drywall is known as type X, which is 5/8 inches thick, placed on each side of 2 by 4 or 2 by 6 inch wood studs and has a minimum fire rating of 1 hour.

Does 1/2 drywall have a fire rating?

The fire rating for the 1/2-inch drywall used throughout the rest of the home is 30 minutes. As added benefits, Type X absorbs sound slightly better and is slightly stronger than conventional 3/8-inch or 1/2-inch drywall.

What is a 0 hour fire rated wall?

In certain types of buildings Fire Separations are considered to have wall Fire Separations with 0 hour fire rating. These walls are considered smoke separations to prevent smoke from migrating throughout the building.

What are the 3 main classifications of fire rated walls?

Type 1: Fire-resistive: High-rise buildings made of concrete and protected steel. Type 2: Non-combustible: Newer buildings with tilt slab or reinforced masonry walls and a metal roof. Type 3: Ordinary: New or old buildings with non-combustible walls but a wood-framed roof.

What is 2-hour fire rated wall?

2. Gypsum Board: Two (2) hour rated walls have two (2) layers of 5/8″ Type ‘X’ gypsum wallboard panels on each side of the steel studs. The “Fire Tape” product would be used as an alternative to conventional joint tape in specific systems when: 3.

How do you build a 2 hour fire wall?

Double the number of Type X sheets on the wall for a simple system installed over fire-resistant fiberglass insulation; each sheet of 5/8-inch Type X drywall is rated to resist fire for one hour, so two layers will produce a two-hour firewall. Put two sheets together on one side or use one sheet on each side of a wall.

What is a 4 hour fire rated wall?

Single layer Durasteel fire walls are constructed using a steel channel framework and provide 240 minutes integrity rating for fire attack from either side, meaning that a fully developed fire on one side of the wall (fire side) will not physically pass through the wall to the other side (non-fire side) for a period of

What plasterboard gives 1 hour fire protection?

Gyproc FireLine 12.5mm is a fire resistant plasterboard that withstands fire for longer to allow for safe evacuation.

Is steel 1 hour fire rated?

The steel plates are protected with 0.047” intumescent coating to provide 1-hour fire-resistance, equivalent intumescent application to the tested UL assembly.

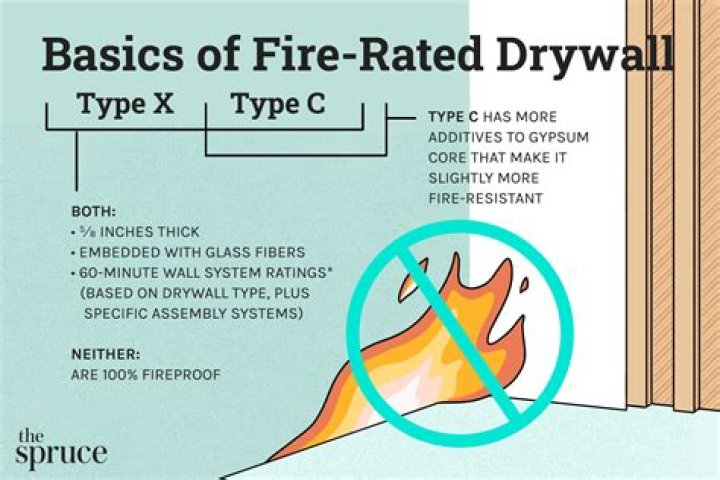

What fire rating is 5/8 drywall?

The 5/8-inch, “fire-code” drywall (called Type X) increases a wall’s fire rating to a minimum of 1 hour, from the 30-minute rating for standard ½-inch drywall. And it’s not just thickness that makes the difference. Type X has a denser core and contains glass fibers that keep it from crumbling in the heat.

What is the fire rating of 3/4 drywall?

USG Sheetrock® Brand Ultracode® Core Gypsum Panels can achieve a two-hour fire rating with single-layer construction when used with mineral wool insulation in steel framed walls.

How can you tell if a drywall is fire rated?

Find other printing on the back of the drywall: some drywall products such as CertainTeed’s GlasRoc sheathing and Diamondback don’t use end-tapes but have text printed across the whole board surface, indicating the manufacturer, product, and other data such as fire-rating.

Is durock fireproof?

Being a most efficient construction material, durock is a fireproof, non-combustible, water and slip-resistant material. Therefore, durock is mainly used to assist other crucial building components such as tiles, steel or wood framing, etc.
