What is the slope of 1/8 inch per foot?

The slope of 1/8 inch per foot is a slope of 1 in 96. Convert the 1/8 inch to decimal it’s easier to work with. Keeping apples to apples and oranges to oranges we’ll express one foot as 12 inches. So, it’s rounded to a 1% grade.

What percentage is 1/8 inch per foot?

Now we can see that our fraction is 12.5/100, which means that 1/8 as a percentage is 12.5%.

What is a 1/8 slope?

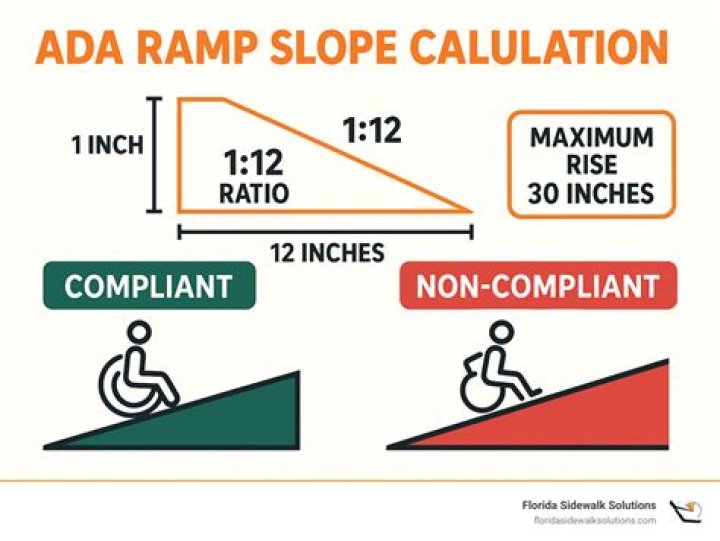

If the distance is greater than 2 inches, the ramp is too steep. For example, if the distance is 3 inches, then the slope is 1:8 (3:24 = 1:8 which is a steeper slope than 1:12).

Can you have too much slope in drain pipe?

The ideal slope of any drain line is ¼ inch per foot of pipe. In other words, for every foot the pipe travels horizontally, it should be dropping ¼ inch vertically. Many drains either have too little slope or too much slope. That’s right, it is possible to have too much slope in your drain lines.

How much is a 1% slope?

1% as a decimal is 0.01 and hence the slope is 0.01. That means for a run of pipe of a certain length the rise must be 0.01 times the length. Thus for you example, since the length of the run is 80 feet which is 80 × 12 = 960 inches the rise must be 0.01 × 960 = 9.6 inches.

What is 1/8 per foot as a?

1/8 inch is 0.125.

How do you work out 1/8 as a percentage?

Therefore, the fraction 18 is equivalent to 12.5% .

How do you make 1/8 into a percent?

1 Answer
Divide -1 by 8 to convert −18 to a decimal. −1÷8=−0.125.Multiply −18 by 100 to get 0.125 as a percentage. −18×100=−12.5.−18 is −0.125 in decimal form and −12.5% in percentage form.

What is a 1/10 slope?

In geometry, 1 in 10 means for every ten units of horizontal distance crosses there is 1 unit of vertical drop or rise. The angle of tan is used to measure this value of slope. Hence, 6 degrees is the angle of 1 in 10 slope.

How do you calculate slope?

Pick two points on the line and determine their coordinates. Determine the difference in y-coordinates of these two points (rise). Determine the difference in x-coordinates for these two points (run). Divide the difference in y-coordinates by the difference in x-coordinates (rise/run or slope).

How steep is a 30 percent grade?

30 degrees is equivalent to a 58% grade which is another way to describe the magnitude of a slope.

What is the minimum slope for water flow?

The minimum slope for grassy swales and drainage ways is 1 percent to prevent standing water and muddy conditions. Slopes for walkways will not exceed 5 percent, unless unavoidable. Slopes greater than 5 percent may make the construction of special ramps for the disabled necessary. The maximum cross-slope is 2 percent.

Can a shower and toilet share the same drain?

Originally Answered: Can a toilet and a shower share the same drain? Most of the time, yes. Some systems have what is called a grey water system that collects drained water from anything but a toilet. The toilet output is referred to as black water.

Will a 1% slope drain?

All of your drain pipe (with one exception) must slope slightly downhill. Usually 1/8″ per foot is plenty for drainage, this is the same as the commonly recommended 1% slope.

How much slope does a toilet drain need?

The plumbing code requires drain pipe to be sloped at a minimum of 1/2 inch per foot and a maximum of three inches per foot or vertical. A slope of less than a quarter-inch per foot will cause a lot of drain clogs and a slope of more than three inches will allow the water to drain.
